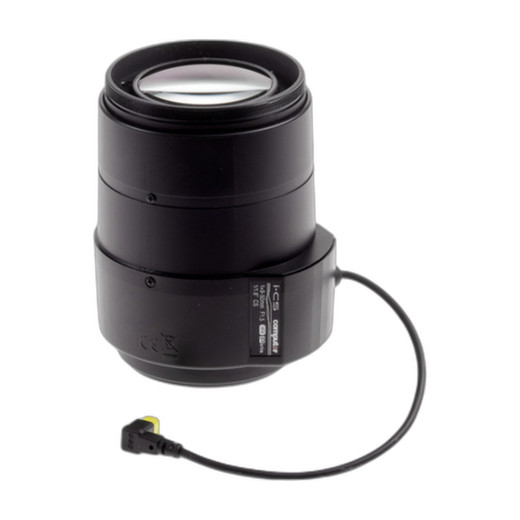

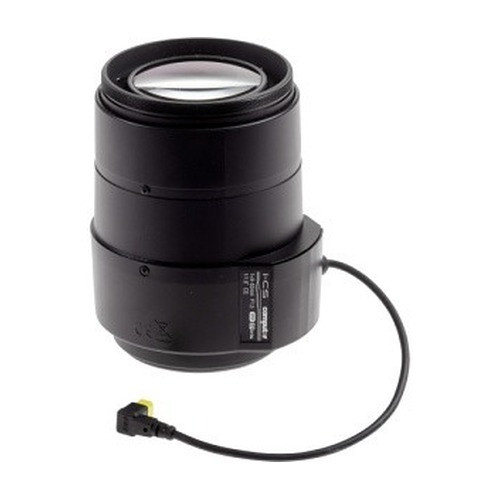

Axis 01727-001 i-CS 9-50mm F1.5 8MP Varifocal Lens

Axis 01727-001 i-CS 9-50mm F1.5 8MP Varifocal Lens

The Axis 01727-001 is a professional varifocal lens designed for Axis network cameras requiring flexible focal length adjustment without sacrificing optical quality. The intelligent CS-mount (i-CS) interface enables remote focus and zoom control, eliminating manual field calibration and reducing installation labor on distributed surveillance systems. The 9-50mm focal range delivers approximately 5.6x optical zoom, covering scenes from broad contextual overviews to detailed close-up monitoring in a single lens.

Key Features

• 9-50mm Varifocal Range (5.6x Optical Zoom) – Adaptable focal length allows a single lens to frame wide facility overviews or zoom to identify faces and details without repositioning the camera. Reduces the need to deploy multiple fixed-focal-length lenses across a site.
• 8MP Resolution Support – Delivers 3264 × 2448 pixel imagery with sufficient pixel density for forensic-grade identification and detail extraction. Balances meaningful resolution gain over 5MP sensors while keeping bandwidth and storage costs reasonable on 24/7 recording systems.
• F1.5 Maximum Aperture – Fast aperture transmits significantly more light than standard F2.8 lenses, improving low-light sensitivity and reducing noise in facilities with inconsistent or dim lighting. Maintains performance depth-of-field across the entire 9-50mm zoom range.
• i-CS Remote Control (Automatic Focus) – Network-controllable focus adjustment compensates for mechanical lens characteristics at every zoom position, eliminating the need for on-site manual focus tuning. Focus changes are applied from the network interface or camera firmware, minimizing field service trips.
• CS-Mount Interface – Industry-standard mechanical mount compatible with Axis camera bodies designed for varifocal optics. Verify camera compatibility against the i-CS mount specification before ordering.
• Fixed Back Focal Distance – Consistent optical design allows installation in standard camera housings without custom adapters or spacing adjustments.

When to Choose This Lens

The 01727-001 suits fixed-position installations where the camera cannot be relocated but scene composition flexibility is essential. Typical deployments include:

• Retail environments – Frame both the store floor and customer service counters from a single camera position.
• Manufacturing and warehouse floors – Monitor loading bays and merchandise rows without multiple lens changes or camera repositioning.
• Educational facilities – Cover hallways, exits, and classroom entry points from fixed ceiling or wall positions.
• Corporate campuses and parking – Provide both wide environmental context and detailed vehicle/personnel identification.

When to Choose a Different Model

If your installation requires motorized zoom and pan via a single camera head, consider a PTZ camera with built-in motor-driven optics instead of a varifocal lens. If the target scene demands ultra-wide coverage (beyond 9mm), evaluate a fixed wide-angle lens or multi-sensor panoramic camera. If you need infrared illumination integrated into the optics assembly, note that the 01727-001 is a passive optical component and requires an IR light source or camera with native IR capability.

Integration & Compatibility

The 01727-001 requires an Axis network camera body with an i-CS lens mount. Confirm that your selected camera model explicitly supports varifocal i-CS lenses—not all Axis camera bodies are compatible. The lens is passive; it relies on the camera's image sensor, processor, and network connectivity to deliver video to your network video recorder or management platform. Verify compatibility with your VMS software before deploying to production.

Optical Considerations

At the 9mm wide end, expect a broader field of view suitable for contextual monitoring. At 50mm, the narrower field of view increases magnification for detailed observation but reduces the coverage area per camera. The F1.5 aperture delivers superior light transmission compared to F2.8 alternatives, a measurable advantage in 24-hour surveillance of dimly lit spaces. For sites with extreme backlighting or high-contrast scenes, coordinate lens selection with the camera's dynamic range capabilities (WDR or Forensic WDR).

Frequently Asked Questions

Q: Is the Axis 01727-001 compatible with all Axis camera models?

A: No. The 01727-001 is designed for Axis cameras with an i-CS (intelligent CS-mount) lens mount. Verify your camera model explicitly supports i-CS varifocal lenses before purchasing. Fixed CS-mount cameras may not support remote focus control.

Q: What is the difference between the 9-50mm focal range and a fixed lens?

A: The 9-50mm range provides approximately 5.6x optical zoom within a single lens, allowing you to adjust field of view without removing or replacing optics. A fixed lens covers only one focal length; varifocal provides flexibility for scenes where framing must adapt after installation.

Q: Does the F1.5 aperture require a special camera body?

A: No. Any Axis camera with an i-CS mount can use the 01727-001. The F1.5 aperture simply delivers more light to the sensor than slower lenses—beneficial in low-light conditions, supported by standard Axis sensors without special configuration.

Q: Can I adjust focus and zoom remotely?

A: Yes. The i-CS interface allows you to adjust focus from the camera's network settings or management interface. Zoom adjustment requires manual focus tuning post-zoom; the automatic focus feature compensates for focus shift caused by zoom movement.

Q: How does the 01727-001 perform in low-light environments?

A: The F1.5 maximum aperture gathers significantly more light than F2.8 alternatives, improving low-light sensitivity. However, the lens is passive; for scenes below the camera's minimum illumination threshold, pair it with a camera featuring native IR or supplemental infrared illumination.

Q: What is the typical installation process?

A: Mount the lens to an i-CS compatible Axis camera body using the CS-mount interface, then access the camera's network settings to initiate remote focus calibration. The i-CS interface guides automatic focus setup, eliminating manual on-site adjustment in most cases.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The Axis 01727-001 delivers approximately 5.6x optical zoom across a 9-50mm range, striking a practical balance between wide contextual coverage and detailed forensic observation without requiring motorized zoom housings or PTZ mechanics. The F1.5 aperture is notably fast for surveillance optics—at least one full stop faster than standard F2.8 alternatives—which translates to measurable low-light sensitivity gains in 24/7 facilities with inconsistent ambient lighting. The i-CS remote focus capability directly addresses total cost of ownership: automatic focus calibration eliminates field service visits and re-tuning costs that plague traditional manual varifocal lenses when camera angles shift or zoom positions change.

Technical Highlights:

• 9-50mm Focal Range with F1.5 Aperture: Approximately 5.6x optical zoom combined with fast light transmission means the 01727-001 handles both wide overviews and zoomed detail capture in a single optic. The F1.5 aperture advantage is especially valuable in warehouse aisles, parking structures, or indoor facilities where ambient light is low or unevenly distributed.
• 8MP Resolution Support: At 3264 × 2448 pixels, the lens supports modern 8MP sensors, delivering meaningful pixel density for identity verification and forensic detail. This is a generation beyond 5MP—useful for retail loss-prevention and warehouse audit trails, but without the bandwidth bloat of 12MP+ sensors on tight network budgets.
• i-CS Automatic Focus: Network-controlled focus compensation at every zoom position eliminates the frustrating soft-image problem common to older varifocal lenses. The camera firmware handles focus adjustments automatically—no manual calibration dial on the lens body to adjust after installation.

Deployment Considerations:

• Compatibility Constraint: The 01727-001 requires an Axis camera with an explicit i-CS mount specification. Standard CS-mount cameras will thread the lens on mechanically but will not support remote focus. Verify i-CS compatibility in the camera datasheet before ordering—it is a critical detail.
• Passive Optics: This is a lens, not a camera. It requires an Axis camera body with a network-connected sensor and processor. IR illumination must come from the camera body, a separate light source, or ambient conditions—the lens itself is passive and does not emit infrared.
• Zoom-Focus Interaction: After zoom adjustment, the automatic focus feature re-locks sharpness. This works reliably but is not instantaneous—use in applications where a short focus-acquisition delay (typically under 2 seconds) is acceptable.

Best For: Fixed-position surveillance of mixed-distance scenes—retail floors, warehouse aisles, or facility entrances where you need one camera to frame both wide context and zoomed detail without pan/tilt mechanics. The 01727-001 is especially valuable where camera repositioning is costly or impossible, and field service labor for manual focus tuning would be disruptive. Avoid if your use case demands active motorized zoom via joystick or continuous pan/tilt tracking—a PTZ camera is the better choice there.
