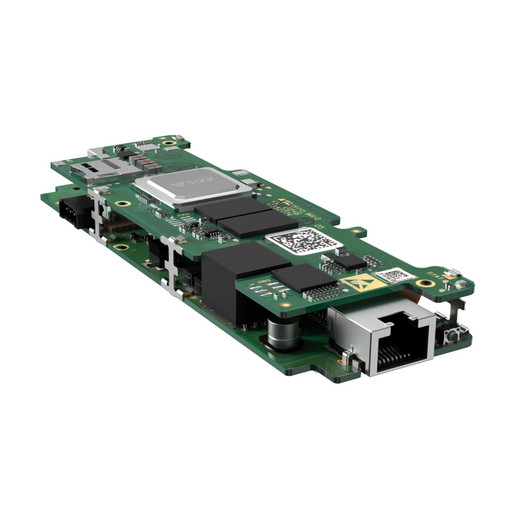

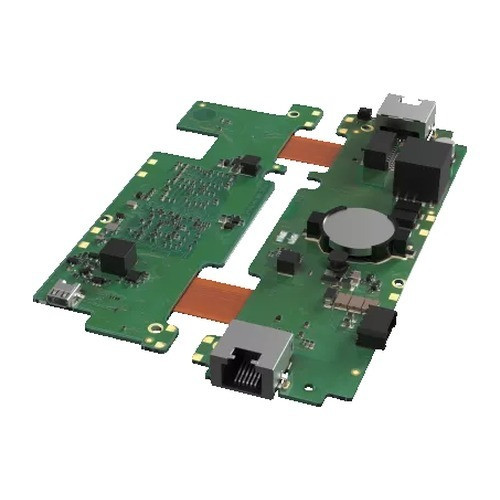

Axis FA51-B Single-Channel Barebone HDMI Main Unit 10-Pack
The Axis FA51-B is a modular, single-channel barebone main unit designed for discrete surveillance integration into retail, hospitality, and commercial environments. This UL-recognized component delivers professional-grade video capture and processing capabilities, enabling seamless integration with ATMs, monitors, ticket machines, and other devices. The 10-pack configuration provides cost-effective deployment for multi-location installations.
Key Features
- 2MP resolution with HDTV 1080p at 25/30 fps for clear, detailed video capture
- Forensic Wide Dynamic Range (WDR) for balanced imaging in high-contrast environments
- HDMI output for direct connection to external displays and monitoring devices
- Power over Ethernet (PoE) Class 3 for simplified installation and reduced cabling
- H.264 video compression to optimize bandwidth and storage efficiency
- Digital I/O and 2 alarm input/output channels for integration with third-party systems
- AXIS Camera Application Platform support for extended functionality and customization
- IEEE 802.1X authentication and HTTPS encryption for secure network operation
- Local storage capability for onboard recording and edge processing
- Operating temperature range of -20 to 50°C for diverse deployment scenarios
Technical Specifications
The FA51-B operates on a wired PoE infrastructure, eliminating the need for separate power cables while maintaining reliable network connectivity. Its modular design allows integration directly into host devices, providing discreet surveillance without visible camera components. The unit supports H.264 compression to reduce bandwidth demands in bandwidth-constrained environments. Forensic WDR technology ensures balanced exposure in scenes with mixed lighting conditions, making it particularly effective in retail spaces, public entrances, and areas with variable ambient light.
Applications
- Integrated surveillance in ATM machines and point-of-sale terminals
- Retail environment monitoring and loss prevention
- Public space and entrance monitoring in commercial facilities
- Ticket machine and kiosk surveillance
- Discreet monitoring in hospitality and transportation venues
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The FA51-B addresses a critical market need for embedded, discrete surveillance solutions. Its barebone architecture enables OEMs and integrators to customize video capture within existing device ecosystems, reducing total cost of ownership while maintaining professional video quality. The combination of Forensic WDR and H.264 compression delivers forensic-grade imaging without excessive storage overhead.
PoE Class 3 power delivery ensures compatibility with standard network infrastructure, simplifying deployment at scale. For organizations deploying 10 or more units across multiple locations, this pack offering provides significant procurement efficiency and standardized configuration management.
