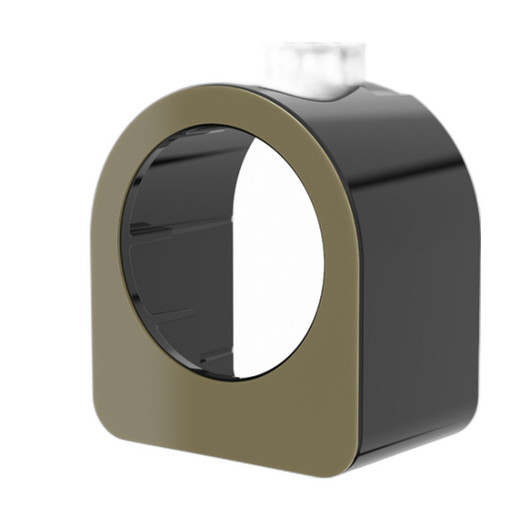

Axis F82A06 Angled Pinhole Mount 5 Pack - 01198-001

Axis 01198-001 Angled Pinhole Mount 5 Pack

Overview

The Axis F82A06 01198-001 is a five-pack of angled pinhole mounting brackets purpose-built for the AXIS FA1125 Sensor Unit. This accessory solves the core deployment problem for covert indoor surveillance: installing a 1080p sensor behind a thin barrier (drywall, metal panel, glass) with only a 3.7mm pinhole opening visible. The angled design allows flexible positioning while maintaining the discrete profile required in retail, banking, and corporate environments where camera visibility undermines user confidence or aesthetics. Each bracket supports the FA1125's 1920×1080 Forensic WDR imaging and 91° horizontal field of view without line-of-sight obstruction.

Compatibility

The F82A06 mounts are engineered exclusively for the AXIS FA1125 Sensor Unit. The FA1125 is a modular indoor surveillance sensor designed to pair with an AXIS FA Main Unit; the mount brackets facilitate flush installation into walls, ceilings, or metal panels. Verify your main unit supports the FA1125 sensor before ordering — the F82A06 brackets themselves are passive mechanical components with no electronics and impose no additional power or network requirements beyond what the sensor and main unit already demand.

Installation Notes

The F82A06 is a passive bracket requiring only hand tools for installation. Drill a small aperture in your mounting surface (drywall, aluminum, plastic, or glass per the datasheet materials guidance), insert the bracket assembly, and secure the FA1125 sensor unit. The bracket itself measures 28×24×20mm and weighs 0.03 lbs per unit — minimal footprint. No torque specifications, wiring, or power considerations apply to the mount itself; all electrical and environmental constraints derive from the FA1125 sensor unit (operating range −20°C to 50°C, storage −40°C to 65°C). Ensure your mounting surface provides enough structural depth and stability to support the sensor and its 8-meter sensor cable routed to the main unit.

What's in the Box

• 5× Axis F82A06 Angled Pinhole Mounting Brackets
