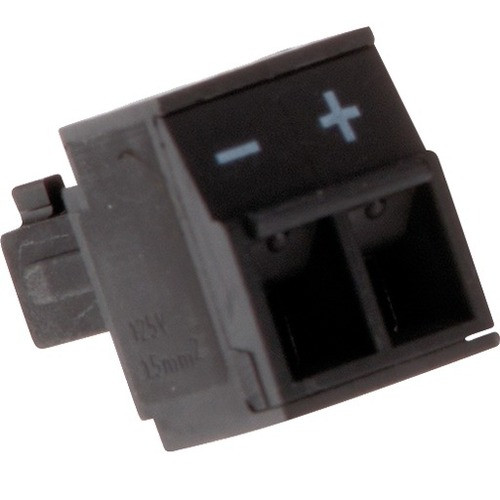

Axis Connector A 2-Pin 5.08 Straight 10 pcs - 5505-301

Axis 5505-301 2-Pin 5.08 Straight Connector Pack

Overview

The Axis 5505-301 is a pack of 10 male 2-pin connectors with 5.08 mm pitch spacing, designed for low-voltage power distribution in surveillance installations. This connector type is the standard interface for connecting power to Axis network cameras and related security equipment. The straight form factor ensures flush seating in wall-mounted or surface-mounted junction boxes without requiring adapters or bend-relief strain.

Compatibility

The 5505-301 is compatible with Axis IP surveillance cameras that use the 2-pin 5.08 mm screw-terminal connector standard. This includes many fixed-dome, turret, and compact bullet models in the Axis catalog. Verify your specific camera model's power connector specification before ordering — Axis offers alternative connectors (angled and other pitch sizes) for different installations. Contact the camera's datasheet or your system integrator if you are uncertain of the connector type.

Installation Notes

The connector features screw-terminal pins rated for low-voltage (24 VDC or lower) applications typical in PoE and auxiliary power scenarios. Ensure wire gauge matches the connector's current rating and your system's voltage and amperage specifications. Operating temperature range is −40°C to +125°C, making these connectors suitable for indoor and outdoor enclosures within standard surveillance environment limits. Store unopened packs in ambient conditions below 40°C and 60% relative humidity to preserve connector integrity.

What's in the Box

• 10x 2-pin male connectors with 5.08 mm pitch spacing
