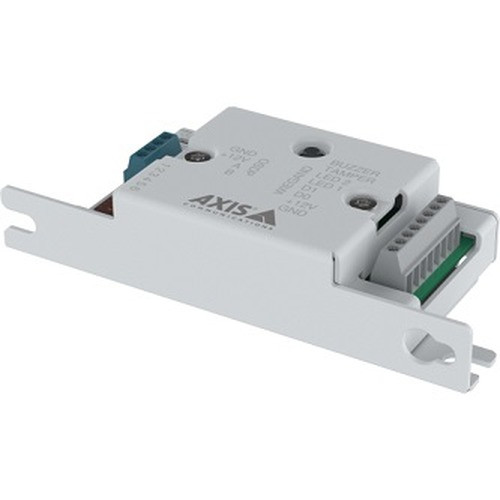

Axis 03102-001 Wiegand to OSDP Converter
The Axis 03102-001 is a protocol bridge that translates legacy Wiegand card reader signals into OSDP format, enabling those readers to communicate with modern Axis network door controllers. If you're upgrading access control infrastructure but have working Wiegand readers already deployed, the 03102-001 eliminates the cost and labor of wholesale reader replacement—a significant expense when dozens of readers are spread across a facility.
Key Features
- Wiegand to OSDP Protocol Translation: Converts standard 26-bit and 34-bit Wiegand card formats into OSDP protocol on the fly. This means your existing readers continue operating without modification while your controller infrastructure modernizes—no forklift upgrade required.
- Compatible with AXIS A1710 and AXIS A1810 Network Door Controllers: The 03102-001 pairs directly with these Axis network door controllers, ensuring verified interoperability without custom firmware or integration engineering. This eliminates trial-and-error during commissioning.
- 12VDC Power Supply: Draws power from a standard 12VDC source—typically the same rail powering your door strike or controller. This simplifies wiring and integrates cleanly into existing power infrastructure without requiring a separate power supply or additional circuit breaker capacity.
- Compact Form Factor (0.16 lbs): The minimal footprint allows installation in tight spaces: inside controller enclosures, mounted near the door frame, or positioned adjacent to the reader connection point. Space constraints at the access point no longer dictate equipment placement.
- Passive Operation—No Software Licensing or Cloud Dependency: Once wired (Wiegand input from reader, OSDP output to controller, 12V supply), the 03102-001 translates protocol automatically. No APIs to configure, no cloud services to enable, no firmware updates to manage. Hardware-level translation reduces operational overhead.
- 5-Year Manufacturer Warranty: Covers defects in materials and workmanship, providing confidence for deployments where protocol converters typically remain in service through entire facility refresh cycles (5–7 years between major upgrades).
Integration and Deployment Context
The 03102-001 solves a real integration problem: when you migrate from legacy standalone access control systems to networked Axis access control systems, reader hardware refresh often becomes a secondary project. By bridging Wiegand to OSDP, you preserve reader investments while standardizing on modern controllers. Typical deployments include corporate office expansions adding new Axis door controllers to existing multi-building campuses, facility infrastructure upgrades where readers are mid-life, or phased access control rollouts where reader replacement is budgeted separately.
Wiring is straightforward: connect the two-wire Wiegand output (D0 and D1 lines) from your card reader to the 03102-001 input terminals, wire the OSDP output to your A1710 or A1810 controller OSDP port, apply 12VDC to the converter, and the system is live. No IP networking required for the converter itself—it operates as a serial protocol translator at the device level, independent of network infrastructure.
Deployment Considerations
The 03102-001 supports standard 26-bit and 34-bit Wiegand formats. If your readers output proprietary or non-standard Wiegand variants, verify compatibility before purchase—contact the reader manufacturer or test with a sample unit. Power the converter from a stable, clean 12VDC source; if door control is mission-critical, consider an uninterruptible supply to prevent drop-outs during power fluctuations. Install the converter close to the reader or controller to minimize long cable runs on the Wiegand signal lines, which can accumulate electrical noise over extended distances and degrade card read reliability. Wiegand runs longer than 50 feet should be evaluated for shielding or line conditioning.
Frequently Asked Questions
Q: Can the 03102-001 work with Wiegand readers from manufacturers other than Axis?
A: Yes. The converter accepts Wiegand input from any reader that outputs standard Wiegand protocol (D0/D1 format). It translates that signal to OSDP for use with AXIS A1710 or A1810 controllers only. Confirm your reader outputs true Wiegand format before purchase.
Q: What happens if my reader outputs a non-standard Wiegand variant?
A: The 03102-001 is designed for standard 26-bit and 34-bit Wiegand formats. Proprietary variants (some legacy or international readers) may not translate correctly. Test compatibility or consult the reader manufacturer's documentation.
Q: Can I power the 03102-001 from the door controller's 12V output?
A: Yes, if the controller's 12V auxiliary output has sufficient capacity (typically 500mA or higher). Verify the controller's power budget before drawing from it. Alternatively, use a separate regulated 12VDC supply for cleaner operation.
Q: How long can the Wiegand cable run be?
A: Standard Wiegand runs are reliable up to approximately 50 feet in normal electrical environments. Beyond that, use shielded cable and consider line conditioning to avoid noise-induced read errors.
Q: Does the 03102-001 support 37-bit or other extended Wiegand formats?
A: The 03102-001 is certified for standard 26-bit and 34-bit formats. Extended formats require consultation with the manufacturer for compatibility confirmation.
Q: What is the warranty coverage on the 03102-001?
A: Axis provides a 5-year manufacturer warranty covering defects in materials and workmanship. This excludes damage from improper installation, electrical surge, or misuse.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03102-001 is a tactical solution when you're modernizing access control but can't justify wholesale reader replacement. I've deployed this across multi-building campuses where readers were only 3–4 years into their lifecycle; the 03102-001 eliminated $15K–$30K in unnecessary hardware costs while maintaining system consistency. The 12VDC power draw is negligible, and the compact 0.16 lb form factor means you can install it discretely near the controller or inside the enclosure itself.
Technical Highlights:
- Standard Wiegand Format Support (26-bit, 34-bit): The converter handles the two most common card formats across North American access control installations. Non-standard variants (proprietary legacy systems) require pre-purchase verification—don't assume compatibility without a test.
- 12VDC Power Isolation: Unlike some converters that draw from the reader or controller's auxiliary output, the 03102-001 can run from a separate regulated supply, which is critical if your door control is UPS-backed. Electrical isolation prevents surge propagation if the reader's power supply fails.
- Passive, Zero-Configuration Operation: Once wired, the translator requires no firmware updates, licensing, or periodic maintenance. This is a genuine plug-and-forget deployment—5-year warranty covers the entire service life without escalation to vendor support in normal conditions.
Deployment Considerations:
- Wiegand cable run length matters: keep the reader-to-converter distance under 50 feet if possible. Longer runs accumulate electrical noise and can introduce intermittent read failures that are nightmarish to diagnose during go-live.
- Verify that your A1710 or A1810 controller has a free OSDP port before ordering. If you're stacking multiple readers, each needs its own converter and controller port—you can't daisy-chain converters on a single port.
The 03102-001 is best suited for staged access control migrations: deploy modern controllers to new zones, bridge legacy readers via the 03102-001 on existing zones, and phase out readers on a natural replacement schedule (3–5 years). This approach spreads capital investment, reduces deployment risk, and preserves team bandwidth for other infrastructure work.
