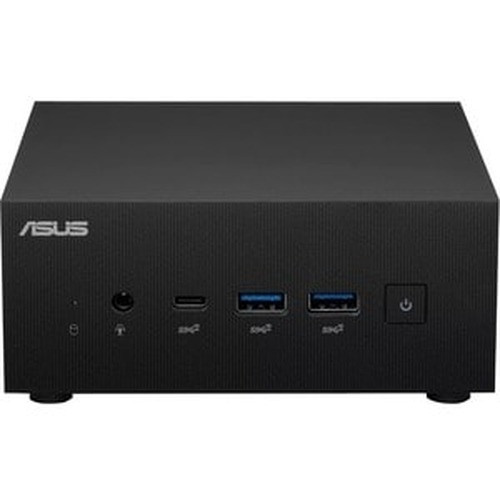

ASUS PN64-BB3000X1TD-NL Expertcenter PN64 Mini PC Barebone With Intel Core I3-1220P

ASUS PN64-BB3000X1TD-NL ExpertCenter PN64 Mini PC Barebone with Intel Core i3-1220P

Overview

The ASUS PN64-BB3000X1TD-NL is a compact barebone mini PC built around the 12th-generation Intel Core i3-1220P — a hybrid-architecture processor that pairs two Performance cores with eight Efficient cores to handle multi-stream workloads without the chassis footprint of a tower server. At 11.40 x 7.10 x 2.70 inches and 3.40 lb, it ships without RAM or storage installed, letting you spec memory and drives to match the exact demands of your deployment rather than paying for pre-configured capacity you may not need. For mini PCs used as edge VMS nodes, digital signage controllers, or thin client replacements, the PN64 form factor fits in equipment bays, wall enclosures, and rack shelves where a full desktop won't.

Key Features

• Intel Core i3-1220P (12th Gen, 10 Cores / 12 Threads): The hybrid core design — two P-cores at up to 4.4 GHz for latency-sensitive tasks, eight E-cores at up to 3.3 GHz for parallel background work — means the processor can simultaneously decode multiple camera streams, run lightweight analytics processes, and handle OS overhead without one workload starving the others. This is a meaningfully different architecture from older quad-core i3 designs.
• 12 MB L3 Cache: The larger L3 pool reduces how often the processor has to reach out to system RAM during sustained decode operations. In practice this keeps frame latency more consistent during peak activity — relevant when you need synchronized multi-channel playback without dropped frames.
• Dual SO-DIMM Slots with DDR5-4800 Support: Two memory slots means you can run dual-channel DDR5 for roughly double the memory bandwidth versus a single-stick configuration. DDR5-4800 also carries higher per-stick bandwidth than DDR4 at equivalent speeds. Fill both slots — a single-channel DDR5 deployment in a dual-slot system is a common configuration mistake that visibly limits throughput on memory-bound workloads like multi-stream video decode.
• Barebone Configuration: No RAM, no storage pre-installed. That is a feature, not a gap — it means you can pair this with surveillance-rated NVMe drives (e.g., drives with higher sustained write endurance) and right-size memory for your channel count rather than inheriting a consumer-configured baseline and replacing parts you already paid for.
• Compact 11.40 x 7.10 x 2.70 in Chassis: The PN64 sits between a NUC-style device and a small-form-factor desktop in volume terms. The 2.70-inch height in particular matters when mounting in a 2U rack shelf, equipment cabinet, or VESA-backed wall mount — verify your enclosure clearance before ordering, especially if adding a full-height GPU or secondary storage.
• 3.40 lb Shipping Weight: Light enough for VESA-mount deployments and ceiling-tile equipment trays. Commercial installations that need to co-locate compute near the camera head-end rather than running long cable runs back to a server room benefit from this weight profile.

Integration and Compatibility

As a barebone unit, the PN64-BB3000X1TD-NL is OS-agnostic at purchase — you install Windows, Linux, or a purpose-built VMS appliance image depending on your software stack. The i3-1220P's Intel Iris Xe integrated graphics support hardware-accelerated H.264 and H.265 decode, which reduces CPU load when the VMS or media player can offload decode to the iGPU. Confirm your NVR or VMS software supports Intel Quick Sync before selecting this over a discrete-GPU alternative — most commercial VMS platforms (Milestone, Genetec, Avigilon Control Center, exacqVision) do, but verify the specific version requirements in the software's hardware compatibility list.

The DDR5-4800 SO-DIMM slots accept standard laptop-form-factor DDR5 modules. Maximum supported capacity is not specified in available evidence — consult the ASUS PN64 product page or memory compatibility list for the ceiling before purchasing high-density DIMMs. For a light edge-node deployment running 8–16 camera streams with local storage, 16–32 GB is a reasonable starting point; heavier analytics or concurrent user workloads warrant more.

Storage is entirely user-selected. The PN64 chassis typically supports M.2 NVMe and 2.5-inch SATA drives — verify the exact slot count and interface support for this SKU against ASUS documentation before purchasing drives. For surveillance applications, pair with surveillance-rated hard drives or NVMe SSDs with specified write endurance, not consumer desktop drives, since continuous-write recording workloads accelerate wear on drives not rated for that duty cycle.

For integrators deploying multiple units across a site or campus, the PN64's VESA mounting compatibility and sub-4-pound weight simplify distributed compute architectures — one node per floor or zone, rather than a single centralized server with long cable pulls. A PoE network switch at each zone head-end combined with a local PN64 keeps latency low and avoids single points of failure.

Frequently Asked Questions

Q: Does the PN64-BB3000X1TD-NL come with RAM and storage installed?

A: No. This is a barebone configuration — the unit ships with the Intel Core i3-1220P processor installed but no RAM or storage. You supply your own DDR5-4800 SO-DIMM modules and drives suited to your workload.

Q: What memory type does the PN64-BB3000X1TD-NL support?

A: It supports DDR5-4800 via two SO-DIMM slots. Running matched modules in both slots enables dual-channel mode, which approximately doubles available memory bandwidth compared to a single-stick configuration — a practical consideration for multi-stream video workloads.

Q: Is the PN64-BB3000X1TD-NL suitable as a VMS server or NVR host?

A: The 12th-gen Intel Core i3-1220P with Intel Iris Xe graphics supports hardware-accelerated H.264/H.265 decode, making it viable for light-to-moderate channel counts on most commercial VMS platforms. Suitability depends on your channel count, resolution, analytics load, and whether your VMS version supports Intel Quick Sync. Verify against your software vendor's hardware compatibility list.

Q: What operating system does the PN64-BB3000X1TD-NL support?

A: As a barebone, the unit has no OS pre-installed. It is compatible with Windows and Linux distributions; specific driver support depends on the OS version. Check ASUS's driver download page for the PN64 to confirm support for your target OS before deployment.

Q: What are the physical dimensions of the PN64-BB3000X1TD-NL?

A: 11.40 inches long x 7.10 inches wide x 2.70 inches high, weighing 3.40 lb. The 2.70-inch height is the critical measurement for rack-shelf and VESA-mount installations — verify enclosure clearance accordingly.

Q: Is the PN64-BB3000X1TD-NL NDAA Section 889 compliant?

A: NDAA compliance status is not confirmed in available technical documentation for this SKU. Contact your procurement team or ASUS directly to obtain a formal compliance statement before use in federal or government-adjacent deployments.

Jerry Tildsen

The PN64-BB3000X1TD-NL lands in an interesting spot for edge compute in security deployments. The i3-1220P's hybrid architecture — two Performance cores hitting 4.4 GHz and eight Efficient cores at 3.3 GHz — is a better fit for the mixed workload profile of a VMS edge node than a traditional quad-core i3 would be. The E-cores absorb steady-state background tasks (logging, network I/O, storage writes) while the P-cores handle burst decode demands. That matters when you're running a 16-channel station that needs to stay responsive during a playback request while still recording.

Technical Highlights:

• 10-Core / 12-Thread i3-1220P: The 2P + 8E hybrid layout handles concurrent workloads better than a homogeneous 4-core design at the same TDP envelope — relevant for VMS nodes running recording, local analytics, and management UI simultaneously.
• DDR5-4800 Dual-Channel: Two SO-DIMM slots let you achieve dual-channel operation; DDR5-4800 delivers meaningfully higher bandwidth than DDR4-3200 at a similar slot count. Don't populate just one slot — the bandwidth difference is measurable under multi-stream decode loads.
• Barebone Configuration: At 3.40 lb and 11.40 x 7.10 x 2.70 inches, this fits in a standard VESA mount or 2U shelf. The barebone model means you're not paying for pre-installed consumer-grade RAM and drives you'd replace anyway for a surveillance deployment.

Deployment Considerations:

• Verify maximum supported DDR5 capacity against the ASUS PN64 compatibility list before purchasing DIMMs — the spec sheet does not confirm a ceiling, and high-density DDR5 modules (64 GB per slot) are not universally supported on mobile-class platforms.
• The i3-1220P draws within the 28W PBP envelope, which is important if you're deploying in a passively cooled enclosure or a space-constrained cabinet with limited airflow — confirm the PN64's active cooling can sustain boost clocks in your installation environment's ambient temperature.

For a distributed security deployment where you need a low-footprint edge node at each floor IDF or remote building — handling local camera recording, basic analytics, and failover — the PN64-BB3000X1TD-NL is a reasonable platform to build on, provided you pair it with appropriate surveillance-rated storage and validate your VMS software's hardware requirements first.
