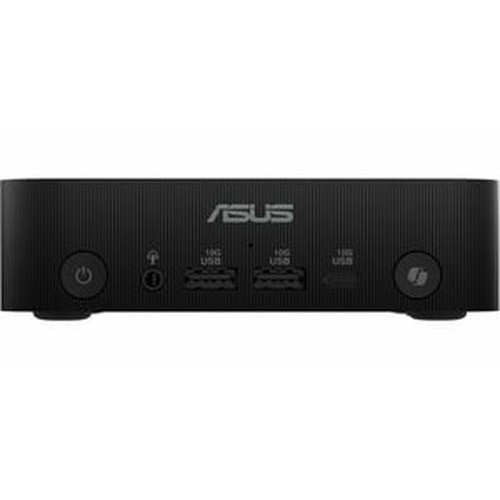

ASUS PN54-S1-BB7000ETL Compact AMD Ryzen 7 Mini PC
Overview
The ASUS PN54-S1-BB7000ETL is a compact mini PC built around AMD's Ryzen 7 260 processor — an 8-core, 16-thread chip from the AMD Ryzen 200 series that delivers workstation-class compute in a chassis measuring just 7.44 x 6.18 x 5.28 inches and weighing 3.26 lb. For integrators running video management software, edge analytics engines, or lightweight NVR workloads where rack space and power draw are constraints, this form factor matters. The PN54-S1-BB7000ETL ships barebones — no RAM, no storage pre-installed — which means you configure it precisely for the workload rather than paying for resources you won't use.
Integrated AMD Radeon 700M graphics and AMD Ryzen AI on-die accelerator offload inference tasks from the CPU cores, leaving more headroom for VMS decode and event processing. This is not a graphics workstation, but for running AI-assisted motion filtering or occupancy analytics at the edge, the on-chip accelerator is a meaningful addition over previous-generation mini PCs without dedicated NPU silicon.
Key Features
- AMD Ryzen 7 260 — 8 cores / 16 threads at 3.8 GHz base / 5.1 GHz boost: The 5.1 GHz boost frequency gives the processor real headroom for burst-heavy VMS workloads — camera connection storms at startup, motion event indexing, or simultaneous live decode across multiple streams. Eight physical cores mean you can assign dedicated threads to recording, analytics, and UI without contention.
- DDR5-SDRAM via dual SO-DIMM slots, up to 64 GB: DDR5 delivers higher memory bandwidth than DDR4, which directly benefits workloads that stream large video buffers or run inference models in RAM. Two SO-DIMM slots let you start at 16 GB and expand to 64 GB as channel count grows — no motherboard swap required. Note: memory is not included; select DDR5 SO-DIMM modules rated for the platform.
- AMD Ryzen AI on-die neural processing: The integrated NPU handles AI inference tasks — object classification, scene change detection, anomaly scoring — without stealing CPU cycles. For edge deployments running lightweight analytics alongside a VMS, this separation of compute paths reduces latency on both sides.
- Barebones configuration (no RAM, no storage pre-installed): Ships without memory or storage, so you specify DDR5 SO-DIMM capacity and SSD type to match your retention and redundancy requirements. Supported storage drive type is SSD — M.2 NVMe is the expected interface for this platform class, though confirm slot specification before ordering drives.
- 24 MB total cache (8 MB L2 + 16 MB L3): Large L3 cache reduces main memory round-trips during sustained decode operations — relevant when the system is simultaneously recording and running playback queries against recent footage.
- 3.26 lb / 7.44 x 6.18 x 5.28 in form factor: Small enough to mount behind a monitor, inside a server closet shelf, or on a wall bracket. At under 3.5 lb, it ships and installs without the logistics overhead of a tower workstation. Pairs naturally with a dedicated NVR appliance in a hybrid edge-plus-central architecture, or replaces one entirely in smaller deployments.
- Integrated AMD Radeon 700M graphics: Handles multi-monitor display output for operator workstations without a discrete GPU. If you're running a VMS client with live wall display across two or three monitors, the Radeon 700M handles that load without an add-in card — keeping power draw and heat output low in compact installations.
Integration & Compatibility
The PN54-S1-BB7000ETL runs on standard x86-64 architecture, making it compatible with the full range of Windows-based VMS platforms — Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wisenet WAVE, and others. AMD Ryzen AI integration is exposed via Windows ML and DirectML APIs, so VMS vendors supporting edge inference can leverage it without custom driver work. For deployments pairing this unit with IP cameras across a PoE switch fabric, the mini PC connects over standard GbE — confirm your VMS's recommended CPU tier for your target channel count before finalizing the build. The barebones design also makes it straightforward to deploy with a hardened OS image, since you control the full software stack from first boot.
This unit carries UNSPSC code 43211508, classifying it under electronic computers — relevant for procurement systems that require commodity classification for purchase orders.
Frequently Asked Questions
Q: Does the PN54-S1-BB7000ETL come with RAM and storage installed?
A: No. The PN54-S1-BB7000ETL ships barebones — no memory or storage is pre-installed. You select and install DDR5 SO-DIMM modules (up to 64 GB across two slots) and an SSD separately. This lets you configure the system precisely for your workload and budget.
Q: What type of memory does the PN54-S1-BB7000ETL support?
A: It supports DDR5-SDRAM in SO-DIMM form factor, with two slots and a maximum supported capacity of 64 GB.
Q: What is the processor in the PN54-S1-BB7000ETL?
A: The AMD Ryzen 7 260, part of the AMD Ryzen 200 series. It runs 8 cores and 16 threads, with a base frequency of 3.8 GHz and a boost frequency of 5.1 GHz. Total cache is 24 MB (8 MB L2 + 16 MB L3).
Q: What are the physical dimensions and weight of the PN54-S1-BB7000ETL?
A: The unit measures 7.44 x 6.18 x 5.28 inches (L x W x H) and weighs 3.26 lb — small enough to mount behind a display or on a wall bracket in a compact installation.
Q: Is the PN54-S1-BB7000ETL suitable for running VMS software at the edge?
A: Yes, for appropriately scaled deployments. The 8-core Ryzen 7 260 with 5.1 GHz boost, DDR5 memory support, and integrated AMD Ryzen AI NPU make it capable of handling VMS client and server workloads, lightweight edge analytics, and multi-stream decode simultaneously. Channel capacity depends on codec, resolution, and VMS platform — consult your VMS vendor's sizing guide for exact numbers.
Q: What storage drives are supported?
A: The PN54-S1-BB7000ETL supports SSD storage. No drives are included. Confirm the specific M.2 slot specification (PCIe gen and key type) in the ASUS documentation before ordering drives.
The PN54-S1-BB7000ETL is one of the more practical edge compute options I've seen for small-to-mid VMS deployments — specifically because it combines a 5.1 GHz boost processor with an on-die AI accelerator in a 3.26 lb chassis. That combination is useful when you're trying to keep analytics processing local rather than sending streams to a central server, but you don't have the rack space or power budget for a tower workstation.
Technical Highlights:
- Ryzen 7 260 at 5.1 GHz boost: The burst frequency matters more than base clock for VMS workloads — camera reconnection events, motion indexing bursts, and live decode spikes all benefit from fast single-thread response. 16 logical threads give you clean separation between recording, analytics, and UI processes.
- DDR5 SO-DIMM up to 64 GB (2 slots): DDR5 bandwidth is a genuine advantage over DDR4 when the system is simultaneously buffering live video in RAM and running inference. Starting barebones means you can right-size from 16 GB for a 16-camera VMS client up to 64 GB for a more demanding server role.
- AMD Ryzen AI NPU (integrated): Offloads inference from the CPU — useful if your VMS or edge analytics platform supports Windows ML or DirectML. Keeps CPU cores free for decode and recording throughput instead of competing with AI tasks.
Deployment Considerations:
- Ships with no RAM or storage — budget and source DDR5 SO-DIMM modules and an SSD before deployment. Verify the exact M.2 slot type (PCIe 4.0 vs 5.0, key type) in ASUS's published spec sheet to avoid compatibility issues with high-capacity NVMe drives.
- The integrated Radeon 700M handles multi-monitor display output, but this is not a GPU-accelerated decode platform — if your VMS uses CUDA or OpenCL GPU decode for high channel counts, you'll need a discrete GPU, which this chassis may not accommodate. Confirm GPU decode requirements with your VMS vendor before committing.
This unit fits well as a dedicated VMS client workstation or lightweight edge recording node in a branch office or retail location — anywhere you need real compute in a space-constrained installation without the complexity of a rack-mount server.
