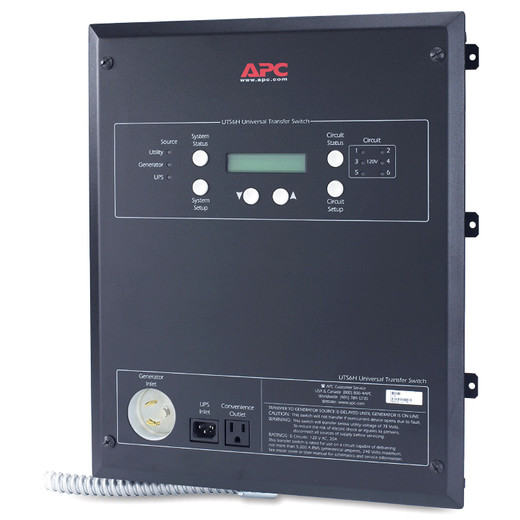

APC Universal Transfer Switch 6-CIRCUIT - UTS6H

APC by Schneider Electric UTS6H Universal Transfer Switch 6-Circuit

Overview

The UTS6H is APC by Schneider Electric's 6-circuit automatic transfer switch designed to keep critical loads running when utility power fails. By automatically switching between a primary power source and a backup — such as a generator or secondary UPS feed — it eliminates the manual intervention that costs seconds (or minutes) of unplanned downtime. At 120V AC output, it targets North American installations where branch-circuit-level transfer protection is needed without a facility-wide ATS investment.

The UTS6H accepts input from multiple connector types — IEC 60320 C14, NEMA 5-15P, and NEMA L5-30P — giving integrators flexibility to wire from rack-mounted UPS units (C14 is standard on most APC Smart-UPS), wall outlets, or twist-lock generator feeds (L5-30P) without adapters. That connector range is a practical advantage in mixed environments where power sources aren't standardized across a site.

With 6 protected circuits, the switch handles segmented load distribution — you can dedicate individual circuits to NVRs, network switches, access control panels, or other infrastructure rather than lumping critical and non-critical loads together. If a circuit trips or a source fails, the transfer logic isolates the event to the affected feed rather than cascading across the full panel.

This unit is positioned for power protection applications in security infrastructure, IT closets, and light commercial environments where an uninterruptible power supply alone doesn't cover generator-switchover scenarios. Pair it with an APC UPS on the backup input for layered protection — battery bridging during the transfer interval, generator sustaining the load thereafter. See the power protection buying guide for help sizing your transfer switch and UPS together.

Key Features

• 6 Protected Output Circuits: Distribute critical loads across dedicated circuits — NVRs, switches, and access control on separate feeds — so a single-circuit event doesn't take down the full rack.
• 120V AC Output: Matched to North American branch-circuit infrastructure; no step-down transformer or voltage conversion needed for standard IT and security equipment.
• Multi-Connector Input (C14 / NEMA 5-15P / NEMA L5-30P): Accepts input from rack UPS units, standard wall outlets, or twist-lock generator feeds — reduces adapter clutter and simplifies retrofits into existing power architectures.
• Automatic Transfer Logic: Switches to backup source without manual intervention, protecting against utility outages in unstaffed equipment rooms and remote network closets.

Frequently Asked Questions

Q: What input connector types does the UTS6H support?

A: The UTS6H supports three input connector types: IEC 60320 C14 (common on rack UPS units), NEMA 5-15P (standard 15A wall plug), and NEMA L5-30P (30A twist-lock, typical for generator feeds).

Q: What output voltage does the UTS6H provide?

A: The UTS6H outputs 120V AC, covering standard North American branch-circuit loads.

Q: How many circuits does the UTS6H protect?

A: The UTS6H provides 6 protected output circuits, allowing you to separate critical loads — such as NVRs, switches, and access control panels — onto dedicated feeds.

Q: Can the UTS6H be used with an APC UPS as the backup source?

A: Yes. The IEC 60320 C14 input is the standard output connector on most APC Smart-UPS rack units, making direct connection straightforward without adapters.

Q: Is the UTS6H an automatic or manual transfer switch?

A: The UTS6H is an automatic transfer switch — it switches to the backup source without manual intervention when it detects a primary source failure.

Eden Phillips

The UTS6H's three-connector input design is the detail I'd highlight first for any integrator pricing out a generator-switchover project. Most transfer switches force you to a single input type — this one covers C14 rack-UPS feeds, NEMA 5-15P wall circuits, and L5-30P 30A twist-lock generator outputs in a single unit, which matters when you're retrofitting into an equipment room where the power architecture wasn't planned from scratch.

Technical Highlights:

• Multi-Input Flexibility (C14 / NEMA 5-15P / NEMA L5-30P): Three connector types on one unit means you can source primary and backup power from whatever's already wired in — no pigtail adapters that add failure points.
• 120V AC Output: Matched to North American branch-circuit voltage; standard IT, security, and AV loads connect directly without step-down conversion.
• 6-Circuit Distribution: Separating NVR, switching, and access control onto individual circuits means a single-circuit fault or overload doesn't take down the full equipment room — a real operational advantage in unstaffed remote sites.

Deployment Considerations:

• The L5-30P input is a 30A twist-lock — confirm your generator or transfer panel has a matching L5-30P receptacle before ordering. A mismatch here means a non-trivial rewire, not just an adapter swap.
• Amperage per circuit and total load capacity are not confirmed in available documentation — size your connected loads conservatively and verify with the full APC datasheet before commissioning a fully loaded rack.

The UTS6H is a strong fit for security infrastructure closets and remote network equipment rooms where a generator handles extended outages but the transfer gap needs to be bridged automatically — particularly where an APC Smart-UPS is already in the rack and the C14 feed wires directly into the switch's backup input.
