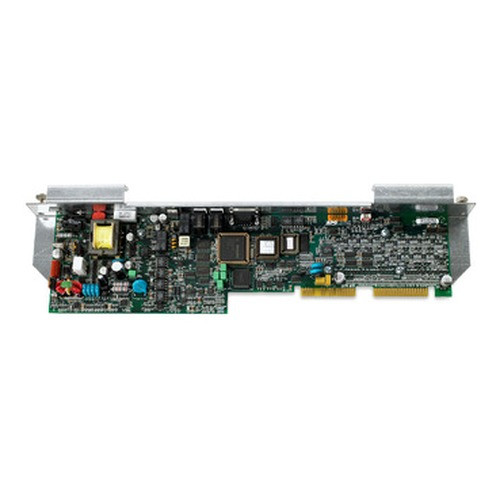

APC by Schneider Electric SYAFSU16 Symmetra LX XR Frame Slot Unit
Overview
The SYAFSU16 is a frame slot unit designed for APC by Schneider Electric Symmetra LX and Symmetra XR UPS systems. It occupies a dedicated expansion slot within the Symmetra frame, enabling modular buildout of the UPS chassis for data center and critical infrastructure environments where scalable, slot-based power architecture is the deployment standard. At 17 inches wide and 5 lb, the SYAFSU16 fits the standard Symmetra frame bay without additional hardware modification.
Compatibility
The SYAFSU16 is designed for use with the APC Symmetra LX and Symmetra XR UPS frame families — the modular, scalable UPS lines commonly deployed in raised-floor data centers and network equipment rooms. Confirm your specific Symmetra frame model and available slot count before ordering, as Symmetra LX and XR chassis vary in the number and type of supported expansion positions. This unit is not interchangeable with Symmetra RM, Smart-UPS, or other APC product lines.
Installation Notes
The SYAFSU16 slides into an open frame slot within a compatible Symmetra LX or XR chassis. Physical dimensions — 17" W × 1.7" H × 7" D — should be verified against your frame's bay clearance before installation. The unit carries RoHS environmental compliance, appropriate for deployments in jurisdictions requiring restriction of hazardous substances. Country of origin is the Philippines. No special tooling is documented in available evidence; follow APC's Symmetra frame installation guide for slot insertion torque and sequencing requirements. The 2-year manufacturer warranty covers repair or replacement.
