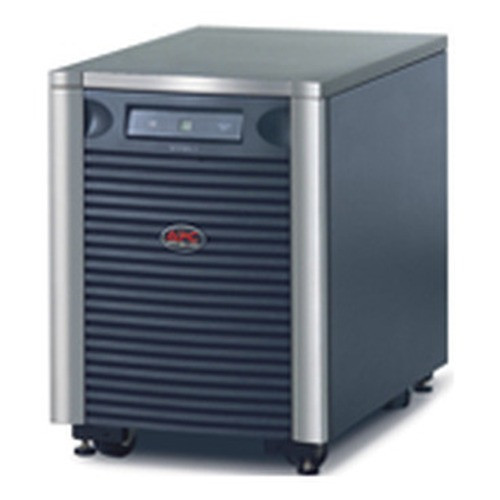

APC Symmetra LX Extended RUN Tower W/9 SYBT5 230V - SYAXR9B9I

APC by Schneider Electric SYAXR9B9I Symmetra LX Extended Run Battery Tower

Overview

The SYAXR9B9I is APC's Symmetra LX Extended Run Tower configured with nine SYBT5 lead-acid battery modules and a 230V AC input — purpose-built to push the runtime ceiling on Symmetra LX UPS installations that protect loads where a standard battery complement simply won't hold long enough. This is not a standalone UPS; it is a battery extension enclosure that integrates directly with a Symmetra LX frame, delivering extended autonomy at scale. If your application demands measured, predictable runtime across a shift change, a generator start sequence, or an extended utility outage, the SYAXR9B9I is the unit to add to your Symmetra LX stack.

The enclosure ships in black and is sized at 19 inches — consistent with the Symmetra LX rack and tower family form factor — allowing clean physical integration alongside the base UPS frame without mixed-footprint compromises.

Key Features

• Nine SYBT5 Battery Modules: The SYAXR9B9I arrives pre-populated with nine plug-in lead-acid SYBT5 modules. Each module is a discrete, hot-swappable field-replaceable unit within the Symmetra LX architecture — meaning battery maintenance or individual cell replacement does not require a maintenance window or a full system shutdown. Nine modules represent a substantial energy reserve, directly translating to extended runtime beyond what a base Symmetra LX frame provides on its own.
• 230V AC Input: Designed for 230V input environments — standard in Europe, the Middle East, Asia-Pacific, and international deployments. This matches the Symmetra LX's native international voltage range and avoids the cost and complexity of step-down transformer infrastructure in those markets.
• Plug-In Module Battery Enclosure: The plug-in module architecture means individual SYBT5 cells can be exchanged in the field without special tools or total system de-energization. For sites with long replacement lead times or limited on-site technician availability, this is a practical continuity advantage over sealed monolithic battery designs.
• Lead-Acid Chemistry: Valve-regulated lead-acid (VRLA) technology is a known quantity in data center and critical infrastructure deployments — established float charge behavior, well-understood replacement intervals, and a broad ecosystem of compatible test equipment and maintenance procedures. No unfamiliar lithium chemistry handling requirements or special disposal logistics.
• 32°F to 104°F (0°C to 40°C) Operating Range: The SYAXR9B9I operates within a standard conditioned-space temperature envelope. Deployments in server rooms, network closets, or IDF spaces with normal HVAC will stay within range. Note: this is not a hardened enclosure for unconditioned environments — plan accordingly if the installation space is subject to temperature extremes.
• 0–95% Humidity (Non-Condensing) Operating Range: Covers typical controlled indoor environments. Avoid installations near active moisture sources or in spaces prone to condensation — lead-acid chemistry and moisture exposure are a poor combination without additional protective measures.
• Broad Compliance Certifications: The SYAXR9B9I carries certifications including UL 1778, CSA, EN 50091-1, EN 50091-2, IEC 60950, EN 60950, VDE, BSMI, and VCCI. This combination covers North American, European, and Asian Pacific regulatory requirements, which matters when procuring for multi-region enterprise deployments or when your facilities team requires documentation for local electrical inspection sign-off.
• 2-Year Limited Warranty: APC backs the SYAXR9B9I with a 2-year limited warranty — confirm current warranty terms at time of purchase for your specific registration and region, as APC's service programs vary by geography and account type.

Integration and Compatibility

The SYAXR9B9I is purpose-designed for the Symmetra LX UPS platform. It is not a universal battery extension — do not attempt to integrate it with Symmetra RM, Smart-UPS, or other APC UPS families. Compatibility is with Symmetra LX frames that support external battery enclosure attachment; verify your specific Symmetra LX model's external battery enclosure support before ordering. The SYBT5 module format is native to the Symmetra LX ecosystem, and the plug-in architecture means field teams already familiar with Symmetra LX battery service procedures will find the SYAXR9B9I straightforward to commission and maintain. For UPS battery backup planning, runtime calculations should be performed using APC's online runtime calculator with your specific Symmetra LX load profile — nine SYBT5 modules provides significant reserve, but actual runtime is load-dependent and must be verified against your kVA draw. Explore the full APC by Schneider Electric power protection line for compatible frames, maintenance bypass panels, and network management cards. If your deployment involves parallel UPS redundancy or generator coordination, consult the Symmetra LX installation guide for extended run enclosure cabling and configuration requirements. For broader power protection infrastructure including PDUs, transfer switches, and rack enclosures, review the complementary categories alongside this extended run tower. Sites running network switches and security infrastructure on Symmetra LX frames will find the added runtime from the SYAXR9B9I particularly relevant during extended utility events where generator start and transfer sequences introduce variable delay.

Frequently Asked Questions

Q: Is the SYAXR9B9I a standalone UPS or a battery extension enclosure?

A: The SYAXR9B9I is a battery extension enclosure — it is not a standalone UPS. It must be paired with a compatible Symmetra LX UPS frame. It does not include inverter, rectifier, or bypass circuitry on its own.

Q: What battery modules does the SYAXR9B9I ship with?

A: The SYAXR9B9I ships pre-populated with nine SYBT5 lead-acid plug-in battery modules. Each module is individually replaceable in the field without a full system shutdown.

Q: What input voltage does the SYAXR9B9I require?

A: The SYAXR9B9I is designed for 230V AC input. It is intended for international markets where 230V is standard — Europe, Asia-Pacific, and similar regions.

Q: What is the operating temperature range for the SYAXR9B9I?

A: Operating temperature range is 32°F to 104°F (0°C to 40°C). This is a conditioned-space unit — installations in unconditioned or outdoor environments outside this range are not supported.

Q: What certifications does the SYAXR9B9I carry?

A: The SYAXR9B9I holds certifications including UL 1778, CSA, EN 50091-1, EN 50091-2, IEC 60950, EN 60950, VDE, BSMI, and VCCI — covering North American, European, and Asia-Pacific regulatory requirements.

Q: What is the warranty on the SYAXR9B9I?

A: APC provides a 2-year limited warranty on the SYAXR9B9I. Verify current warranty terms and registration requirements at time of purchase, as APC service programs may vary by region.

James Everett

The SYAXR9B9I is one of those products where the configuration detail matters more than the headline — nine SYBT5 modules in a plug-in tower enclosure running at 230V is a specific answer to a specific runtime gap in a Symmetra LX installation. If you're sizing this unit, the nine-module count is your lever for extended runtime, but the actual minutes you get are entirely load-dependent; do the runtime calculation against your specific Symmetra LX kVA draw before committing to this vs. a smaller module count.

Technical Highlights:

• Nine SYBT5 Plug-In Modules: Each of the nine modules is individually hot-swappable within the Symmetra LX architecture — battery maintenance on a live system without scheduling downtime is a real operational advantage in 24/7 critical infrastructure environments.
• 230V AC Input: This unit is built for international voltage environments. Deploying in a North American 120V facility without transformer infrastructure is not an option — this is a 230V-native design and should only be specified for 230V Symmetra LX installations.
• UL 1778 + EN 50091 Certifications: Both North American and European safety standards are covered, which simplifies multi-region procurement documentation and local electrical inspection requirements without chasing separate regional SKUs.

Deployment Considerations:

• Verify Symmetra LX frame compatibility explicitly before ordering — the SYAXR9B9I is Symmetra LX-specific and is not interchangeable with Symmetra RM or Smart-UPS battery extension products. A mismatch here is a non-trivial return logistics problem.
• Operating humidity ceiling is 95% non-condensing — environments near cooling coils, exterior walls in humid climates, or spaces without stable HVAC are a risk. Lead-acid and moisture exposure shorten service life measurably; plan the physical installation accordingly.

This unit is correctly positioned for international data center or network operations center deployments running Symmetra LX at 230V where generator start delay or extended utility events require runtime beyond the base frame's battery complement — specifically facilities that need per-module serviceability without a maintenance window.
