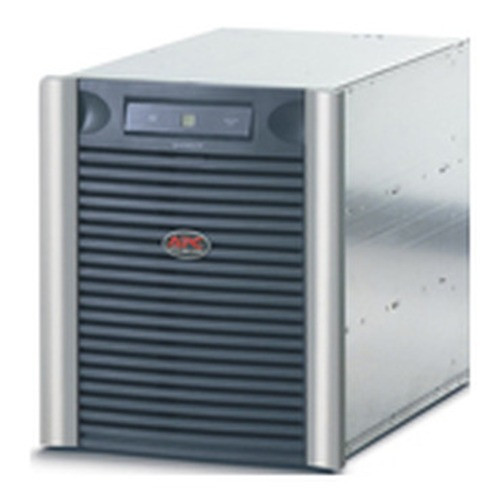

APC Symmetra LX 9 Battery Rack-mount XR Frame, 208V
APC Symmetra LX 9 Battery Rack-mount XR Frame, 208V
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric SYBFXR9RM Battery Rack-mount XR Frame

Overview

The APC Symmetra LX SYBFXR9RM is a 13U rack-mount battery frame designed to expand the runtime of Symmetra LX uninterruptible power systems. This frame specifically supports 208V configurations and utilizes Sealed Lead Acid (VRLA) batteries, providing a robust solution for mission-critical applications requiring extended backup power. Its black, 472 x 686 x 572 mm form factor integrates seamlessly into standard server racks.

Compatibility

This SYBFXR9RM frame is engineered for use with the APC Symmetra LX 208V power modules. It is not compatible with other Symmetra models or different voltage configurations. Ensure your Symmetra LX UPS system is designed to accept this expansion frame to avoid compatibility issues.

Installation Notes

The unit operates within a temperature range of 0 to 40°C (32 to 104°F) and requires 0-95% relative humidity. Storage conditions should be maintained between -15 to 45°C (5 to 113°F) with 0-95% relative humidity. Its design is CSA and UL 1778 certified, meeting stringent safety and performance standards for power protection equipment. The frame dimensions are 472mm wide, 686mm deep, and 572mm high.

Expert Analysis
Specifications
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 208 V
Form factor: 13U
Product colour: Black
Operating temperature (T-T: 0 - 40 °C
Storage temperature (T-T: -15 - 45 °C
Operating relative humidity (H-H: 0 - 95%
Storage relative humidity (H-H: 0 - 95%
Certification: CSA,UL 1778
Weight: 50.9 kg
Dimensions (WxDxH: 472 x 686 x 572 mm
Package dimensions (WxDxH: 599 x 997 x 787 mm
Q&A
Reviews
Product Video
Have Questions?

APC Symmetra LX 9 Battery Rack-mount XR Frame 208V - SYBFXR9RM

$3,875.00
$2,552.99
Add to Cart
