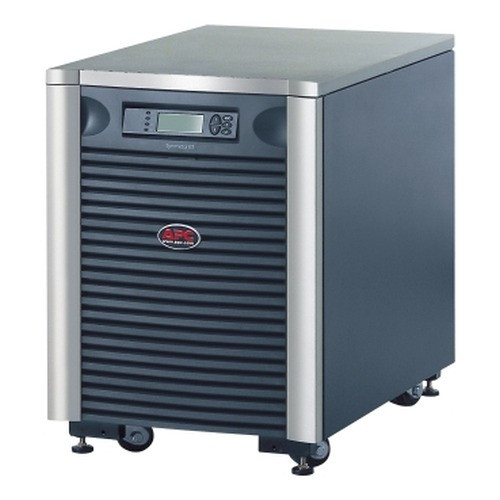

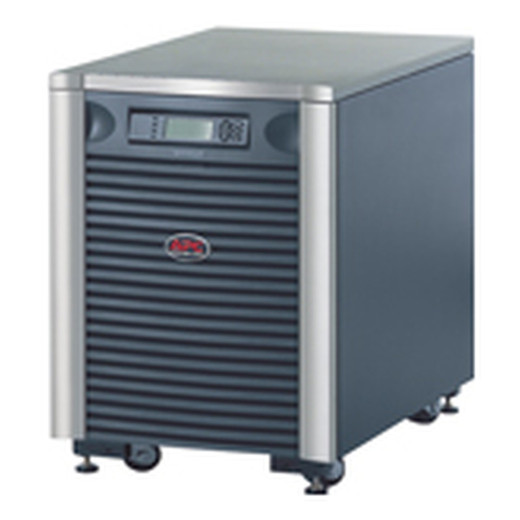

APC Symmetra LX 4KVA Scalable to 8KVA N+1 220/230/240V or 380/400/415V - SYA4K8I

APC by Schneider Electric SYA4K8I Symmetra LX 4KVA Scalable UPS

Overview

The APC by Schneider Electric SYA4K8I is a modular, scalable uninterruptible power supply rated at 4 kVA / 2,800 W with a growth path to 8 kVA N+1 — purpose-built for data centers, server rooms, and critical infrastructure deployments where downtime is not an option. Unlike fixed-capacity UPS units, the Symmetra LX architecture lets you add power and battery modules in the field without replacing the frame, so your capital investment tracks actual load growth rather than worst-case speculation. The SYA4K8I ships as a 4 kVA base unit configured for 220/230/240 V or 380/400/415 V operation, making it deployable across North American and international single- and three-phase distribution environments.

Key Features

• 4 kVA / 2,800 W Output, Scalable to 8 kVA N+1: Start at the load you have today and expand without replacing the frame. The N+1 redundancy path means you can add a redundant power module so the system survives a single module failure — critical for server rooms and surveillance NVR infrastructure where a UPS failure is worse than a power failure.
• 7.5-Minute Runtime at Full Load, 20 Minutes at Half Load: At 2,800 W full draw you get 7.5 minutes to execute a controlled shutdown or transfer to generator. Drop the load to 1,400 W and that extends to 20 minutes. For NVR and server environments running diverse loads, right-sizing your connected equipment to 50% UPS capacity is the practical way to double your bridge time without adding battery.
• Hardwire Output (No NEMA Outlets): The SYA4K8I delivers output exclusively via hardwire connection — this is a facility-grade design decision, not a limitation. Hardwire termination is required by most local codes for UPS units above 2 kVA and eliminates the failure point of outlet strips and plug connections under sustained load. Your electrician lands the load directly in the UPS output terminal block.
• Emergency Power Off (EPO): A dedicated EPO port lets you wire a remote emergency shutoff — required by NEC and NFPA 75 in many jurisdictions for data rooms. In a fire or electrical emergency, one switch cuts all UPS output power from a safe distance. Confirm your local code requirements before roughing in the EPO circuit.
• Pre-Installed AP9619 SmartSlot Card + 1 Open SmartSlot: The AP9619 network management card ships installed, giving you immediate SNMP and web-based monitoring, remote shutdown scripting, and integration with APC PowerChute software — without buying an additional card. The single remaining open SmartSlot accepts additional interface cards (environmental monitoring, relay I/O, additional network ports) as needs evolve.
• Maintenance-Free Sealed Lead-Acid Batteries (SYBT5): The sealed, suspended-electrolyte design is leakproof — no venting requirements, no acid spill risk, and no quarterly watering. Replacement is in-service via hot-swap battery cartridges (SYBT5). Because the Symmetra LX uses modular battery cartridges, you replace only the degraded module rather than the entire battery string, reducing both cost and downtime per maintenance cycle.
• 0–40°C Operating Range, 0–95% RH: The UPS operates across the full commercial equipment temperature envelope — from a cold warehouse floor (0°C) to a hot equipment room (40°C) without derating. The 95% non-condensing humidity tolerance means it handles humid server closets and telecommunications vaults without moisture-induced failures.
• 0–3,000 m Operating Altitude: Full-rated output up to 3,000 meters (roughly 9,800 feet) — relevant for deployments at elevation in the mountain west, high-altitude data centers, or international sites above 1,500 m where many UPS units require derating.

Integration & Compatibility

The SYA4K8I integrates into existing infrastructure via the pre-installed AP9619 network management card, which supports SNMP v1/v2c, HTTP/HTTPS web interface, and APC PowerChute Network Shutdown for graceful OS-level shutdown scripting across Windows Server, Linux, VMware ESXi, and Hyper-V environments. The SmartSlot expansion bay accepts the full APC SmartSlot accessory ecosystem — environmental sensors, relay cards, and Modbus/BACnet interface cards for building management system integration.

Input voltage flexibility (220/230/240 V single-phase or 380/400/415 V) allows deployment on standard European and international distribution without a transformer. The hardwire output connects directly to a PDU or sub-panel — coordinate with your electrical contractor on breaker sizing for the 4 kVA base load. The replacement battery cartridge is the SYBT5, which is a field-swappable module designed for in-service replacement without powering down connected equipment. Budget replacement at the manufacturer's stated battery service interval for the Symmetra LX platform.

For power protection planning across a multi-camera NVR or server room, pair the SYA4K8I with a compatible APC PDU to distribute protected power across rack-mounted equipment — the hardwire output feeds a PDU input, and the PDU provides the individual outlet connections and per-outlet metering your ops team needs.

Frequently Asked Questions

Q: What is the difference between the 4 kVA base configuration and the 8 kVA N+1 maximum on the SYA4K8I?

A: The SYA4K8I ships with 4 kVA / 2,800 W of usable power capacity. The frame is designed to accept additional power modules, allowing field upgrades to 8 kVA total capacity with N+1 redundancy — meaning one power module can fail and the system continues operating. No frame replacement is required; modules are added in-service.

Q: What is the runtime at full versus half load?

A: At full load (2,800 W), the SYA4K8I provides approximately 7.5 minutes of battery runtime. At half load (approximately 1,400 W), runtime extends to approximately 20 minutes. Additional battery modules can extend runtime further depending on the frame configuration.

Q: Does the SYA4K8I include a network management card?

A: Yes. The AP9619 SmartSlot network management card is pre-installed from the factory. It provides SNMP monitoring, a web interface, and compatibility with APC PowerChute Network Shutdown software. One additional SmartSlot bay remains open for expansion cards.

Q: What is the replacement battery cartridge for the SYA4K8I?

A: The correct replacement battery cartridge is the APC SYBT5. The Symmetra LX uses modular, hot-swap battery cartridges — individual modules can be replaced without powering down the connected load, provided redundant power capacity exists in the frame.

Q: Is hardwire output the only output option on the SYA4K8I?

A: Yes. The SYA4K8I provides output exclusively via hardwire connection — there are no NEMA receptacles. This is standard for UPS systems of this capacity class and is required by most electrical codes for sustained loads above 2 kVA. Plan for your electrician to terminate the output to a compatible PDU or sub-panel.

Q: What input voltages does the SYA4K8I support?

A: The SYA4K8I supports 220/230/240 V (single-phase) and 380/400/415 V configurations, making it compatible with standard European and international electrical distribution without an external step-up transformer.

James Everett

The SYA4K8I is one of the few UPS platforms in this power class where I can tell a customer to buy for today's load and genuinely mean it — the Symmetra LX frame's modular architecture means the 4 kVA base isn't a ceiling, it's a starting point. The N+1 scalability to 8 kVA is field-upgradeable, which matters when a security infrastructure expansion adds NVR capacity, edge compute, or additional switching mid-project.

Technical Highlights:

• 4 kVA / 2,800 W base with 8 kVA N+1 ceiling: The modular frame accepts power modules without powering down the load — you're not buying a spare UPS for redundancy, you're adding a module to the same chassis. For rack-dense environments, that's a significant operational difference.
• Pre-installed AP9619 SmartSlot card: Out of the box, the SYA4K8I is network-manageable via SNMP and HTTP/HTTPS. Most comparable UPS platforms ship the management card as an add-on — budgeting for it separately is easy to miss in a project quote.
• SYBT5 hot-swap battery cartridge: Battery maintenance on sealed lead-acid systems is where many UPS deployments get expensive. The Symmetra LX's per-module replacement means you swap only the degraded cartridge, not the full string, and you do it in-service if the frame has redundant power capacity.

Deployment Considerations:

• The hardwire-only output means your electrical plan needs a licensed electrician for the output termination and PDU wiring. Don't spec this unit assuming you can plug in a standard power strip — it doesn't work that way, and it's not a field modification.
• Runtime at full 2,800 W load is 7.5 minutes — enough for a controlled shutdown sequence but not a generator bridge on its own. If your facility's generator transfer switch takes longer than 5–6 minutes, either derate the connected load to stay near half capacity (20 min runtime) or spec additional SYBT5 battery modules to extend the bridge.

The SYA4K8I is the right call for international data center rack builds, high-density NVR rooms, and enterprise security infrastructure at sites running 230 V or 400 V distribution — particularly where load growth is expected within the next 18–24 months and a rip-and-replace UPS upgrade would be operationally disruptive.
