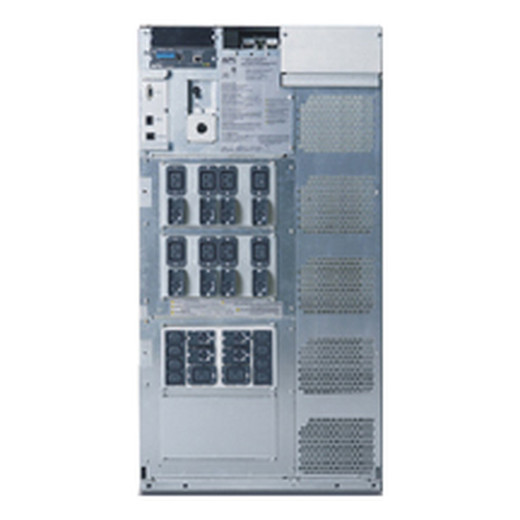

APC by Schneider Electric SYAF16KRMI Rack Frame

Overview

The APC Symmetra LX SYAF16KRMI is a 16kVA rack-mount frame designed to house Symmetra LX power modules and batteries, providing a scalable, redundant power protection solution for critical IT infrastructure. This frame is essential for deploying high-availability UPS systems in environments demanding continuous operation, such as data centers or enterprise network closets. It supports dual-voltage input (220/230/240V or 380/400/415V), accommodating diverse power distribution schemes. The SYAF16KRMI frame itself does not provide power conditioning but serves as the chassis for the power modules and batteries that deliver this function.

Compatibility

This rack-mount frame is specifically designed for the APC Symmetra LX modular UPS system. It is compatible with APC Symmetra LX power modules (e.g., SYPM16IPKM) and battery modules (e.g., SYBT5 replacement cartridges). Ensure your Symmetra LX power and battery modules are rated for the frame's input voltage configurations (220/230/240V or 380/400/415V) to ensure proper operation and warranty compliance.

Installation Notes

The SYAF16KRMI frame requires a standard 19-inch rack mounting space. Its substantial package weight of 337.7 kg necessitates careful handling and installation by qualified personnel. Operating temperature range is 0–40 °C (32–104 °F), with relative humidity from 0–95% non-condensing. Ensure adequate ventilation around the rack to manage heat generated by the installed power and battery modules. The frame supports an Emergency Power Off (EPO) function, requiring proper wiring to a compatible EPO switch for safety shutdown capabilities.
