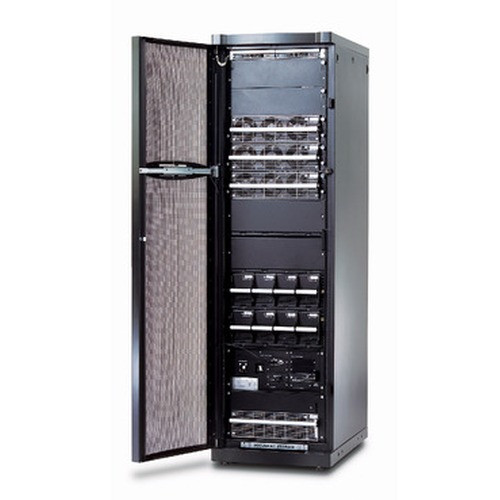

APC SYCF40KF Symmetra PX 40KW Frame 208V

APC by Schneider Electric SYCF40KF Symmetra PX 40KW Frame, 208V

Overview

The SYCF40KF is APC's Symmetra PX 40KW modular UPS frame designed for three-phase 208V commercial and data center power environments. As a frame unit, it provides the structural and electrical chassis into which Symmetra PX power modules, intelligence modules, and battery modules are installed — giving facilities teams a scalable, rack-friendly foundation rather than a fixed-capacity UPS block. If your power infrastructure requires a modular, field-upgradeable approach to critical load protection at 208V three-phase, this is the enclosure chassis that anchors that architecture.

Key Features

• Three-Phase 208V Architecture: Matched input and output voltage at 208V three-phase means this frame integrates directly into standard North American commercial electrical panels without step-up or step-down transformers — simplifying installation in data centers, server rooms, and industrial facilities running three-phase distribution.
• Modular Frame Design: The SYCF40KF functions as a scalable chassis — capacity can be added or serviced by installing or swapping internal modules without replacing the entire UPS, which reduces both capital expenditure on future upgrades and mean time to repair during a fault event.
• REACH and RoHS Compliance: Confirmed lead-free construction with REACH and RoHS certification means this unit can be deployed in facilities with strict environmental procurement requirements — relevant for government projects, healthcare campuses, and EU-destined installations.
• Sustainability Compliance: Verified sustainability compliance designation supports procurement teams meeting internal ESG goals or green building certification requirements (LEED, BREEAM) where power equipment sourcing is audited.
• Large-Format Enclosure — Purpose-Built Footprint: At 610mm wide × 902mm deep × 2083mm tall, this is a full-cabinet-height UPS frame. Confirm floor loading capacity and aisle clearance before installation — the depth of 902mm is significant in constrained equipment rooms.
• Factory-New Genuine Hardware: Sourced as factory-new, genuine APC Symmetra PX series equipment — no grey-market, no parallel imports — which matters for warranty continuity and long-term module compatibility in an expanding Symmetra PX deployment.

Frequently Asked Questions

Q: What is the SYCF40KF — is it a complete UPS or a frame only?

A: The SYCF40KF is a frame/enclosure chassis for the APC Symmetra PX modular UPS system. It is not a standalone UPS — power modules, intelligence modules, and battery modules must be installed separately to make it operational.

Q: What voltage and phase configuration does the SYCF40KF support?

A: The SYCF40KF is designed for 208V three-phase input and output. Confirm your facility's electrical service matches this specification before ordering.

Q: Is the SYCF40KF RoHS compliant?

A: Yes. The SYCF40KF carries both REACH and RoHS compliance certifications and is confirmed lead-free construction.

Q: What are the physical dimensions of the SYCF40KF?

A: The frame measures 610mm (W) × 902mm (D) × 2083mm (H). This is a full-height cabinet-class enclosure — verify floor loading and room clearance before installation.

Q: Can the SYCF40KF be expanded beyond 40KW?

A: The SYCF40KF is rated as a 40KW frame. Expansion beyond that rating would require a different Symmetra PX frame variant. Consult APC's Symmetra PX configuration documentation for scalability paths.

Marty Allison

The SYCF40KF is the physical foundation of a Symmetra PX modular UPS build — at 2083mm tall and 902mm deep, this is not a unit you squeeze into a standard equipment closet. Plan your installation around its footprint before anything else arrives on the loading dock.

Technical Highlights:

• 208V Three-Phase I/O: Matched 208V input and output eliminates voltage conversion overhead — the frame slots directly into three-phase commercial distribution without additional transformer hardware.
• REACH + RoHS Certified: Lead-free, dual-certified construction clears environmental procurement gates for government, healthcare, and EU-market installations where materials compliance is audited at the equipment level.
• Modular Chassis Architecture: The SYCF40KF's value is in what it enables — field-swappable power and battery modules mean capacity changes and fault recovery happen at the module level, not the frame level, reducing both upgrade cost and downtime exposure.

Deployment Considerations:

• At 902mm depth, this frame exceeds the depth of many standard 600mm or 800mm equipment rooms — measure twice before specifying this unit in constrained spaces or retrofit projects.
• The SYCF40KF ships as a frame only; budgeting only for the chassis and discovering module costs later is a common project scoping mistake — account for power modules, intelligence modules, and battery modules in your total cost of ownership from the start.

The SYCF40KF is the right call for new data center builds or major capacity upgrades where three-phase 208V modular UPS architecture is the design basis and the facility has the floor space and electrical infrastructure to support a full Symmetra PX deployment.
