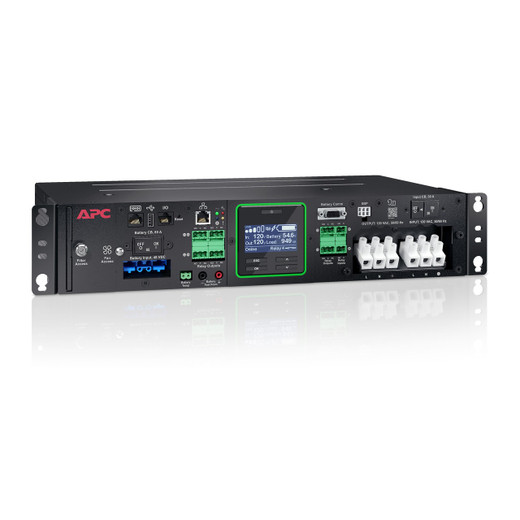

APC Smartups Industrial 1300VA / 1300W 120VAC In/out RM Conformal Coated - XU1K3LLXXRCC

APC by Schneider Electric XU1K3LLXXRCC Industrial SmartUPS 1300VA/1300W 120V Rack-Mount Conformal Coated UPS

Overview

The XU1K3LLXXRCC is a 1300VA / 1300W on-line double-conversion UPS in a 2U rack-mount form factor, purpose-built for industrial and harsh-environment deployments where standard commercial UPS units simply don't last. The conformal coating on the internal PCBs protects against condensation, airborne particulates, and corrosive atmospheres — making this the right call for manufacturing floors, outdoor-rated enclosures, transit control rooms, water treatment facilities, and other sites where humidity or chemical exposure would degrade an uncoated unit over time. Unlike line-interactive designs, the on-line topology regenerates a clean 120V sine wave output at all times, so connected equipment never sees raw utility power — a meaningful distinction when protecting sensitive network hardware, PLCs, or security infrastructure from utility-side noise and distortion.

Input and output are both hard-wired (1PH + N + G), which eliminates the NEMA outlet and plug vulnerabilities common to lighter-duty UPS units at this wattage. An integrated Web/SNMP management card ships in the box, so you're not hunting for a network card add-on after the fact — remote monitoring, alarm acknowledgment, and load-shedding are ready to configure on day one.

Key Features

• On-Line Double-Conversion Topology: The inverter runs continuously, regenerating a regulated 120V / 50-60 Hz sine wave regardless of input quality. Connected equipment is never exposed to raw utility voltage — critical for microprocessor-based load controllers and precision security hardware that react poorly to transient spikes.
• Conformal Coating: PCB conformal coating extends service life in environments with condensation, dust, or chemical vapors. If your deployment site has any of these conditions, this is the feature that separates this unit from standard rack UPS options — an uncoated board in a humid plant room is a reliability liability.
• 1300W / 1300VA at Unity-Adjacent Power Factor: The unit is rated 1300W with a load power factor range from 0.7 leading to 0.7 lagging without derating. That means you're getting the full 1300W of real power across a wide load PF range — no surprise capacity reduction when driving switching power supplies with sub-unity PF.
• Hard-Wire Input and Output: A single 3-wire hard-wire input (21A max, 30A switching capacity) and a single-zone hard-wire output eliminate connector fatigue and loose-plug failure modes. Required for code-compliant permanent installation in industrial panels.
• Integrated Web/SNMP Management Card: Ships with a Web/SNMP management card already installed — remote visibility into load, battery status, runtime estimates, and alarm events without a separate accessory purchase. Configure over the network from day one.
• Internal Automatic and Manual Bypass: Built-in bypass (both automatic and manual) lets you service or replace the unit without dropping the load — a critical operational requirement in 24/7 environments where you cannot afford a maintenance window outage.
• 432 J Surge Energy Rating, 40V Let-Through: 432 joules of surge absorption with a 40V clamping threshold protects downstream equipment from transient events on the utility feed. The 40V let-through is tight — suitable for protecting sensitive network gear alongside higher-draw industrial loads.
• 40–70 Hz Auto-Sensing Input: Input frequency auto-sensing from 40 to 70 Hz accommodates non-standard generator outputs and international grid variations without manual configuration — useful when the UPS is behind a backup generator with frequency droop under load.

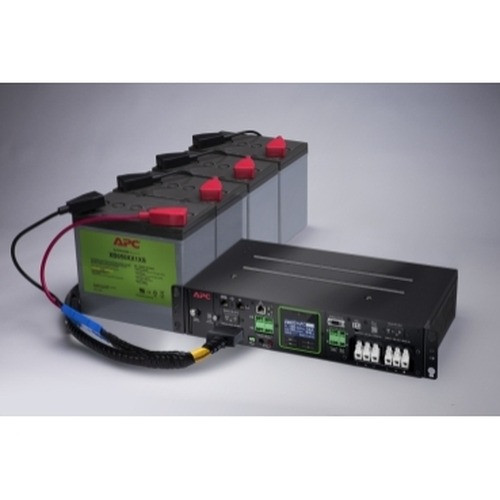

• External Battery System, 48V: Runtime is extended via external battery modules rather than sealed internal packs. This architecture lets you scale runtime independently of the UPS chassis and replace batteries without pulling the main unit — a practical advantage in rack deployments where internal-battery swaps require downtime.
• 55 dBA Acoustic Level: At 55 dBA, this unit is audible in a quiet office but appropriate for equipment rooms and industrial spaces. Factor this into rack placement decisions if the UPS is installed near workstations.
• IP20 Enclosure, CSA Certified: IP20 protection is suitable for indoor rack environments. CSA certification confirms compliance with Canadian and North American safety standards — relevant for facilities requiring third-party safety approval on electrical equipment.
• Operating Range: 0–10,000 ft, -40°F Storage: Rated for operation up to 10,000 ft altitude and storage down to -40°F — both relevant for high-altitude installations and cold-climate staging or shipping scenarios.

Integration & Compatibility

The XU1K3LLXXRCC ships with rack mounting hardware and brackets for standard 19-inch rack installation in a 3.5-inch (2U) profile. The hard-wire input and output require a licensed electrician for installation and must be wired to a circuit capable of supplying 21A continuous at 120V. The 30A switching current capacity means your upstream circuit breaker and wiring must be sized accordingly — do not assume a 20A circuit is sufficient for a permanent hard-wire installation at this draw.

The included Web/SNMP management card integrates with standard SNMP-based network management systems and supports remote monitoring and alerting. A temperature probe is included in the box, allowing ambient rack temperature monitoring alongside power data. The external 48V battery system requires compatible APC external battery modules — verify compatibility with your runtime requirements before commissioning. An integrated dust filter ships with the unit and should be included in your preventive maintenance schedule, particularly in environments with airborne particulates.

For broader context on APC by Schneider Electric power protection products, including extended battery modules and accessories compatible with this platform, review the full line. If you're sizing UPS capacity for a multi-camera or access control deployment, the UPS and power supply category covers the broader range of rack and tower options. For IP surveillance deployments requiring clean power for PoE switches and NVRs, pair this unit with a managed PoE network switch downstream to centralize power protection across your camera network. A UPS selection guide can help you match VA/W capacity to actual connected load — especially important when sizing for security infrastructure with mixed PoE and server loads.

What's in the Box

• 1x XU1K3LLXXRCC UPS unit
• 1x Dust filter (integrated)
• 1x Rack mounting hardware kit
• 1x Rack mounting brackets
• 1x Temperature probe
• 1x Web/SNMP Management Card (pre-installed)

Frequently Asked Questions

Q: What is the topology of the XU1K3LLXXRCC — is it line-interactive or true on-line?

A: The XU1K3LLXXRCC uses an on-line double-conversion topology. The inverter runs continuously, so connected equipment is always powered from the regenerated sine wave output and never directly exposed to raw utility power or switchover transients.

Q: Does the XU1K3LLXXRCC include a network management card, or is that a separate purchase?

A: A Web/SNMP Management Card is included in the box. You do not need to purchase a separate network card — remote monitoring, SNMP integration, and alarm management are available immediately upon network configuration.

Q: What is the input wiring requirement for the XU1K3LLXXRCC?

A: The unit uses a single hard-wire 3-wire (1PH + N + G) input connection with a maximum input current of 21A and a switching current capacity of 30A. Hard-wire installation requires a licensed electrician and an appropriately rated upstream circuit. This is not a plug-in unit.

Q: Can runtime be extended on the XU1K3LLXXRCC?

A: Yes, the XU1K3LLXXRCC uses an external battery system running at 48V. Runtime is determined by the external battery modules you pair with the chassis. The unit itself does not include internal battery modules — external battery expansion is the sole runtime source.

Q: What does the conformal coating on the XU1K3LLXXRCC protect against?

A: Conformal coating protects the internal PCBs against moisture, condensation, dust, and light chemical vapors — conditions common in manufacturing plants, transit facilities, and outdoor-adjacent equipment rooms. It significantly extends PCB service life compared to uncoated boards in the same environments.

Q: What is the rack space requirement for the XU1K3LLXXRCC?

A: The unit occupies 3.5 inches (88mm) of rack height, equivalent to 2U, in a standard 19-inch rack. Rack mounting hardware and brackets are included.

Ted Perry

The XU1K3LLXXRCC sits in a narrow product category that most integrators don't think about until they've already had a board failure in a humid plant room or a corrosive coastal environment. The conformal coating combined with on-line double-conversion at 1300W and hard-wire I/O is a purpose-specific combination — this isn't a repurposed office UPS with a coat of paint. The 88% efficiency in battery operation and a 432J surge rating with 40V let-through are the specs I'd point to when justifying the cost delta over a standard rack UPS for critical infrastructure sites.

Technical Highlights:

• On-Line Double-Conversion at 1300W: Continuous inverter operation means zero transfer time on utility loss — unlike line-interactive units with a 2–8ms switchover that some PLCs and real-time controllers detect as a sag. At 1300W with 0.7 PF tolerance and no derating, you're getting the full rated capacity across a realistic mixed load.
• External 48V Battery Architecture: Decoupling runtime from the UPS chassis is the right design for industrial deployments. You can size battery modules independently, replace them without a UPS swap, and scale runtime to your specific load profile — practical in installations where a 15-minute runtime requirement today may become 60 minutes after a system expansion.
• Integrated SNMP Card + Temperature Probe: Most comparable industrial UPS units charge separately for the management card. Having Web/SNMP and a temperature probe ship in the box means the monitoring infrastructure is ready on day one — relevant for facilities teams integrating UPS status into a building management system or NOC dashboard.

Deployment Considerations:

• The 21A continuous / 30A switching hard-wire input mandates a dedicated circuit sized to NEC requirements — confirm with your electrical contractor before rough-in. A 20A circuit is undersized; plan for 30A minimum upstream protection.
• IP20 enclosure rating means this unit is not suitable for open-air or splash-prone locations. Conformal coating protects the boards from atmospheric moisture, but the chassis itself has no ingress protection beyond finger-safe contact coverage. Install inside a rated enclosure if the environment demands it.

The XU1K3LLXXRCC is the right unit for a security operations center, transit authority equipment room, or industrial automation cabinet where utility power quality is poor, ambient conditions are challenging, and a standard commercial UPS would be a maintenance liability within 18 months.
