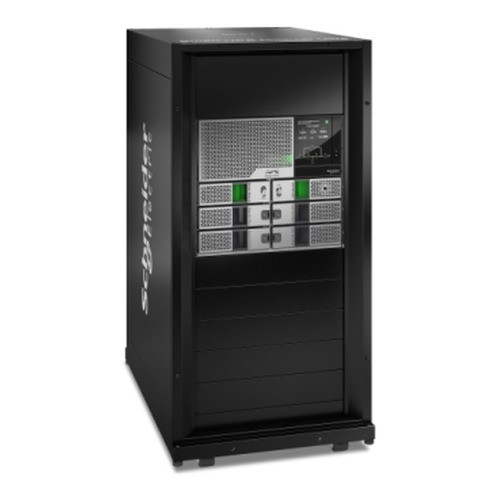

APC Smart-ups Modular Ultra 5KW Scalable to 15KW N+1 Redundant Tower 208/240V - SRYL5K15XLT24

APC by Schneider Electric SRYL5K15XLT24 Modular Ultra 5KW–15KW N+1 Redundant Tower UPS

Overview

The APC Smart-UPS Modular Ultra SRYL5K15XLT24 is a tower-format uninterruptible power supply that starts at 5KW and scales in-chassis to 15KW — a meaningful architecture for environments where power requirements grow incrementally and downtime is not an option. N+1 redundancy means one power module can fail without dropping your load, which changes the risk profile for server rooms, network closets, and distributed infrastructure deployments that cannot afford a maintenance window to swap a failed unit.

The 208/240V input/output voltage range suits North American and international commercial electrical infrastructure, making the SRYL5K15XLT24 a viable choice for data center rows, enterprise wiring closets, and mid-scale compute deployments where single-phase high-voltage feeds are standard.

Key Features

• 5KW to 15KW scalable output: Start with the capacity you need today and add modules without replacing the chassis — avoids over-provisioning capital spend upfront while protecting the infrastructure investment long-term.
• N+1 modular redundancy: A single failed power module does not interrupt output to connected equipment. For 24/7 facilities this means you can hot-swap or service a failed module during production hours without scheduling downtime.
• Tower form factor: Fits standard equipment rooms and wiring closets without requiring rack space. Useful in distributed deployments — branch offices, factory floors, surveillance head-end rooms — where a full rack cabinet is not available or practical.
• 208/240V input voltage: Matches commercial single-phase feeds common in North American server rooms and international installations, reducing the need for step-down transformers or custom electrical work.

Deployment Context

The modular, scalable design of the SRYL5K15XLT24 is particularly well-suited for phased infrastructure buildouts — surveillance command centers, edge compute nodes, and enterprise network equipment rooms where power load grows alongside headcount or device count. The N+1 architecture also makes it a rational pick for environments governed by uptime SLAs, where a non-redundant UPS would represent an unacceptable single point of failure. For power protection solutions in commercial and enterprise environments, this class of modular UPS sits between entry-level single-module units and fully fault-tolerant three-phase systems.

Buyers evaluating APC UPS systems in this power class should confirm total connected load in watts, not VA, before sizing — the 5KW starting point is the real power figure. If your load is under 3KW and redundancy is not a hard requirement, a non-modular unit in the Smart-UPS line will cost less and take up less floor space. If load will exceed 15KW or you need three-phase input, look at APC's Symmetra PX family instead.

Frequently Asked Questions

Q: What is the starting output capacity of the SRYL5K15XLT24?

A: The unit ships with 5KW of output capacity and scales within the same chassis to 15KW by adding power modules.

Q: Does the SRYL5K15XLT24 support N+1 redundancy?

A: Yes. The modular architecture supports N+1 redundancy, meaning one power module can fail without interrupting output to connected equipment.

Q: What input voltage does the SRYL5K15XLT24 require?

A: The unit is designed for 208/240V input, suitable for commercial single-phase electrical feeds in North American and compatible international installations.

Q: Is the SRYL5K15XLT24 rack-mountable?

A: The SRYL5K15XLT24 is a tower form factor unit. It is not a rack-mount chassis. If rack mounting is required, a different model in the APC Smart-UPS or Symmetra line should be evaluated.

Q: Can the SRYL5K15XLT24 be expanded after initial installation?

A: Yes. The chassis supports in-place capacity expansion from 5KW up to 15KW by adding power modules, so you are not required to replace the unit as load grows.

Karl Wilson

The SRYL5K15XLT24 is the right conversation starter when a customer says they need redundancy now but cannot commit to a full 15KW load today. The modular scaling architecture means you are not buying 15KW of iron on day one — you install 5KW, prove the deployment, and add capacity as the load actually materializes. That is a materially different capital conversation than a fixed-capacity unit.

Technical Highlights:

• Scalable capacity (5KW → 15KW): In-chassis module addition means no chassis swap as load grows — the initial installation investment is preserved through the full capacity lifecycle.
• N+1 redundancy: One power module failure does not drop the load. For environments running 24/7 with no scheduled maintenance windows, this is the difference between a hot-swap service call and an emergency outage.
• 208/240V single-phase: Matches the electrical feeds already present in most commercial server rooms and enterprise wiring closets — no step-down transformer required, no custom electrical work.

Deployment Considerations:

• Confirm total connected load in watts (not VA) before specifying this unit. The 5KW figure is real power — VA rating will be higher, but watts is what your equipment actually draws.
• Tower form factor only: if the destination room is a standard 19-inch equipment rack without floor space, this chassis does not fit. Evaluate a rack-mount APC model instead before quoting.

Best fit for phased infrastructure buildouts — surveillance command centers, edge compute rooms, or enterprise branch wiring closets where load is growing and a single point of failure in the power path is not acceptable.
