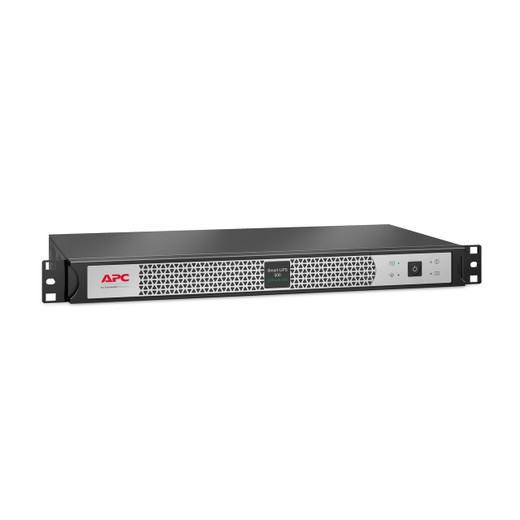

APC by Schneider Electric SCL500RMI1UC Line-Interactive Rackmount UPS
Overview
The APC by Schneider Electric SCL500RMI1UC is a 500VA/400W line-interactive UPS built around lithium-ion battery technology in a slim 1U rackmount chassis. It targets edge infrastructure, IP security systems, network closets, and compact server environments where a long-life, low-footprint power protection device is the right call over a traditional VRLA unit. The pure sine wave output means sensitive switching power supplies and active PFC equipment stay happy during a transfer event — no waveform-induced faults or unexpected shutdowns.
Key Features
- Lithium-Ion Battery Technology: Li-Ion cells deliver a significantly longer service life than conventional valve-regulated lead-acid batteries and charge faster after a discharge event. In a 1U form factor where battery swap access is tight, longer cell life means fewer maintenance windows and less downtime risk over a typical 5–7 year deployment cycle.
- 400W / 500VA Output Capacity: At 400W true power, this unit comfortably carries a pair of PoE security cameras, a managed access switch, and a small NVR simultaneously. Know your actual load before specifying — 400W leaves no headroom for adding a second NVR or dense PoE switch mid-rack.
- Pure Sine Wave Output: Delivers a clean sinusoidal waveform on battery, not a simulated or stepped approximation. This matters for any load with an active power-factor-correction (PFC) supply — virtually every modern server, NVR, and enterprise switch qualifies. Stepped-wave units can cause PFC supplies to fault on transfer; this unit won't.
- Line-Interactive Topology: The built-in automatic voltage regulation (AVR) corrects input voltage sags and surges within the 208–253V operating range without switching to battery. Utility voltage fluctuations common in commercial buildings are absorbed by the AVR stage, preserving battery cycles for actual outages rather than wasting them on brownouts.
- Wide Input Voltage Range (208–253V): Handles the full 230V single-phase spread seen in European, Middle Eastern, and Asia-Pacific installations. At the low end, 208V tolerance provides useful buffer in sites with long panel-to-rack cable runs where voltage drop is a real factor.
- Input Frequency Flexibility (47–63 Hz): Accepts both 50Hz and 60Hz utility input without reconfiguration. Useful in mixed-grid environments or sites where generator-sourced power drifts slightly from nominal frequency during startup.
- 510J Surge Energy Rating: The integrated surge protection absorbs 510 joules of transient energy — adequate for a typical commercial power environment. This is not a substitute for a dedicated whole-rack surge suppressor in high-lightning-exposure outdoor infrastructure deployments; plan accordingly.
- 4x IEC C13 Outlets: All four protected outlets use C13 connectors, matching the standard IEC C14 inlet on NVRs, managed switches, desktop workstations, and most rackmount gear sold in 230V markets. No adapters needed for standard rack equipment.
- SmartConnect Port: The built-in SmartConnect cloud management port enables remote UPS monitoring and management via APC's cloud platform without requiring a separate network management card. For distributed installations — retail branch offices, remote IDF closets, multi-site security deployments — this eliminates the need for local IT presence to check UPS status.
- 1U Rackmount / Tower Convertible Form Factor: Ships in a 1U rackmount profile that fits any standard 19-inch rack. The convertible design also supports free-standing tower deployment in environments without a rack — useful during staged rollouts or in small equipment rooms where a rack hasn't been installed yet.
Integration and Compatibility
The SCL500RMI1UC connects to downstream load equipment via four IEC C13 outlets — standard across rackmount NVRs, IP camera PoE switches, access control panels, and edge servers. The SmartConnect cloud port provides out-of-band management connectivity that integrates with APC's EcoStruxure IT platform for centralized power visibility across multiple sites. For shutdown automation, APC's PowerChute software (licensed separately) enables graceful OS-level shutdown sequencing before battery depletion — a necessary integration for any NVR or server load where abrupt power loss risks data corruption. The absence of a SmartSlot expansion bay means third-party SNMP network management cards cannot be installed; if your monitoring infrastructure relies on in-band SNMP polling rather than cloud, evaluate the SmartConnect integration fit before specifying.
Frequently Asked Questions
Q: What is the true power output of the SCL500RMI1UC, and how many devices can it realistically support?
A: The SCL500RMI1UC delivers 400W of true power. In a typical IP security deployment, this is sufficient for a small PoE switch (drawing 30–60W), an NVR (50–100W), and one or two connected workstations or access control panels. Always calculate your actual load at around 80% of rated capacity to maintain healthy runtime margins.
Q: Does the SCL500RMI1UC output a pure sine wave on battery, and why does it matter?
A: Yes, it produces a pure sine wave output during battery operation. This is important for equipment with active power factor correction (PFC) power supplies — which includes virtually all modern NVRs, servers, and managed switches. Stepped-wave UPS units can cause these supplies to fault or shut down on battery transfer; a pure sine wave unit eliminates that risk.
Q: Does the SCL500RMI1UC support a SmartSlot expansion card for SNMP monitoring?
A: No. The SCL500RMI1UC does not have a SmartSlot expansion bay. It includes a SmartConnect port for cloud-based monitoring via APC's EcoStruxure IT platform. If your monitoring infrastructure requires an in-band SNMP network management card, this model is not compatible — consider a SmartSlot-equipped model in the Smart-UPS family instead.
Q: What battery technology does the SCL500RMI1UC use, and what are the maintenance implications?
A: It uses a lithium-ion (Li-Ion) battery, which offers a longer service life and faster recharge times compared to traditional valve-regulated lead-acid (VRLA) batteries. This reduces the frequency of battery replacement maintenance windows — a meaningful operational benefit in hard-to-access 1U rack positions or remote branch deployments.
Q: What input voltage range does the SCL500RMI1UC support?
A: The unit accepts input voltages from 208V to 253V at 47–63Hz, covering the full 230V single-phase range used across European, Middle Eastern, and Asia-Pacific installations. The automatic voltage regulation stage corrects sags and surges within this range without switching to battery.
Q: Can the SCL500RMI1UC be deployed as a tower unit, or is it rack-only?
A: The SCL500RMI1UC supports both rackmount (1U in a standard 19-inch rack) and free-standing tower configurations. This flexibility makes it usable during staged deployments where rack infrastructure may not yet be in place.
The SCL500RMI1UC is one of the few sub-600VA rackmount units that pairs lithium-ion cells with a pure sine wave output in a 1U profile — and for IP security infrastructure, that combination matters more than the VA number on the label. I've seen too many NVRs fault on battery transfer because the UPS driving them produced a stepped waveform; the SCL500RMI1UC's pure sine output avoids that failure mode entirely.
Technical Highlights:
- Pure Sine Wave Output: Active PFC power supplies in modern NVRs and managed switches require a clean sine wave on battery transfer. The SCL500RMI1UC delivers it — no stepped approximation, no transfer-induced faults on PFC loads.
- Li-Ion Battery: Longer cell life than VRLA and faster recharge recovery. In a 1U slot where physical battery access is awkward, fewer replacement cycles over the deployment window is a real operational advantage.
- SmartConnect (No SmartSlot): Cloud management out of the box via the SmartConnect port is convenient for distributed multi-site deployments, but the lack of SmartSlot is a hard constraint — you cannot add an SNMP card later if your monitoring platform requires it. Decide this before you spec the unit.
Deployment Considerations:
- At 400W true power with four C13 outlets, this unit fits a focused single-rack security load: one PoE switch, one NVR, one access control panel. Attempting to extend it to a second NVR or a high-density PoE switch without load-calculating first risks exceeding the 400W ceiling and triggering overload shutdowns.
- The 510J surge rating is adequate for a conditioned commercial power environment but should not be the sole transient protection in outdoor cabinet deployments or sites with high lightning exposure. Pair with a dedicated surge suppression device upstream for those environments.
For a branch office or remote IDF closet running a compact IP camera system — say, a 16-channel NVR, an 8-port PoE switch, and an access control panel — the SCL500RMI1UC's 1U footprint, SmartConnect cloud monitoring, and Li-Ion longevity make it a well-matched power protection layer that won't need battery service calls for years.
