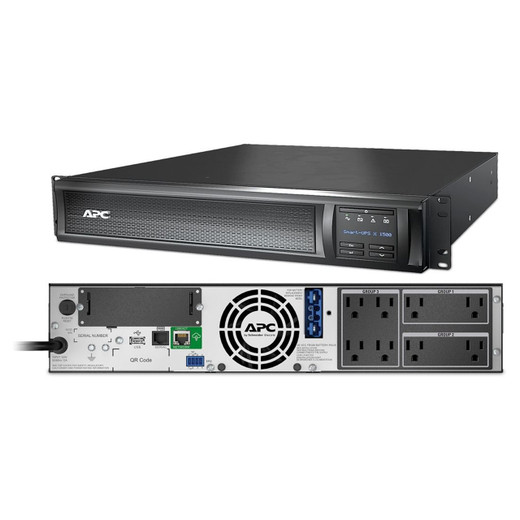

APC Smart-ups 1500VA LCD RM 1U 230V - SMT1500RMI1U

APC by Schneider Electric SMT1500RMI1U 1500VA Line-Interactive Rack UPS 1U 230V

Overview

The SMT1500RMI1U is a 1500VA / 1000W line-interactive uninterruptible power supply in a 1U rack form factor, purpose-built for IT closets, server rooms, and security infrastructure racks where space is at a premium and power quality is non-negotiable. Operating at 230V with a true sine wave output, it provides conditioned, regulated power to sensitive loads — network video recorders, PoE switches, access control panels, and servers — protecting against surges, sags, and complete outages without requiring a dedicated UPS shelf.

As a rack-mount UPS, the SMT1500RMI1U fits directly into a standard 19-inch enclosure at just 1U of height, making it a practical choice for deployments where every rack unit counts. Its line-interactive topology keeps it on utility power during normal operation while the battery remains in reserve — delivering better efficiency than double-conversion designs while still correcting voltage anomalies without switching to battery unnecessarily.

Key Features

• 1000W / 1500VA True Sine Wave Output: Unlike modified sine wave UPS units, the SMT1500RMI1U produces a pure sine wave under battery operation. This matters for any load with an active power factor correction (PFC) supply — which covers virtually every modern NVR, server, and managed switch. Modified sine wave can cause PFC supplies to run hot, fail prematurely, or shut down entirely. True sine wave eliminates that risk.
• Line-Interactive Topology with AVR: Automatic Voltage Regulation corrects under- and over-voltage conditions on the utility input without discharging the battery. In environments with brown-out-prone feeds or unstable grid conditions — common in older commercial buildings and warehouse facilities — AVR extends battery life by handling minor fluctuations in-line rather than burning battery cycles on them.
• 98.7% Efficiency: At 98.7% efficiency, this unit runs cool and draws minimal overhead power from the utility feed. In a 24/7 security rack running continuously, that efficiency delta versus a less efficient unit translates directly to reduced operating costs and less heat load in the enclosure — both meaningful in a densely packed rack.
• 540J Surge Energy Rating: The 540 joule surge suppression absorbs transient spikes before they reach downstream equipment. For a rack that includes PoE network switches and NVR storage, surge events are a leading cause of premature hardware failure — 540J provides meaningful protection without requiring a separate surge strip in the circuit.
• 4x C13 Output Outlets + 2 IEC Jumper Outlets: The four C13 outlets cover standard IEC equipment connections directly. The two additional IEC jumper outlets extend coverage for higher-outlet-count deployments. C14 input connector means standard IEC power cabling — no proprietary connectors to source.
• USB Connectivity for Graceful Shutdown: The USB management port enables integration with server OS shutdown software, allowing hosts to detect a power event and initiate graceful shutdown before battery is exhausted. For NVR deployments specifically, graceful shutdown prevents database corruption and filesystem errors that result from hard power loss.
• Auto-Restart: When utility power returns after an outage, the SMT1500RMI1U restarts automatically without manual intervention. This is essential for unmanned security installations — a guard station or remote camera closet cannot rely on staff to manually power systems back up after a grid restoration event.
• Audible Alarm with LCD Display: The front-panel LCD provides real-time status on input/output voltage, load percentage, battery charge, and runtime remaining. The audible alarm provides immediate notification of events without requiring remote monitoring software to be running — useful during commissioning and on-site service calls.
• 46 dB Noise Level: At 46 dB, this unit is quiet enough for office-adjacent installations — IT closets adjacent to open-plan offices, reception security desks, or control rooms where a louder unit would be disruptive during normal operation.
• 50/60 Hz Input Frequency: Accepts both 50 Hz and 60 Hz input, covering global utility standards. Relevant for multi-region deployments or equipment sourced internationally and deployed in mixed-frequency environments.

Integration and Compatibility

The SMT1500RMI1U fits into the broader APC Smart-UPS line, and is compatible with APC's PowerChute software for OS-level power management and graceful shutdown automation on Windows, Linux, and VMware environments. The USB interface is the connection point for PowerChute — no network card is required for basic shutdown functionality, though the unit supports optional network management cards if SNMP-based monitoring is needed across a managed infrastructure. Output voltage range of 220–240V covers standard European and international 230V equipment.

For security integrators deploying network video recorders in rack enclosures, pairing this UPS with an NVR and a managed PoE switch on a shared 1U rail is a common deployment pattern. The 1000W capacity supports a mid-density NVR, a 24-port PoE switch at partial load, and a managed access control panel simultaneously — though load calculations should be verified against the specific equipment draw before commissioning.

Frequently Asked Questions

Q: What is the output waveform of the SMT1500RMI1U under battery operation?

A: The SMT1500RMI1U produces a true sine wave output under battery power. This is important for equipment with active power factor correction (PFC) supplies — including most modern NVRs, servers, and managed switches — which require a sine wave to operate correctly and safely.

Q: Does the SMT1500RMI1U support automatic voltage regulation (AVR)?

A: Yes. The line-interactive topology includes Automatic Voltage Regulation that corrects input voltage sags and surges without switching to battery. This preserves battery life in environments with unstable utility power.

Q: What output outlets does the SMT1500RMI1U provide?

A: It provides 4 C13 IEC outlets plus 2 IEC jumper outlets, with a C14 IEC input connector. This covers standard rack-mount IT and security equipment connections.

Q: Does the SMT1500RMI1U restart automatically after a power outage?

A: Yes. Auto-restart is supported — when utility power returns, the unit powers back on without manual intervention. This is essential for unmanned or remotely monitored security installations.

Q: What interface does the SMT1500RMI1U use for graceful server shutdown?

A: A USB port is provided for connection to a host system running APC PowerChute or compatible UPS management software, enabling graceful OS shutdown before battery depletion.

Q: What is the efficiency rating of the SMT1500RMI1U?

A: The SMT1500RMI1U is rated at 98.7% efficiency, reducing operating costs and heat output in continuously powered rack deployments.

Eden Phillips

The SMT1500RMI1U is the unit I reach for when a rack needs reliable, space-efficient power protection and there is no room to negotiate rack units. At 98.7% efficiency and 1000W usable capacity in a 1U chassis, it threads the needle between density and runtime that most 1U UPS units fail to hit — and the true sine wave output means you are not gambling with PFC-based NVR and switch power supplies the way you would with a cheaper modified-sine unit.

Technical Highlights:

• True Sine Wave at 1000W: Delivers clean AC under battery, protecting PFC power supplies in modern NVRs and servers from the overheating and shutdown failures that modified sine wave outputs can cause.
• AVR Line-Interactive Topology: Corrects voltage anomalies in-line without discharging the battery — in older commercial facilities with unstable feeds, this meaningfully extends battery service life and reduces unnecessary battery cycling.
• 540J Surge Rating: Absorbs transient spikes upstream of the rack's most vulnerable equipment; eliminates the need for a separate surge strip in a well-designed rack power chain.

Deployment Considerations:

• Load budget carefully: 1000W is the real power figure, not 1500VA. A 24-port PoE switch at full load, an NVR with multiple spinning drives, and an access control panel can approach that ceiling — document actual equipment draw before commissioning.
• The USB shutdown interface requires a host with compatible software (APC PowerChute or NUT) physically connected via USB — if the NVR is the only host and it is the load being protected, verify the OS supports USB UPS integration before relying on graceful shutdown.

This unit is well-suited to a physical security rack in a commercial building IT closet: NVR, managed PoE switch, and access control server on a single 1U UPS with conditioned power, automatic restart, and front-panel visibility — without sacrificing the rack space a 2U unit would demand.
