APC by Schneider Electric RBC17 Concise Descriptor

Overview

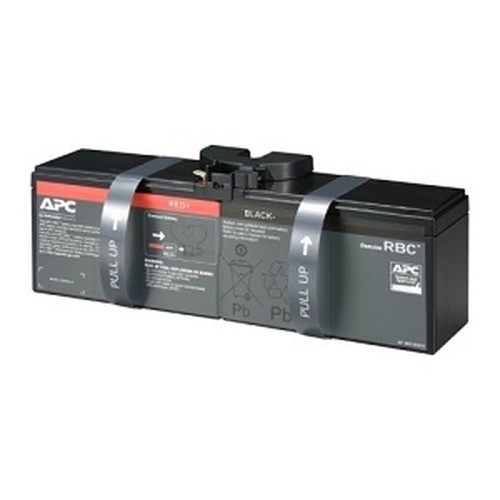

The APC RBC17 is a sealed lead-acid (SLA) battery cartridge designed to provide backup power for uninterruptible power supplies (UPS) and other DC-powered equipment. This unit delivers 12 volts and 9 amp-hours, offering a direct replacement for depleted batteries in compatible systems, ensuring continuity during power outages. Its standard F2/T2 terminal size (.25") facilitates straightforward installation in many common UPS form factors. The 3.84-inch depth is a critical dimension for ensuring it fits within the chassis of your existing UPS unit.

Compatibility

This RBC17 cartridge is engineered as a direct replacement for specific APC Back-UPS and other UPS series that utilize a 12V 9Ah battery. Verify your UPS model's battery requirements against the specifications of the RBC17. It is designed for systems where a single 12V 9Ah battery with F2 terminals is specified. Consult your UPS documentation to confirm compatibility with models such as the APC Back-UPS ES, Back-UPS Pro, and other series requiring this specific battery configuration.

Installation Notes

Ensure the UPS system is powered off and disconnected from AC power before attempting battery replacement. Discharge any residual power from the UPS. Handle the battery with care to avoid shorting the terminals. The F2 terminals require a .25" spade connector. Torque specifications for terminal connections, if provided by the UPS manufacturer, should be followed to ensure a secure connection without damaging the terminals. Always replace batteries in pairs if your UPS uses multiple batteries.
