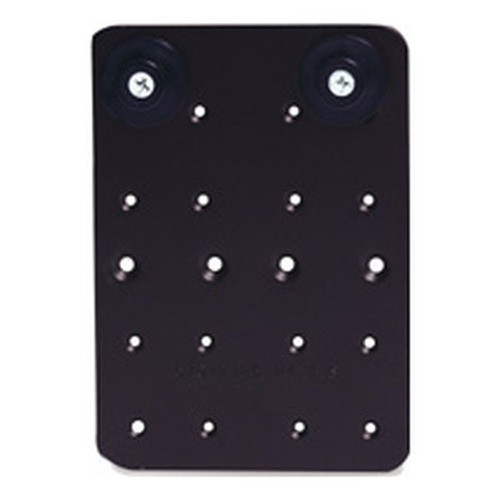

APC by Schneider Electric AR8416 Rack Mounting Plate

Overview

The APC AR8416 is a black rack mounting plate designed to provide a stable platform for mounting smaller equipment or accessories within a standard 19-inch rack enclosure. This plate resolves the issue of accommodating devices that lack built-in rack-mount ears or require a secure, flat surface for installation, often seen with network switches, patch panels, or specialized surveillance accessories that do not conform to typical rack-mount dimensions. Its compact form factor ensures it fits efficiently into limited rack space, making it ideal for network closets, server rooms, or AV installations where space is at a premium. The AR8416 model is built for durability and ease of integration into existing rack infrastructure.

Compatibility

This mounting plate is designed for use with standard 19-inch rack systems. It is compatible with any rack or cabinet that accepts standard rack-mount accessories. While not tied to specific equipment series, its 0.64 kg weight capacity makes it suitable for lighter devices such as small network switches, patch panels, cable management panels, or accessory mounting within a rack environment. It is a versatile component for any rack deployment requiring a flat mounting surface.

Installation Notes

Installation involves securing the plate to the front or rear mounting rails of a standard 19-inch rack using user-supplied rack screws and cage nuts. The plate itself measures 203 x 127 x 13 mm (W x D x H), requiring appropriate vertical space within the rack. Ensure the rack rails are aligned and stable before mounting. The plate's black finish provides a clean aesthetic that blends with most rack equipment.
