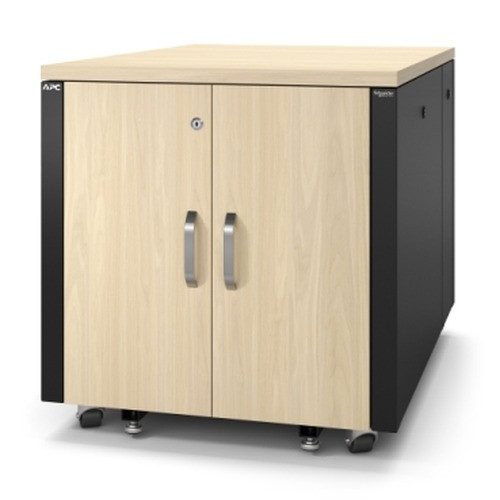

APC Netshelter Soundproof 12U Server Rack Enclosure Maple - AR4012A

APC by Schneider Electric AR4012A Soundproof 12U Server Rack Enclosure

Overview

The AR4012A is APC by Schneider Electric's 12U soundproof freestanding rack enclosure finished in Maple — a purpose-built solution for deployments where server noise bleeds into occupied office space and aesthetics matter as much as function. At 840 kg rated load capacity, this enclosure handles a fully loaded 12U of dense 2U servers, UPS hardware, and patching without flexing the frame. The wood veneer front door and Maple color finish make it visually compatible with executive offices, boardrooms, open-plan workspaces, and retail back-of-house environments where a standard black steel rack would stand out for all the wrong reasons.

Unlike a standard open-frame or perforated-steel rack, the AR4012A's acoustic construction is specifically engineered to attenuate server and storage fan noise — the kind of persistent broadband hum that degrades productivity in adjacent workspaces. If you're deploying edge compute, branch office networking, or a local NVR stack inside a room where people work, this enclosure addresses the noise problem at the source rather than requiring acoustic room treatment.

Key Features

• 12U Rack Capacity (19"/48.3 cm standard): Accommodates any standard 19-inch rackmount hardware — servers, NVRs, switches, patch panels, UPS units. At 12U, this is a compact but workable footprint for a branch office or edge site stack. Plan your U count carefully: a 2U UPS, 1U switch, and 1U patch panel consume 4U before servers go in.
• 840 kg Maximum Load Rating: That's over 1,850 lbs of supported equipment weight — far more than any realistic 12U installation will approach. This margin means you're not engineering to the limit with dense storage or battery UPS hardware.
• Soundproof Construction: The acoustic enclosure design directly reduces fan and drive noise transmitted into the surrounding space. For open-plan offices, retail floors, or classrooms running local compute, this is the reason to choose the AR4012A over a standard vented rack.
• Wood Veneer Front Door (Blind, Key Lock): The solid blind door with key lock provides both acoustic sealing and physical access control — no perforations means sound stays in, and the lock keeps unauthorized hands off equipment. The wood veneer finish matches furniture-grade office environments rather than announcing itself as IT infrastructure.
• Built-in Basic PDU (4× C13, 230 V / 50–60 Hz): An integrated basic PDU with four C13 outlets eliminates the need to source and mount a separate power strip. Four C13 outlets covers a modest stack of 1U servers, a managed switch, and a patch panel power supply. Note: this PDU is 230 V — confirm your local mains voltage before deployment. This is not a North American 120 V unit.
• Freestanding Form Factor (750 mm W × 1130.4 mm D × 785 mm H): The depth of 1130.4 mm (44.5 inches) accommodates full-depth 1U/2U servers without modification. Width at 750 mm provides airflow management space on the sides. Footprint planning note: at 785 mm tall (about 30.9 inches), this enclosure fits under standard ceiling heights including drop-ceiling office environments.
• Maple Color Finish: The light wood-tone finish integrates with office furniture rather than clashing with it — a genuine operational advantage when IT infrastructure shares space with customer-facing or executive environments.

Integration & Compatibility

The AR4012A accepts any standard 19-inch rackmount equipment — network video recorders, managed PoE switches, 1U/2U servers, patch panels, and UPS and power conditioning units all mount on the standard EIA-310 19-inch rail pattern. The built-in PDU uses IEC 60320 C13 outlets at 230 V, so connected equipment must accept IEC C14 power inputs and operate on 230 V mains — verify this for any North American equipment before ordering.

For deployments requiring more outlets or monitored/switched PDU capability, the basic built-in PDU can be supplemented or replaced with an aftermarket rack PDU mounted in a free U slot. Cable management accessories from the broader APC by Schneider Electric rack infrastructure line are designed to integrate with this enclosure family.

Cooling strategy: the soundproof enclosure restricts natural convection, so active cooling (rack-mounted fan trays or an in-row cooling unit) is strongly recommended for any continuously running compute load. Do not assume passive cooling is sufficient in a sealed soundproof enclosure.

Frequently Asked Questions

Q: What is the rack unit capacity of the AR4012A, and will it fit standard 19-inch equipment?

A: The AR4012A provides 12U of usable rack space on a standard 19-inch (48.3 cm) EIA-310 rail pattern. Any standard 1U or 2U rackmount hardware — servers, NVRs, switches, patch panels — mounts directly without adapters.

Q: Is the AR4012A compatible with North American 120 V power?

A: No. The built-in basic PDU is rated for 230 V AC at 50/60 Hz with IEC C13 outlets. This unit is designed for European and international mains voltage. North American 120 V deployments would require a step-up transformer or an alternate PDU configuration — verify your local mains voltage before purchasing.

Q: Does the soundproof enclosure require active cooling?

A: Yes. The sealed acoustic construction restricts airflow, so passive (convection) cooling is not sufficient for any continuously running compute load. Plan for rack-mounted fan trays or supplemental active cooling inside the enclosure to maintain safe operating temperatures for installed equipment.

Q: What is the maximum weight capacity of the AR4012A?

A: The AR4012A is rated for a maximum load of 840 kg (approximately 1,852 lbs). This far exceeds any realistic 12U equipment installation, providing substantial structural margin for dense server and UPS configurations.

Q: Can the front door be locked to restrict access?

A: Yes. The wood veneer front door includes a key lock, providing physical access control to installed equipment alongside the acoustic and aesthetic benefits of the blind door design.

Q: How many power outlets does the built-in PDU provide?

A: The integrated basic PDU provides 4× IEC C13 outlets at 230 V / 50–60 Hz. For installations requiring more outlets or advanced PDU features (metering, switching), an additional rackmount PDU can be installed in a free U slot.

Eden Phillips

The AR4012A addresses a real problem that standard rack deployments ignore: what happens when the server room is also the conference room, the executive suite, or the open-plan office. The 840 kg load rating with acoustic enclosure construction and a wood veneer Maple finish isn't a styling exercise — it's an infrastructure answer for edge and branch deployments where noise and aesthetics are legitimate engineering constraints, not afterthoughts.

Technical Highlights:

• 840 kg Load Rating in 12U: At over 1,850 lbs capacity for just 12 rack units, this enclosure provides structural headroom for worst-case dense configurations — dual-PSU servers, a 2U UPS, and a full patch array — without approaching the frame's limits.
• 230 V Built-in Basic PDU (4× C13): Four IEC C13 outlets integrated directly into the enclosure eliminates one sourcing task for European deployments, but this is an absolute blocker for North American 120 V mains — plan accordingly or budget for an alternate PDU.
• Blind Key-Locked Wood Veneer Door: The solid door does double duty: acoustic sealing (no perforation gaps) plus physical access restriction via key lock. In environments where aesthetics drive IT decisions, the Maple veneer finish is the detail that gets this approved by facilities or property management.

Deployment Considerations:

• Active cooling is non-negotiable in this enclosure. The acoustic sealing that makes it quiet also blocks convection — budget for at least one rack-mounted fan tray or verify that installed equipment's thermal envelope is compatible with restricted airflow before commissioning.
• The 1130.4 mm (44.5-inch) depth accommodates full-depth 1U/2U servers, but measure your doorway clearance before delivery — this enclosure will not clear a standard 36-inch interior door frame without removing the door from its hinges.

For a branch office edge stack, a retail back-office NVR and networking installation, or an executive floor comms room where noise complaints and aesthetics regularly kill standard rack deployments, the AR4012A is the enclosure that resolves both objections without compromise on structural or power capacity.
