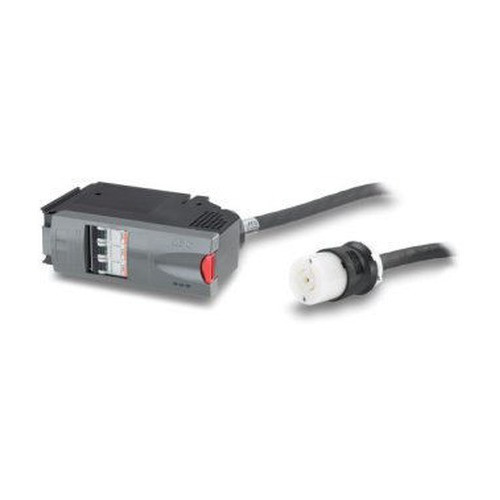

APC IT Power Distribution Module 3 Pole 5 Wire 20A L21-20 560CM - PDM3520L2120-560

APC by Schneider Electric PDM3520L2120-560 Concise Descriptor

Overview

The APC by Schneider Electric PDM3520L2120-560 is a 3-pole, 5-wire power distribution module designed for IT rack environments. It provides a reliable connection point for equipment requiring a 20A L21-20 twist-lock receptacle, ensuring consistent power delivery to critical network and surveillance gear. This module is suitable for deployments where standard power outlets are insufficient or where specific connector types are mandated for safety and operational integrity.

Compatibility

This power distribution module is designed to integrate with standard 19-inch IT racks and APC's NetShelter SX enclosures. It is compatible with equipment utilizing L21-20 twist-lock plugs, commonly found on higher-amperage network switches, servers, and advanced surveillance system components. It is intended for use with APC rack power distribution units (PDUs) and UPS systems that provide L21-20 input power.

Installation Notes

Installation requires a qualified electrician to ensure proper wiring and grounding. The module connects to the upstream power source via the 560CM (approx. 10 AWG) leads. The L21-20 receptacle is rated for 20A, and the upstream circuit breaker must be appropriately sized. Torque specifications for terminal connections should be followed per electrical code and manufacturer guidelines to ensure secure connections and prevent overheating.

What's in the Box

• 1x APC PDM3520L2120-560 Power Distribution Module
