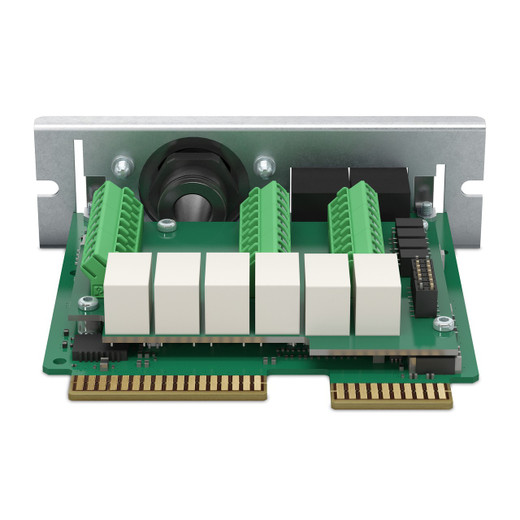

APC by Schneider Electric AP9614 Dry Contact I/O SmartSlot Card
Overview
The AP9614 is a dry contact input/output expansion card for APC SmartSlot-equipped UPS units up to 160kVA. It gives facilities teams and data center engineers direct environmental and equipment signaling capability — four opto-isolated input contacts to monitor external sensors or alarm conditions, and six fully isolated output relays to trigger downstream devices or notification systems. If your UPS needs to integrate with a building management system, generator transfer switch, environmental sensor, or custom alarming infrastructure, the AP9614 is the hardware interface that closes that loop without requiring a separate controller or additional panel space.
The card slots directly into the APC SmartSlot expansion bay found across APC's line of rackmount and tower UPS units, making it a zero-wiring, plug-in upgrade for UPS systems already in the field. It connects to the host UPS via the onboard Mini A USB connector, keeping the integration clean and avoiding the need for serial adapters or external converters.
Key Features
- 4 Opto-Isolated Input Contacts: Opto-isolation means the AP9614's logic circuitry is electrically decoupled from whatever sensor or alarm circuit you wire to the input. That matters in environments where ground loops, voltage spikes from HVAC or generator systems, or long cable runs could otherwise corrupt UPS firmware or trigger false alarms. Each input can monitor a discrete on/off signal — door contacts, smoke detectors, temperature sensors, or any dry-contact alarm source.
- 6 Fully Isolated Output Relays: Six output relay channels let you drive external loads or signaling devices — lights, sirens, PLC inputs, building automation controllers — independently and safely. Full relay isolation means each channel carries no shared voltage reference with the others or with the UPS, so a fault on one output circuit won't cascade to adjacent channels or the UPS management subsystem.
- UPS Compatibility up to 160kVA: The 160kVA ceiling covers the vast majority of single-frame UPS deployments: from small server room units (1–3kVA) through medium data center frames (20–80kVA) and into large three-phase systems. For UPS installations at or below that threshold, the AP9614 is a validated fit without guesswork on signal compatibility.
- SmartSlot Interface: SmartSlot is APC's dedicated expansion architecture — a purpose-built card bus, not a repurposed PCIe or USB slot. Cards inserted into SmartSlot communicate directly with UPS firmware, enabling the UPS to act on relay states and input triggers as part of its native event management rather than as an external afterthought. This is the integration point for any serious UPS automation.
- Mini A USB Connector: The onboard Mini A USB connector handles the host-side communication link. It keeps cabling orderly in dense rack environments and avoids the RS-232 adapters that older UPS interface cards often required. Verify your host UPS management software version supports the AP9614 before deploying — SmartSlot cards require compatible firmware on the UPS side.
Integration & Compatibility
The AP9614 is designed for APC SmartSlot-equipped UPS platforms. SmartSlot bays are present across APC's Symmetra, Smart-UPS, and Silcon product lines — check your specific UPS model's documentation to confirm SmartSlot availability before ordering. The card interfaces with APC's PowerChute network shutdown software and compatible network management cards when both are installed in the same UPS, enabling centralized event logging and automated shutdown sequencing tied to input contact states.
For facilities integrations — particularly where the AP9614 outputs are wired to building automation or SCADA systems — verify that the relay contact ratings match your load requirements. The card is purpose-built for signal-level dry contact switching, not for switching mains voltage loads directly.
If your deployment involves generator paralleling, environmental monitoring, or integration with a power management platform, the AP9614 provides the discrete I/O layer that bridges the UPS to those external systems without requiring a dedicated relay controller in the rack.
Frequently Asked Questions
Q: What UPS models is the AP9614 compatible with?
A: The AP9614 is compatible with APC UPS systems equipped with a SmartSlot expansion bay, up to 160kVA. This includes models in the Smart-UPS, Symmetra, and Silcon product lines. Confirm your specific UPS has an available SmartSlot before ordering.
Q: What is the difference between opto-isolated inputs and fully isolated outputs on the AP9614?
A: Opto-isolation (on the 4 inputs) uses an optocoupler to electrically decouple the input circuit from the card's logic — light bridges the signal, so no direct electrical path exists. The 6 outputs use relay isolation, where physically separate relay contacts switch the output circuit independently from the card's control side. Both protect the UPS electronics from voltage transients and ground loops on the wired circuits.
Q: Can the AP9614 be used to trigger external alarms or building automation systems?
A: Yes. The 6 fully isolated output relays are intended for exactly this use case — you can wire them to BAS/BMS controllers, annunciator panels, PLCs, or dry-contact alarm inputs on other equipment. These are dry-contact signal-level relays; they are not rated for switching mains voltage loads.
Q: Does the AP9614 require any software to function?
A: Basic relay and contact operation is hardware-driven through the SmartSlot interface. For event-driven automation — triggering outputs based on UPS state changes or logging input contact transitions — APC's PowerChute software or a compatible network management card installed in the same UPS is required.
Q: What connector does the AP9614 use to connect to the UPS?
A: The AP9614 uses a Mini A USB connector for its host-side communication link to the UPS management subsystem.
The AP9614 is one of those cards that sits quietly in a rack for years doing exactly what it was installed to do — and the 4 opto-isolated inputs are the reason I recommend it over generic relay expanders. Opto-isolation is non-negotiable when you're pulling sensor wires across a machine room floor where ground potential differences between panels are a real concern. The AP9614's architecture keeps that noise off the UPS backplane entirely.
Technical Highlights:
- 4 Opto-Isolated Inputs: Electrically decouple external sensor circuits from UPS logic — essential when monitoring door contacts, water sensors, or smoke detectors wired across long runs in mixed-voltage environments.
- 6 Fully Isolated Output Relays: Six independent dry-contact channels let you drive BAS controllers, annunciator panels, or PLC inputs simultaneously without shared voltage reference — a fault on one output won't affect the others or the UPS management subsystem.
- 160kVA UPS Ceiling: Covers single-frame UPS deployments from small server rooms through large three-phase data center frames — most enterprise UPS installations fall under this threshold, making the AP9614 a reliable fit without consulting compatibility matrices.
Deployment Considerations:
- The AP9614 requires an available SmartSlot bay in the host UPS — verify your APC model has an open slot before ordering, as some UPS configurations ship with the slot occupied by a network management card.
- Output relays are signal-level dry contacts only; do not wire them directly to mains voltage loads. Size your wiring and downstream devices to the relay's contact rating, not to the UPS output capacity.
This card is well-suited for data centers and critical facilities integrating APC UPS systems into a building automation or SCADA platform — specifically where you need the UPS to both receive environmental alarm inputs and drive downstream signaling outputs from a single, firmware-native expansion card rather than a separate relay controller consuming additional panel space.
