APC 17 Rack LCD Console - United Kingdom - AP5717UK

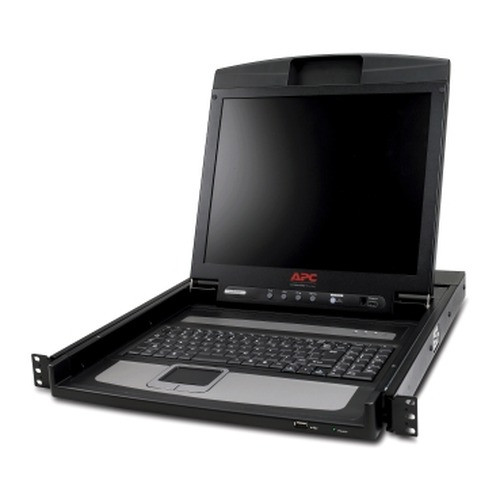

APC by Schneider Electric AP5717UK 17-Inch 1U Rack LCD Console

Overview

The AP5717UK is a 1U rackmount LCD console built for data center and server room environments where local keyboard-video access matters — whether for initial server provisioning, emergency out-of-band management, or routine maintenance tasks that don't warrant pulling a separate KVM cart. At 482 × 614 × 44 mm, it folds flush into a standard 19-inch rack and disappears when not in use, keeping rack space and cable runs tidy. The UK keyboard layout makes this the correct variant for British and Irish deployments; do not substitute the standard AP5717 if your team expects a UK key map.

The 17-inch LCD panel delivers a usable work surface in a single rack unit — a meaningful upgrade over cramped 15-inch alternatives common in older rail-mount consoles. Pair it with a compatible KVM switch to extend access across multiple servers from the same 1U drawer without adding more display real estate to the rack.

Key Features

• 17-inch (43.2 cm) LCD display in 1U: A full 17-inch diagonal packed into a single rack unit means you get a practical working viewport without sacrificing the second U that larger consoles consume. Useful in dense racks where every unit costs real estate.
• Dual interface — PS2 and USB: Supporting both PS2 and USB keyboard/mouse connections means the AP5717UK works with legacy servers that lack USB HID support and modern systems alike. You won't need an adapter or a separate console for mixed-generation hardware in the same rack.
• Universal AC input voltage (100–240 V): The internal power supply handles the full global AC range, so this unit tolerates both standard 230 V UK mains and 100 V environments without modification. Useful for organizations with global lab or data center standards.
• 1U rack height: A single rack unit footprint keeps the console from eating into server or switch density. In a 42U rack with a high server count, the difference between a 1U and 2U console is a real trade-off — this unit resolves it in favor of density.
• Standard 482 mm (19-inch) rack width: Fits directly into any EIA-standard 19-inch rack without adapter brackets. The 614 mm depth is well within the clearance of most modern server rack enclosures, but verify against shallow-depth wall cabinets before ordering.
• Black finish: Matches standard rack equipment aesthetics — minor but relevant in customer-facing or co-location environments where visual consistency matters.
• Broad certification coverage: The AP5717UK carries C-tick, CCC, EN 55022 Class A, EN 55024, EN 60950, FCC Part 15 Class A, GOST, IEC 60950, Industry Canada, NOM, UL Listed, and VDE certifications. That breadth covers EMI/EMC compliance across the UK, EU, North America, Australia, and Russia — relevant for multinational deployments or equipment imported into regulated facilities.

Integration and Compatibility

The AP5717UK is designed to integrate with APC rack KVM switches and compatible third-party KVM infrastructure. The dual PS2/USB interface makes it a practical front-end for mixed server environments — older rack-mount servers with PS2 connectors and newer USB-only hardware can share the same console drawer without an intermediate adapter layer.

At 482 × 614 mm, the unit fits standard 19-inch two-post and four-post open-frame racks as well as enclosed server cabinets. Verify that your cabinet's usable depth accommodates 614 mm of console plus any rear cable management clearance required by your KVM switch. For deeper server racks in enclosed rack cabinets, depth clearance is rarely a concern; for wall-mount or shallow enclosures, measure before ordering.

The 100–240 V input voltage and the suite of regional certifications — including EN 55022/55024, IEC 60950, UL Listed, and VDE — mean this console can be commissioned in UK, EU, North American, and Australian facilities without sourcing region-specific variants. The GOST certification extends that reach to Russian Federation deployments. Review your facility's compliance requirements against the certification list before specifying for regulated environments.

For organizations building out a managed server infrastructure, review our KVM over IP options if remote out-of-band access is a parallel requirement — the AP5717UK covers local physical access; IP-based KVM handles remote management without physically opening the rack.

Frequently Asked Questions

Q: What is the keyboard layout on the AP5717UK?

A: The AP5717UK is the United Kingdom variant of the APC 17-inch rack LCD console and ships with a UK keyboard layout. If you require a US QWERTY layout or another regional layout, verify the correct regional model number before ordering.

Q: Does the AP5717UK fit a standard 19-inch rack?

A: Yes. The unit is 482 mm wide and occupies 1U (44 mm) of rack height, designed for direct mounting in any EIA-standard 19-inch rack enclosure. The depth is 614 mm — confirm your rack or cabinet's internal depth accommodates this before installing.

Q: What interface types does the AP5717UK support for keyboard and mouse?

A: The AP5717UK supports both PS2 and USB keyboard/mouse interfaces. This dual-interface design lets you connect it to legacy servers with PS2 connectors and modern USB-only systems without needing an adapter.

Q: What is the input voltage range for the AP5717UK?

A: The internal AC adapter accepts 100 V to 240 V input, covering standard UK and EU mains (230 V) as well as 100–120 V environments. No external transformer or power conditioning is required for standard UK data center installations.

Q: What certifications does the AP5717UK carry?

A: The AP5717UK holds C-tick, CCC, EN 55022 Class A, EN 55024, EN 60950, FCC Part 15 Class A, GOST, IEC 60950, Industry Canada, NOM, UL Listed, and VDE certifications — covering EMI/EMC and safety compliance for UK, EU, North America, Australia, and Russia.

Q: Can the AP5717UK be used with third-party KVM switches?

A: The AP5717UK uses standard PS2 and USB interfaces compatible with many KVM switch vendors. Verify compatibility with your specific KVM switch model before deployment, as signal and voltage characteristics can vary across manufacturers.

Ted Perry

The AP5717UK earns its place in a UK data center rack primarily on two merits: it packs a genuine 17-inch (43.2 cm) LCD into a single rack unit, and it handles both PS2 and USB connections simultaneously — which matters more than it sounds when you're managing a mixed fleet of servers that spans two hardware generations in the same enclosure.

Technical Highlights:

• 1U, 17-inch display: Most 17-inch rack consoles consume 1.5U or 2U. Getting full 17-inch diagonal in exactly 44 mm of rack height is the hardware reason to choose this unit over a competing larger-format console in a fully populated 42U rack.
• Dual PS2 + USB interface: Field reality: legacy rack servers — particularly those from the early-to-mid 2000s — expose PS2 keyboard/mouse connectors only. The AP5717UK bridges that gap without requiring a PS2-to-USB adapter inline, which adds one more failure point to an already infrequently-used emergency access path.
• 100–240 V universal input: In multi-tenant co-location facilities or mixed-power-standard server rooms, not having to spec a separate transformer or power strip per console is a genuine operational simplification. The full voltage range is handled internally.

Deployment Considerations:

• The 614 mm depth is the spec most likely to cause a fit problem in wall-mount shallow cabinets (typically 400–500 mm usable depth). Measure before ordering, especially for comms room or IDF deployments.
• This is the UK-layout variant. Ordering the wrong regional model is a common mistake in centralized procurement when the buyer specs from a US product sheet — confirm AP5717UK explicitly if UK keyboard map is required.

Best suited for UK-based data centers and server rooms running a mixed PS2/USB server estate where local physical console access is an infrequent but critical requirement — co-location facilities, government IT rooms, and financial-sector server suites where out-of-band access compliance is audited.
