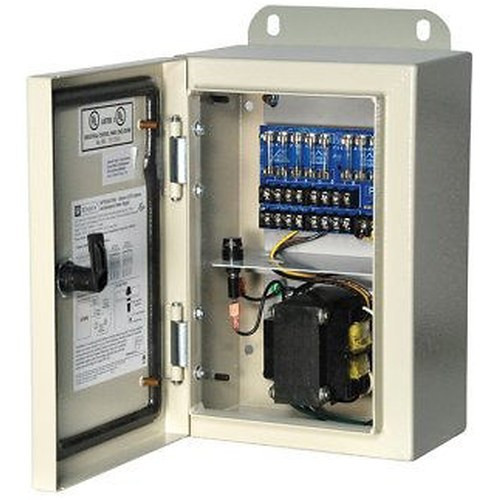

Altronix WPTV248175UL 8-Output 24VAC Outdoor Power Supply

The Altronix WPTV248175UL is an 8-output 24VAC power supply rated for 7A maximum current, designed for outdoor security camera and access control installations. This UL Listed and CE-approved unit converts 115VAC input to regulated 24/28VAC output across eight individually fused circuits, providing reliable power distribution in demanding environmental conditions.

Key Features

  • 8 fused outputs for independent circuit protection
  • 24/28VAC regulated output voltage
  • 7A maximum current capacity
  • 115VAC input voltage
  • UL Listed and CE approved
  • Rugged outdoor-rated metal enclosure
  • Lifetime Limited Warranty

Applications

  • CCTV camera power distribution in surveillance systems
  • Access control device powering at remote locations
  • Outdoor gate operators and intercom systems
  • Multi-camera field installations requiring distributed power

Specifications

  • Input Voltage: 115VAC
  • Output Voltage: 24/28VAC
  • Maximum Current: 7A
  • Number of Outputs: 8 fused outputs
  • Enclosure Dimensions: 12"H x 8"W x 6"D
  • Certifications: UL Listed, CE
  • Warranty: Lifetime Limited Warranty
Expert Analysis
Specifications
Approvals: UL Listed, CE
Enclosure Dimensions: 12"H x 8"W x 6"D
Input Voltage: 115VAC
Output Voltage: 24/28VAC
Max Current: 7A
Number of Outputs: 8 fused outputs
Warranty: Lifetime
Type: Power Supply
Environment Rating: Outdoor
Mount Type: Pole
Voltage AC: 24VAC
Voltage DC: 12VDC
