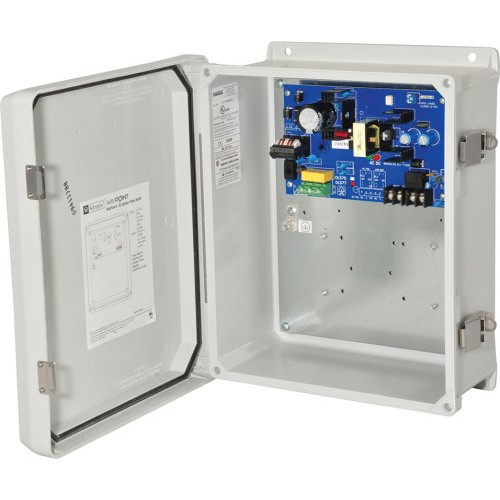

Altronix WAYPOINT3 Outdoor 12VDC Power Supply
The Altronix WAYPOINT3 is a compact outdoor-rated DC power supply engineered for remote security deployments where standard indoor equipment fails. It converts 115VAC mains input into stable 12VDC output at up to 6A maximum current—sufficient to power remote surveillance cameras, access control readers, gate operators, and weather-monitoring equipment mounted beyond the reach of climate-controlled spaces. The outdoor-rated enclosure withstands direct rain, dust, and temperature extremes without voltage sag or thermal shutdown, making it a foundational choice for field infrastructure that demands reliability when service calls aren't practical.
Key Features
- Single 12VDC Output, 6A Maximum Current: Delivers up to 72W of continuous power—enough for a typical 4–8MP outdoor camera or multiple access readers without overload risk.
- 115VAC Input Voltage: Operates from standard North American mains. Confirm your regional AC availability before deployment; 230VAC equipment may require a separate step-down transformer.
- Outdoor-Rated Enclosure: Weather-resistant construction means rain, dust, and UV exposure won't corrode internal components or degrade solder joints. Skip this if you need submersion protection—that requires IP67 or higher, typically a potted enclosure design.
- DC Charger Functionality: Integrates with battery backup systems, allowing the WAYPOINT3 to maintain and float-charge auxiliary batteries during mains operation. Useful for gate operators and access control that require UPS fallback.
- Compact Form Factor: Sized for pole-mount or wall-mount installation in tight spaces. Verify mounting hole patterns match your bracket hardware before ordering.
- CE Certification: Meets European electromagnetic compatibility and safety standards, supporting international deployment and vendor contract requirements.
- Lifetime Limited Warranty: Coverage against defects in materials and workmanship—review the warranty document for exclusions related to environmental damage or misuse.
Integration & Compatibility
The WAYPOINT3 pairs with any 12VDC camera, reader, or gate operator that draws 6A or less. It does not include a built-in surge protector or UPS function; consider adding a surge-suppression module if your site experiences frequent lightning or power-grid noise. The single output means you cannot split power to independent circuits without external distribution hardware. If you require multiple independent 12VDC feeds with individual protection, step up to a larger multi-channel Altronix supply in the same outdoor power family.
Typical Deployment Scenarios
- Remote gate operator requiring mains backup to a battery bank.
- Outdoor camera field site where a dedicated AC panel or solar charge controller is not feasible.
- Weather station or environmental monitoring equipment located far from conditioned space.
- Temporary or semi-permanent surveillance setup (parking lot perimeter, construction site) where weatherproof simplicity trumps feature density.
Frequently Asked Questions
Q: What is the maximum load current for the WAYPOINT3?
A: The WAYPOINT3 is rated for 6A maximum continuous output at 12VDC, delivering up to 72W. If your equipment draws more, the supply will not compensate and may trigger internal shutdown. Check camera and reader power budgets before purchase.
Q: Does the WAYPOINT3 include a battery backup or UPS feature?
A: No. The WAYPOINT3 is a DC power supply with charging capability, meaning it can maintain and float-charge an external battery while mains power is present. It does not provide automatic switchover or runtime backup—you must add a separate battery and charge controller if UPS operation is required.
Q: Can I use the WAYPOINT3 with a 230VAC or 240VAC input?
A: No. The WAYPOINT3 is specified for 115VAC input only. Using 230VAC or 240VAC will damage the internal components and void the warranty. If your site has only 230VAC available, you must deploy a separate step-down transformer or choose a different supply with multi-voltage input capability.
Q: Is the WAYPOINT3 suitable for wet environments such as a car wash or chemical treatment plant?
A: The enclosure is weather-resistant (outdoor-rated), meaning it handles direct rain and dust. However, it is not rated for continuous high-pressure spray, submersion, or chemical exposure. For car washes or corrosive environments, consult the manufacturer for a potted or sealed variant.
Q: What mounting options are available for the WAYPOINT3?
A: The WAYPOINT3 is designed for pole mount or wall mount installation. Confirm the hole pattern and fastener size with your mounting bracket before purchase. The datasheet contains mechanical dimensions and hole locations.
Q: Does the WAYPOINT3 meet NDAA Section 889 compliance requirements?
A: The available evidence does not specify NDAA Section 889 compliance. Contact the manufacturer or a qualified integrator if your contract requires NDAA certification for this supply.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Altronix WAYPOINT3 on multiple gate and camera backbone projects where mains AC reaches a remote location but standard desktop supplies would corrode or fail in weeks. The 6A single output at 12VDC and weather-resistant enclosure are the core value here—you get reliability without overengineering cost.
Technical Highlights:
- 6A at 12VDC (72W maximum): Covers most outdoor 4–5MP cameras and dual access readers without margin concerns. Load planning matters; don't assume the full 6A is available if you'll also charge a battery.
- 115VAC input only: This is a regional constraint, not a limitation—confirm your site has single-phase US mains available. If you're in a 230VAC region, this isn't the right choice.
- DC charger function: Float charging external batteries is genuinely useful for gate backup; however, there's no built-in charge controller, so you're responsible for battery voltage compatibility and over-charge prevention.
- CE certification: Meets EU EMC and safety directives; valuable for international expansion or vendor contract compliance, though not a substitute for surge protection on high-noise AC feeds.
Deployment Considerations:
- The WAYPOINT3 lacks integrated surge suppression—if your site experiences lightning activity or power-grid switching noise, add a surge module in the AC path before the supply input.
- Single output means no circuit isolation. If you're powering both a critical gate reader and a camera from the same 6A budget, consider a multi-channel variant from the Altronix outdoor line if load diversity makes that safer.
- Weather-resistant enclosure handles rain and dust, but confirm pole-mount fasteners and any ice load in your climate; oversized ice buildup can strain mounting hardware.
The WAYPOINT3 is the right fit for straightforward remote power jobs where simplicity and weather resistance matter more than advanced features. Gate backup, outdoor camera feeds, and environmental monitoring are natural fits. Avoid it if your load exceeds 6A or if you need multi-output distribution or automatic UPS switchover—step up to a larger Altronix supply in those scenarios.
