Altronix WAYPOINT17AU Outdoor CCTV Power Supply

Overview

The Altronix WAYPOINT17AU is a dual-output, outdoor-rated CCTV power supply designed for distributed video surveillance systems requiring stable AC voltage distribution. Built for security integrators and telecom installers, this unit delivers 24/28VAC output with fused circuit protection across two independent channels. The WAYPOINT17AU accepts either 115VAC or 220VAC input, making it suitable for diverse deployment environments and international installations.

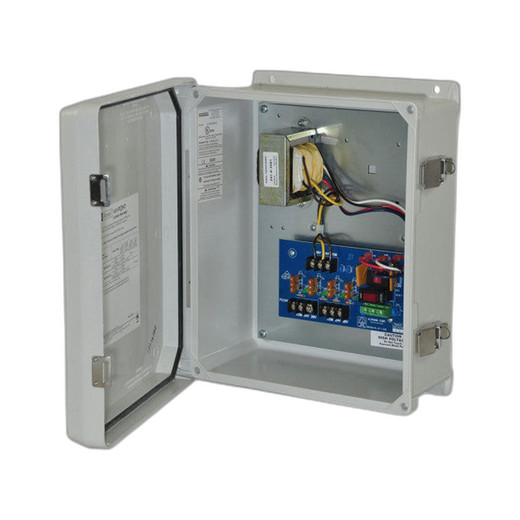

Housed in a weatherproof WP3 enclosure, the WAYPOINT17AU provides reliable power conditioning in outdoor cabinet, wall-mount, and pole-mount applications. The unit is UL Listed and CE approved, meeting North American and European compliance standards required for commercial security installations.

Key Features

• Dual Fused Outputs: Two independent 24/28VAC output channels with individual fusing for circuit protection and isolation
• 7.25A Output Current: Each output delivers up to 7.25 amperes, supporting multiple downstream CCTV cameras, pan-tilt-zoom units, and access control devices
• Flexible Input Voltage: Accepts 115VAC or 220VAC primary input, eliminating compatibility barriers across regional electrical standards
• WP3 Weatherproof Enclosure: Outdoor-rated metal enclosure rated for mounting in exposed environments, including rooftops and exterior walls
• UL Listed: Complies with Underwriters Laboratories safety and performance standards for power distribution equipment
• CE Marked: Meets European Union directives for electrical safety and electromagnetic compatibility

Integration and Deployment

The WAYPOINT17AU integrates seamlessly into analog and hybrid CCTV systems where centralized AC power distribution is required. The dual-output configuration supports separate power branches for camera circuits, PTZ control circuits, or access control auxiliary loads. Fused outputs protect connected equipment from short-circuit faults and allow technicians to isolate failures without powering down the entire system.

The unit's flexible input voltage rating makes it suitable for installations across North America (115VAC standard) and international markets (220VAC standard). Security integrators can standardize on a single power supply model across multiple geographies, reducing inventory complexity.

Typical deployment scenarios include rooftop cabinet installations, utility pole-mounted enclosures, and perimeter fence-line power distribution. The outdoor-rated WP3 enclosure provides environmental protection from rain, UV exposure, and temperature fluctuation common in surveillance system installations.

Technical Specifications

Output Voltage: 24/28VAC | Output Current: 7.25A per channel (2 outputs) | Input Voltage: 115/220VAC selectable | Enclosure Rating: WP3 weatherproof metal | Approvals: UL Listed, CE marked

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Altronix WAYPOINT17AU in distributed CCTV systems where remote power conditioning is critical. This unit fills a specific role: outdoor AC voltage regulation and circuit isolation for camera arrays and PTZ control loops. The fused dual-output design is straightforward and reliable—no firmware, no network dependencies, no single points of failure beyond the transformer itself.

Technical Highlights:

• Dual Independent Circuits: The two fused outputs allow you to power separate camera branches or isolate PTZ control from camera power, reducing noise coupling and simplifying troubleshooting.
• Input Voltage Flexibility: The selectable 115/220VAC input eliminates the need for separate SKUs across North American and international deployments, simplifying logistics.
• 7.25A per Channel: Sufficient headroom for typical analog camera loads (200–400 mA per camera) plus PTZ or access control auxiliary power, supporting 15–20 camera circuits per output with margin.

Deployment Considerations:

• Verify local electrical codes for outdoor cabinet grounding and bonding; the WP3 enclosure requires proper earth connection for safety.
• Plan fuse sizing based on connected load; field-replaceable fuses should match the design current of downstream equipment to avoid nuisance trips.

The WAYPOINT17AU is a workhorse for large-scale surveillance systems where you need simple, hardened power distribution without network overhead. It's a solid choice for integrators who value reliability and modularity over feature density.
