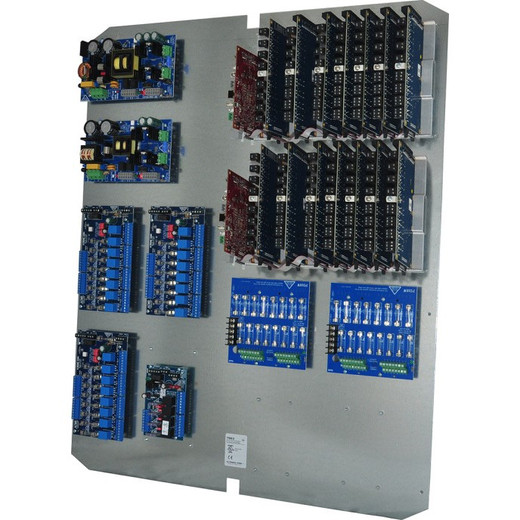

Altronix TSS3 Trove3 Modular Backplane

Altronix TSS3 Trove3 Backplane System

Overview

The Altronix TSS3 is a Trove3 backplane designed to serve as a central integration point for modular security system architectures. Built for system integrators and IT managers deploying converged security infrastructure, the TSS3 Trove3 backplane provides a standardized platform for connecting Altronix and Lenel-S2 compatible modules within a unified system framework.

This backplane architecture enables security professionals to build scalable, modular access control and integrated security solutions without requiring separate proprietary controllers for each functional layer. The TSS3 supports hot-swappable module insertion, allowing technicians to configure, upgrade, or maintain individual functional cards while preserving overall system uptime.

Key Features

• Trove3 Backplane Architecture: Modular slot-based design accommodates multiple compatible expansion cards and interface modules for distributed security functions
• Altronix and Lenel-S2 Compatibility: Engineered to work seamlessly with certified Altronix controllers and Lenel-S2 access control software ecosystem, reducing integration complexity and deployment time
• Hot-Swappable Module Support: Insert or remove functional cards without powering down the backplane, minimizing system downtime during maintenance or reconfiguration
• Centralized Integration Point: Consolidates multiple security functions—access control, alarm monitoring, and data distribution—into a single managed platform
• Scalable Design: Add or remove modules to match growing facility requirements without replacing core infrastructure
• Standard Industrial Mounting: Rack-mount compatible form factor suitable for security operations centers, control rooms, and distributed security closets

Integration & Compatibility

The TSS3 Trove3 backplane is specifically designed to integrate with Altronix power supplies, control modules, and Lenel-S2 certified access control cards. This compatibility ensures that security integrators can leverage existing relationships with Altronix hardware while deploying Lenel-S2 software platforms across multiple facilities with consistent hardware foundations.

When paired with appropriate Altronix power distribution and Lenel-S2 application servers, the TSS3 provides a standardized backbone for campus-wide access control deployments, multi-building security architectures, and complex integration scenarios where multiple security functions must operate through a single management interface.

Integration with facility management systems, video management platforms, and third-party access control applications is supported through standard protocols and interface modules compatible with the Trove3 slot architecture.

Deployment Considerations for Security Integrators

The TSS3 Trove3 backplane is recommended for mid to large-scale security deployments where modular architecture, long-term scalability, and compatibility with established Altronix and Lenel-S2 ecosystems are prioritized. Typical deployment scenarios include multi-tenant office buildings, healthcare facilities, education campuses, and enterprise data centers requiring centralized yet distributed security control.

Integrators should plan for adequate power distribution, network connectivity to Lenel-S2 application servers, and module inventory to support both active deployment and spare capacity for rapid maintenance response.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Altronix TSS3 represents a practical solution for integrators who need to deploy modular security infrastructure without vendor lock-in at the controller level. During planning phases, I've found the TSS3 Trove3 backplane particularly valuable when clients require both Altronix hardware reliability and Lenel-S2 software flexibility—a combination common in enterprise environments with existing Lenel investments.

Technical Highlights:

• Modular Slot Architecture: The backplane accepts multiple compatible cards, allowing field configuration of security functions after initial installation
• Dual Ecosystem Support: Native compatibility with both Altronix controllers and Lenel-S2 access control platforms eliminates adapter complexity and reduces potential failure points

Deployment Considerations:

• Plan power distribution carefully—the TSS3 requires stable +12VDC and +24VDC rails from Altronix power supplies to support all active modules simultaneously
• Verify module inventory before deployment; having spare interface cards on-site reduces mean time to repair when field replacements are needed
• Document module configuration after installation to simplify troubleshooting and future maintenance operations

For integrators standardizing on Altronix hardware with Lenel-S2 software platforms, the TSS3 backplane provides the architectural foundation needed to scale across multiple facilities while maintaining consistent deployment methodology and spare parts logistics.
