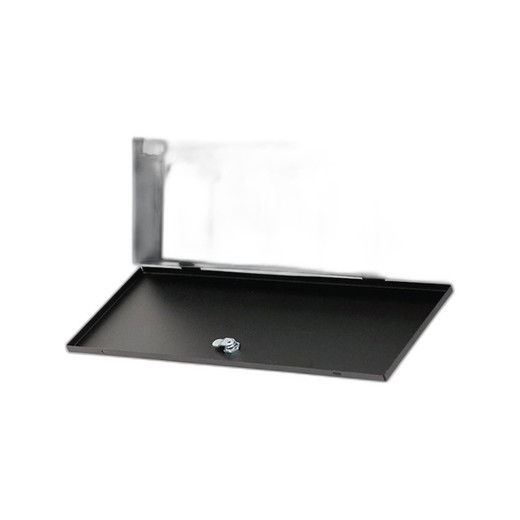

Altronix TROVE2BWC Battery/Wire Trough Enclosure
Overview

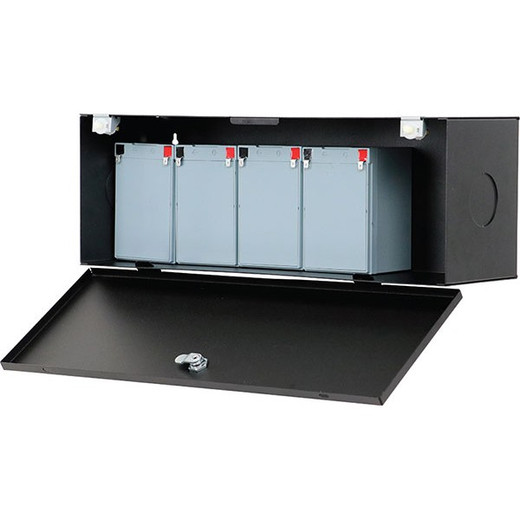

The Altronix TROVE2BWC is a modular enclosure purpose-built to extend Trove2 integrated power and access control systems. It functions as either a wiring trough or battery storage unit depending on mounting orientation—above or below the Trove2 core—allowing you to optimize cabinet layout within space-constrained security installations. Pre-positioned knockouts align precisely with Trove2 conduit connection points, eliminating field fabrication and reducing installation labor significantly. This tight integration is valuable when you're deploying distributed access control across multi-building campuses or when wire management and battery backup must coexist in a single footprint without requiring separate enclosure infrastructure.
Key Features
- Dual-Purpose Design: Mounts above or below Trove2 as either a wiring trough or battery cabinet—meaning you can configure the same enclosure type across multiple installations depending on the power and storage topology. This reduces SKU complexity and speeds procurement cycles.
- Strategic Knockout Alignment: Pre-positioned knockouts match Trove2 conduit entry points exactly, eliminating the need for adapter plates or custom drill-outs. Direct alignment cuts installation time and reduces field errors, particularly important in high-density panel deployments where multiple conduit runs are involved.
- Cam Lock Security: Integrated cam locks control access to wiring and battery components mechanically—no electronic credential required. Useful in unstaffed equipment rooms or outdoor cabinets where mechanical backup is necessary.
- Dual Tamper Switches: Two supervised tamper switches detect cabinet opening and report intrusion to compatible Trove2 configurations, supporting compliance frameworks that mandate physical access detection. Real-time alerts enable immediate response to unauthorized entry.
- Flexible Mounting Orientation: Supports both above and below mounting relative to Trove2, enabling layout optimization for cable runs, HVAC routing, and spatial constraints. Prevents costly rework if rack or wall space forces unconventional mounting.
- Integrated Conduit Connectivity: Eliminates external adapter hardware—the TROVE2BWC connects directly to Trove2 via matched conduit knockouts, reducing bill of materials and simplifying final assembly on multi-unit deployments.
Integration & Compatibility
The TROVE2BWC integrates exclusively with Altronix Trove2 systems. The enclosure's knockout pattern and mounting interfaces are engineered specifically for Trove2 specifications, ensuring conduit alignment without additional fabrication. Tamper switch feedback integrates with Trove2 configurations that support supervised access detection, allowing real-time monitoring within your access control platform. The cam locks operate independently of electronic systems, providing fail-safe access control during power loss or network outages.
Deployment Scenarios
Deploy the TROVE2BWC in access control head-end installations where power distribution and wire organization must coexist compactly. Multi-building campuses benefit from the dual-purpose functionality—use it as a battery trough at one site and a wire trough at another without changing component types. Video surveillance backbone installations with integrated power nodes also leverage the modular design to manage UPS batteries and signal conditioning in a single, Trove2-aligned enclosure. The tamper integration supports security protocols requiring supervised detection of physical cabinet breach.
Frequently Asked Questions
Q: Can the TROVE2BWC mount independently, or does it require a Trove2 unit?
A: The TROVE2BWC is designed to mount directly above or below a Trove2 core unit. Knockouts are positioned to align with Trove2 conduit points, so standalone deployment would require additional conduit adapters and custom fabrication—not recommended.
Q: Do the tamper switches require a specific Trove2 firmware version?
A: Tamper switch integration depends on your Trove2 configuration and control system version. Verify compatibility with your Altronix distributor or systems integrator before commissioning.
Q: What's the difference between wire trough and battery storage mode?
A: The internal cavity is identical; the difference is organizational. Mount it above Trove2 for wire routing, below for battery backup. The dual-purpose design prevents SKU proliferation across multi-site deployments.
Q: Are the cam locks keyed to match other Altronix enclosures?
A: Cam lock compatibility across Altronix product lines varies. Check your specification sheets or contact the manufacturer for keyed-alike options if standardized locking is required.
Q: Can I use the TROVE2BWC with non-Trove2 power systems?
A: The TROVE2BWC knockouts are Trove2-specific. Adapting it to other platforms would require custom conduit routing and defeats the integration advantage. Use it with Trove2 only.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix TROVE2BWC in several multi-building access control deployments where the Trove2 platform serves as the core integration backbone. The TROVE2BWC's dual functionality—supporting both wire management and battery storage—eliminates the need for separate enclosure types, which simplifies procurement and standardizes installation labor across multiple sites. Pre-aligned knockouts are a genuine time-saver in the field; you're not drilling custom holes or fabricating adapter plates, which cuts final assembly overhead considerably.
Technical Highlights:
- Strategic Knockout Alignment: Knockouts match Trove2 conduit points exactly, eliminating field fabrication and reducing installation error. Measurable benefit on distributed deployments where you're installing multiple units across campuses.
- Dual Tamper Switches: Two independent switches detect cabinet intrusion and report to compatible Trove2 configurations, meeting compliance requirements for supervised physical access monitoring without external relays or adapters.
- Dual-Purpose Cavity: Single enclosure type functions as either wire trough or battery storage depending on mounting orientation, reducing SKU proliferation and simplifying spare parts inventory across multi-site operations.
Deployment Considerations:
- The TROVE2BWC is Trove2-exclusive—knockouts won't align with other platforms. Plan your power architecture around Trove2 if this enclosure is part of your scope.
- Tamper switch supervision requires compatible Trove2 configurations; verify with your integrator that your control system version supports supervised intrusion detection before commissioning.
The TROVE2BWC works best in access control or power distribution head-ends where Trove2 is already the platform backbone. If you're standardizing on Trove2 across multiple buildings, this enclosure streamlines installation and reduces custom fabrication costs significantly—the knockouts alone justify the specification choice.
