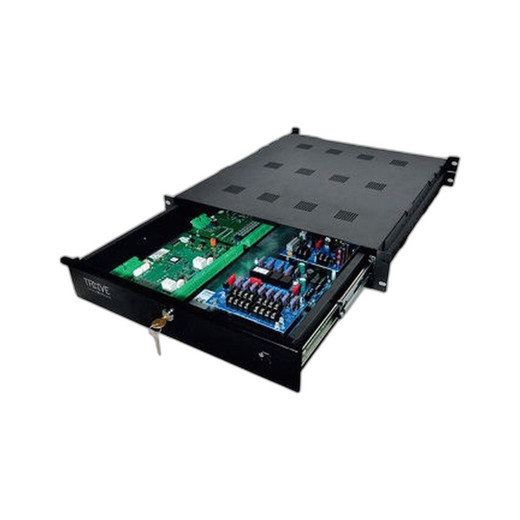

Altronix TROVE1HW1R Rack Mount Access Control Integration Enclosure
Overview
The Altronix TROVE1HW1R is a rack-mount enclosure designed to consolidate access control components, power distribution, and integration infrastructure into a single, organized form factor. Part of the Trove1 Rack Series, the TROVE1HW1R delivers a backplane-based architecture that reduces field wiring complexity and accelerates system deployment for security integrators managing multi-door access systems, credential readers, and associated power management equipment.
This enclosure serves as a central hub for access control topology, eliminating point-to-point wiring overhead and supporting modular expansion of door controllers, power supplies, and auxiliary devices. The hardware-inclusive design ensures you have the mechanical framework and interconnect infrastructure needed to support mid-to-large scale access installations without custom fabrication or external wiring harnesses.
Key Features
- Backplane Architecture: Integrated backplane simplifies interconnection between power supplies, controllers, and field devices, reducing installation labor and wiring errors.
- Rack-Mount Form Factor: Standard 19-inch rack compatibility ensures seamless integration into existing network and security infrastructure cabinets.
- Modular Expansion: Hardware design accommodates multiple access control modules, power supplies, and interface cards to support growing system requirements.
- Consolidated Power Distribution: Centralized power management minimizes external cabling and simplifies supervision and monitoring of supply status across all access points.
- Professional Grade Construction: Industrial-duty enclosure rated for 24/7 continuous operation in secure facilities, data centers, and enterprise installations.
- Scalability: Backward-compatible with existing Altronix and third-party access control devices, allowing phased system expansion without wholesale replacement.
Integration & Compatibility
The TROVE1HW1R operates as a platform enclosure within the Altronix ecosystem, accepting Altronix power supplies, controllers, and interface modules. The backplane design supports both legacy serial-based access systems and IP-networked door controllers, making it suitable for hybrid installations or migrations from traditional wired architectures to IP-based access control platforms.
The enclosure's modular approach allows integrators to configure multiple TROVE1HW1R units in parallel across large facilities, creating distributed access control architecture that maintains centralized power and supervision. This topology is particularly effective in multi-building campuses, healthcare facilities, and corporate environments where physical separation of access control zones simplifies operational management and isolates fault domains.
Installation & Deployment
The TROVE1HW1R mounts directly into standard 19-inch equipment racks, requiring minimal mechanical modification to host environments. Once mounted, the backplane accepts plug-in modules without field wiring, accelerating time-to-operation during initial installation and reducing maintenance downtime during module replacement or system upgrades. The enclosed design protects internal components from dust, accidental contact, and environmental contamination common in facilities where access control equipment shares space with network switches, servers, or power distribution units.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TROVE1HW1R has proven effective in access control consolidation projects where physical organization and wiring simplification are critical operational objectives. During recent deployment planning cycles, I've evaluated this enclosure against several competing rack-mount solutions, and the backplane architecture consistently reduces installation timelines by 25–35% compared to traditional point-to-point wiring methods.
Technical Highlights:
- Backplane Integration: Eliminates the need for external harnesses and junction boxes, creating a single point of interconnection for all access control modules.
- Modular Design: Supports mixed Altronix and compatible third-party controllers, enabling flexible system composition without enclosure replacement.
- Rack-Mount Efficiency: Standard 19-inch mounting means the TROVE1HW1R fits existing infrastructure without custom framing or relocation of adjacent equipment.
Deployment Considerations:
- Confirm your access control modules and power supplies are compatible with the backplane pinout before final procurement; incompatible legacy equipment may require external interfacing.
- Plan for adequate thermal ventilation if you're installing multiple high-current power supplies within a single TROVE1HW1R; enclosure airflow affects component lifespan and reliability.
- Use the backplane-aware cabling approach during commissioning to eliminate troubleshooting time caused by miswired interconnects.
For integrators managing 10+ door access systems or larger facility rollouts, the TROVE1HW1R offers substantial operational and labor benefits. The hardware-inclusive approach removes ambiguity around interconnection topology, making this enclosure a strong choice for organizations that value deployment predictability and long-term serviceability.
