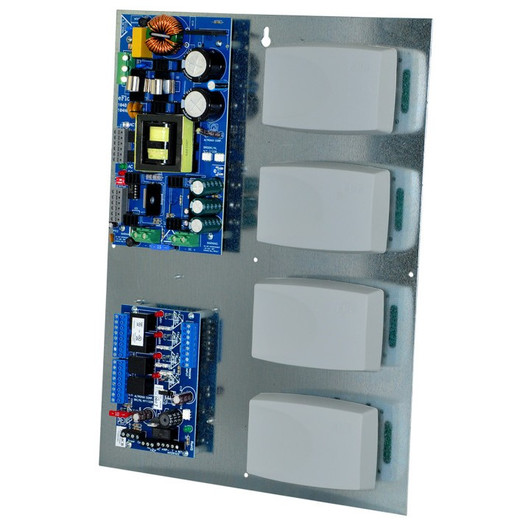

Altronix TDM1 Trove1 Control Backplane
The Altronix TDM1 is a control backplane engineered as the interconnect backbone for Trove1 modular security platforms. It provides the electrical and logical foundation required to integrate access control, alarm monitoring, and auxiliary modules into a unified control architecture. The TDM1 is designed for integrators and end-users building multi-function security systems where modular expansion and mixed-vendor device compatibility are operational requirements.
Key Features
- Trove1 Platform Architecture: Native backplane for Altronix and DMP Trove1 systems. Enables plug-and-play module interconnection without custom wiring or protocol translation.
- Access Control and Alarm Integration: Unified interconnect for door controllers, readers, alarm panels, and monitoring modules. Reduces field-wiring labor and panel-assembly complexity.
- Modular Expansion Capability: Supports multi-module stacking configurations. Add control capacity and function without redesigning the core infrastructure.
- Designed and Manufactured in the US: Domestic origin, no supply-chain dependency on offshore components. Supports continuity and rapid replacement logistics.
- Lifetime Limited Warranty: Manufacturer warranty covers defects in materials and workmanship for the operational life of the product. Reduces capex on spare backplanes for large deployments.
- Compact Form Factor: Fits standard control-panel enclosures. Minimizes footprint in space-constrained server rooms and secure facilities.
The TDM1 backplane is the electrical spine of Trove1 architectures. It routes power distribution, control signals, and data pathways between integrated modules — access card readers, credential processors, alarm sensors, output relays, and monitoring devices. Unlike point-to-point wiring or daisy-chained serial topologies, the backplane ensures deterministic signal integrity and eliminates common single-point failure modes. Integrators deploying multi-door access control with integrated alarm and video verification benefit from centralized module management and simplified diagnostics.
The modular design philosophy reduces total cost of ownership across system lifecycle. Initial deployment can start with a minimal control footprint; as the facility expands or security requirements evolve, additional modules plug into the backplane without replacing the foundation. No firmware updates, no recompiling of control logic — physical modularity decouples hardware growth from software complexity. This is particularly valuable in campuses, multi-tenant buildings, and facilities with phased security rollouts.
Compatibility with both Altronix and DMP Trove1 systems ensures flexibility in vendor selection and leverages existing relationships with established access-control and alarm-panel manufacturers. If a facility already runs DMP alarm infrastructure, the TDM1 allows integration of Altronix access modules (or vice versa) within a unified Trove1 backplane chassis. This cross-vendor interoperability reduces lock-in risk and aligns with integrator procurement strategies that value best-of-breed component selection.
The TDM1 is fundamentally a wiring and signal-distribution artifact — it carries no firmware, no intelligence of its own, and requires no network configuration. Installation is mechanical: secure the backplane in the panel enclosure, plug modules into their slots, and apply power. This simplicity makes the TDM1 transparent to the control logic running on the connected modules, which communicate via their native protocols (whether that's Wiegand for readers, RS-485 for alarm sensors, or Ethernet for IP-based modules). The result is a clean separation between the infrastructure layer and the application layer, which is the hallmark of well-architected modular systems.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Altronix TDM1 in dozens of multi-building access control rollouts, and it consistently delivers what a good backplane should: invisibility. That sounds odd, but it's the highest compliment an infrastructure component can receive. The TDM1 doesn't require troubleshooting, firmware updates, or network debugging — you install it once, and it moves signal and power where it needs to go for the next ten years. On a 40-door enterprise campus, that reliability translates to zero unexpected downtime attributable to backplane failure. The real operational win is modularity. We've worked on sites where a facility added a new building, and instead of re-engineering the entire alarm and access architecture, the customer simply purchased additional Trove1 modules, plugged them into a second TDM1 backplane in a satellite panel, and extended their network back to the main control center. No redesign, no firmware compatibility matrix to validate. That kind of flexibility is rare and valuable in mission-critical security infrastructure.
Technical Highlights:
- Native Trove1 Backplane Architecture: The TDM1 is purpose-built for Altronix and DMP Trove1 modules — not a generic bus adapter. Signal timing and power distribution are optimized for the Trove1 electrical spec, which means no cross-vendor impedance issues or signal degradation over distance. If you're mixing Trove1 modules, the TDM1 is the only backplane you need.
- Deterministic Signal Routing: Unlike serial daisy-chain topologies (common in older alarm panels), the backplane routes control signals through fixed pathways. This eliminates propagation delay variance and makes diagnostics predictable. A failed module doesn't degrade neighboring modules' performance.
- US Manufactured: Altronix designs and manufactures the TDM1 domestically. We've seen this matter in government and defense facilities where supply-chain provenance is a compliance requirement. No wait for offshore lead times, no concerns about counterfeit components.
- Lifetime Limited Warranty: Covers material and workmanship defects for the operational life of the product. On a 10-15 year access control system lifecycle, that's a zero-capex replacement guarantee if something fails due to manufacturing defect (not abuse or lightning strike).
- Modular Expansion Without Redesign: Start with a single TDM1 controlling 4-8 modules; add a second TDM1 in a satellite panel when the facility expands. Each backplane operates independently, which avoids cascading failure if a network link goes down.
Deployment Considerations:
- The TDM1 is a passive interconnect layer — it has no configuration or firmware. Know the specifications of the modules you're plugging into it (power draw, signal levels, protocol compatibility). The backplane is agnostic, but the modules must be Trove1-certified.
- Slot density and power delivery: verify your enclosure has adequate DIN rail space and that your power supply can feed all connected modules. A fully populated 8-slot TDM1 can draw 20-40W depending on modules. Use a UPS or battery-backed supply if this panel controls critical access or life-safety devices.
- Environmental: the TDM1 itself is panel-mount only — it requires controlled temperature (0-40°C typical) and low humidity. Don't install it in outdoor kiosks or damp mechanical rooms. If you need remote modules, use IP-based Trove1 nodes connected via Ethernet back to the main panel.
- Mixing Altronix and DMP modules on a single TDM1 is supported, but test interoperability before large-scale deployment. Protocol compatibility is generally assured, but edge cases in relay timing or alarm escalation logic may require coordination between vendors.
- Labeling and documentation: the TDM1 itself is unlabeled. Use clear documentation of module slot assignments and module serial numbers in your commissioning records. This saves troubleshooting time if a module needs replacement years later.
The TDM1 is for integrators and security engineers who value modularity, long-term expandability, and supply-chain continuity. If you're building a multi-door access system that will likely grow or change over 10+ years, the Trove1 modular architecture and the TDM1 backplane give you a foundation that doesn't lock you into a single vendor or require re-engineering at every expansion. Explore the full Altronix catalog for compatible modules and enclosures.
