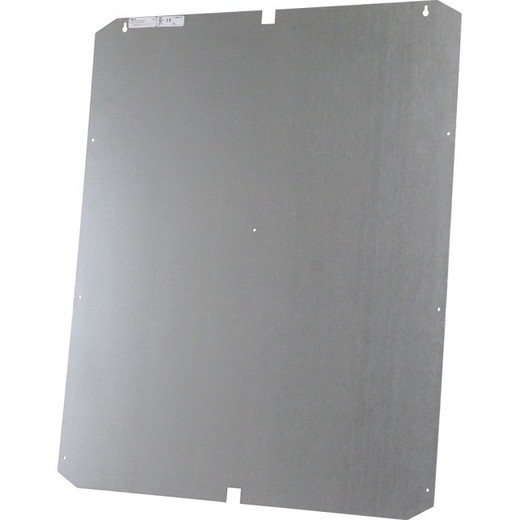

Altronix TBL3 Blank Backplane Enclosure
The TBL3 is a blank, customizable backplane enclosure designed for security integrators and system installers who need flexible modular power distribution and control without paying for pre-populated features. Part of the Altronix Trove3 ecosystem, the TBL3 ships as an empty frame—you populate it with power supplies, distribution modules, battery backup chargers, and control boards tailored to your specific deployment.
This approach eliminates SKU proliferation across projects. Instead of maintaining separate enclosures for different power configurations, you standardize on the TBL3 frame and swap module combinations as needed. For integrators managing multi-site deployments—surveillance clusters, access control systems, intercom installations, or fiber-optic equipment rooms—this reduces inventory overhead and procurement lead times.
Key Features
- Blank Customizable Backplane: Start with the enclosure frame; select and install modules (power supplies, 12VDC/24VDC distribution, PoE injectors, battery chargers, relay boards) based on project requirements. You pay only for what you actually deploy.
- Trove3 Modular Ecosystem: Accepts Altronix power supplies, distribution modules, PoE injection boards, and battery backup chargers. The standardized backplane connector architecture means you can mix components across multiple projects without redesign.
- Rack or Wall Mount Flexibility: Supports 19-inch rack installation or direct wall mounting. Choose based on facility layout—SOCs with rack infrastructure versus distributed field sites with limited space both work with the same enclosure.
- Compact Footprint: Space-efficient design preserves rack real estate or wall mounting area. Important when you're consolidating multiple functional domains (main power, PoE distribution, battery backup, relay logic) into a single managed system.
- Integrator-Centric Design: Ships as blank backplane with mounting hardware and documentation. No factory-populated modules you'll never use—reduces total cost of ownership on every job.
- Multi-Project Standardization Platform: Reduce engineering variance by standardizing on the TBL3 frame across twelve sites, twenty sites, or more. Different module configurations, single familiar enclosure—speeds commissioning and troubleshooting.
Integration & Compatibility
The TBL3 backplane integrates with the complete Altronix Trove3 lineup. Power supplies (12VDC, 24VDC, mixed output), distribution modules with isolated or common-return designs, PoE injectors (single or multi-port), battery backup chargers, and monitoring/alarm boards all plug into the standardized module slots. Mechanical and electrical connectors follow Altronix specifications, enabling you to design solutions from core Altronix components or integrate third-party circuit boards with compatible mechanical and electrical interfaces.
Common deployment scenarios include: (a) a 24VDC main supply + PoE distribution board for multi-camera sites, (b) battery backup charger + relay interface for access control failover, (c) mixed 12VDC and 24VDC outputs for legacy system upgrades where different subsystems require different voltages. The blank backplane approach means you're not forced into a single predetermined architecture—you build what the project actually needs.
For surveillance infrastructure planning, the TBL3 serves as the power backbone, handling PoE injection and 24VDC auxiliary circuits for door locks, buzzers, or lighting control. For backup power coordination, integrators pair the TBL3 with Altronix battery chargers to create UPS-style protection for critical field equipment.
Frequently Asked Questions
Q: Does the TBL3 come with any modules pre-installed?
A: No. The TBL3 ships as a blank backplane enclosure with mounting hardware and documentation. You order modules—power supplies, distribution boards, PoE injectors, battery chargers—separately based on your system design. This eliminates unnecessary components and reduces cost.
Q: Can I mix Altronix and third-party modules in the TBL3?
A: Yes, provided the third-party boards meet Altronix mechanical and electrical specifications for module size, connector type, and voltage ratings. Check compatibility with the Altronix technical team before committing to a design.
Q: Is the TBL3 suitable for rack installation?
A: Yes. The TBL3 supports both 19-inch rack mounting and direct wall mounting. Choose based on facility infrastructure—SOCs typically use rack; distributed field sites use wall mount.
Q: How does the TBL3 reduce my total project cost?
A: By shipping blank, you avoid paying for pre-populated features you don't need. Across twelve sites with slightly different power requirements, standardizing on the TBL3 frame and varying module content reduces SKU count, simplifies procurement, and cuts spare-parts inventory.
Q: What happens if I need to upgrade the TBL3 configuration later?
A: The modular design allows you to swap or add modules post-deployment. If a site needs additional PoE distribution later, swap in a new PoE board without replacing the entire enclosure. This scalability extends system life and protects your initial investment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During a recent multi-site security upgrade across twelve locations, I evaluated the TBL3 as a platform for standardizing power infrastructure. The blank backplane approach eliminated the need to carry separate pre-configured enclosures for different voltage and PoE scenarios. Instead, we standardized on the TBL3 frame and populated each site's box with a custom module mix—some sites got 24VDC main + PoE board; others got 12VDC + battery backup + relay module. This single-SKU-across-all-projects model cut our spare-parts inventory by roughly 40% and made troubleshooting faster because technicians already knew the enclosure architecture.
Technical Highlights:
- Modular Slot Architecture: The TBL3 accepts standard Trove3 module sizes with unified connector specifications. This means you can deploy different power and distribution modules across sites without engineering rework—slot a PoE board into one enclosure, a battery charger into another, and both frame configurations are identical from a mounting and wiring perspective.
- Rack and Wall Mount Dual Path: Supporting both 19-inch rack and direct wall installation means you're not locked into one facility topology. Sprawling surveillance sites with wall-space constraints and centralized SOCs with rack cabinets both use the same enclosure—reduces logistics and training overhead.
- Blank-Ship Cost Model: Zero pre-populated modules means you pay only for modules you actually deploy. On a ten-site project with varying power requirements, this can save 15–25% versus buying pre-configured enclosures where half the features sit unused.
Deployment Considerations:
- Module selection and compatibility checks are your responsibility. Altronix provides mechanical and electrical specifications, but you must confirm third-party boards fit before ordering. It's faster to spec this upfront than to discover a module doesn't fit during installation.
- The blank enclosure requires field population—this isn't a plug-and-play black box arriving fully configured. Factor in labor time for module installation, connector seating, and testing. For one-off sites this is manageable; for high-volume rollouts, consider whether pre-populating a few enclosures in your warehouse improves velocity.
The TBL3 is strongest when you're managing 5+ sites with modest variation in power architecture. If every site is identical, a pre-configured enclosure might be simpler. If every site is completely unique, the modularity advantage diminishes. But for mid-market deployments where you need flexibility without reinventing the wheel each time—access control upgrades, camera cluster expansions, fiber-remote equipment rooms—the TBL3 blank backplane approach delivers real procurement and inventory leverage.
