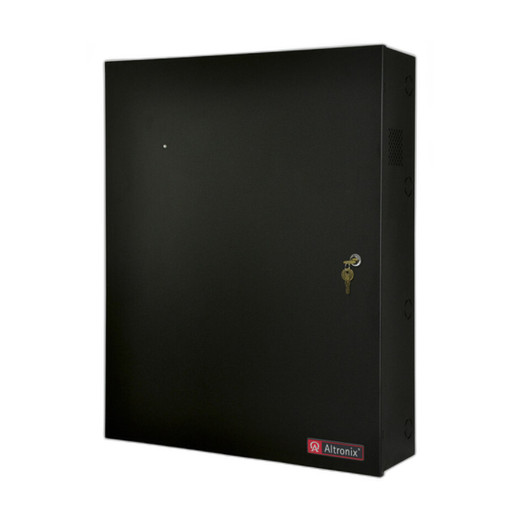

Altronix T2MK3F4D 4-Door Access Control and Power Integration Kit
Overview
The Altronix T2MK3F4D is a comprehensive 4-door access and power integration solution designed for security integrators requiring coordinated access control, power distribution, and system supervision in a single deployable package. This kit combines the Trove2M2 main controller with the eFlow6NB power module, ACM4CB card reader module, VR6 power supply, and PDS8CB power distribution unit, delivering enterprise-grade access management with integrated power redundancy and battery backup capability.
Key Features
- 4-Door Integration Platform: Native support for 4-door access control operations with coordinated reader and strike management across all inputs
- Trove2M2 Controller: Compact form-factor main control module with built-in supervision and event logging for access events and system faults
- eFlow6NB Power Management: Integrated power module supporting battery-backed output for critical door strikes and access readers
- ACM4CB Card Reader Interface: Multi-protocol credential reader support accommodating standard proximity cards and key fobs across all 4 doors
- VR6 Regulated Power Supply: Dedicated regulated power source providing stable DC output for access control logic and reader circuits
- PDS8CB Distribution Unit: 8-channel power distribution with individual channel protection and monitoring for door strike loads and accessory devices
- Battery Backup Ready: eFlow6NB module supports battery-backed door strike activation enabling fail-safe egress during power loss
- Integrated Supervision: Built-in fault detection for power loss, communication failure, and access device malfunction with event reporting
- Modular Expandability: Component-based architecture allows field upgrades and integration with third-party access control software via standard protocols
- Compact Deployment: Kit design eliminates custom wiring complexity, reducing integration time and field labor costs
Integration & Compatibility
The T2MK3F4D kit is architected for seamless integration with standard access control architectures. The Trove2M2 controller provides the logical hub for all four door readers and strike outputs, while the eFlow6NB power module manages battery backup and fault conditions. The PDS8CB distribution unit isolates each door circuit, preventing cascading failures and enabling selective power cycling for troubleshooting and maintenance. ACM4CB reader interface compatibility extends to both Wiegand and proprietary card formats commonly deployed in commercial and institutional facilities.
Package Contents
- Trove2M2 access control main module
- eFlow6NB power and battery management module
- ACM4CB multi-door card reader interface
- VR6 regulated power supply
- PDS8CB 8-channel power distribution unit
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the T2MK3F4D during planning for a multi-building access retrofit. What stands out is the kit's design philosophy—every component is purpose-built for the others. You don't get redundant modules or missing pieces; you get exactly what you need to deploy 4-door access with power backup in one box.
Technical Highlights:
- Battery Backup Architecture: The eFlow6NB module integrates UPS-style battery charging and switching directly into the power path. When mains power fails, door strikes don't immediately go dead—critical for life-safety compliance and emergency egress requirements.
- Supervised Power Distribution: PDS8CB channels can be monitored individually, so you know if a strike load shorts or a reader circuit faults. That visibility prevents silent failures that cause locked-out tenants and emergency service calls.
- Card Reader Consolidation: ACM4CB handles all four readers from a single interface module. Fewer connection points mean fewer failure modes and simpler troubleshooting.
Deployment Considerations:
- Plan your battery capacity upfront. The eFlow6NB's backup window depends on strike solenoid current draw and connected readers; a 4-door installation with mag-lock strikes will consume battery faster than electronic strikes.
- Verify your card format compatibility with ACM4CB before deployment. Wiegand cards work universally, but some facilities use proprietary formats that may require additional interface modules.
- Mount the PDS8CB near the strikes and readers to minimize voltage drop across long runs. Access control systems are low-voltage; a 100-foot run can cause reader sensitivity issues.
For integrators managing multi-tenant office or institutional buildings, the T2MK3F4D delivers predictable hardware costs and faster deployment than custom-assembled solutions. The kit model is intentional—it forces best-practice installation practices and reduces field substitutions that compromise reliability.
