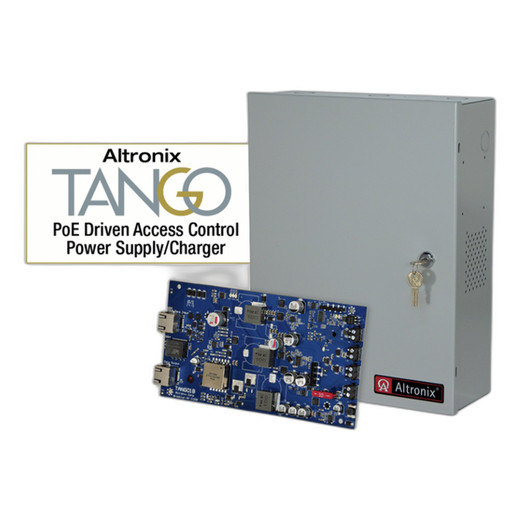

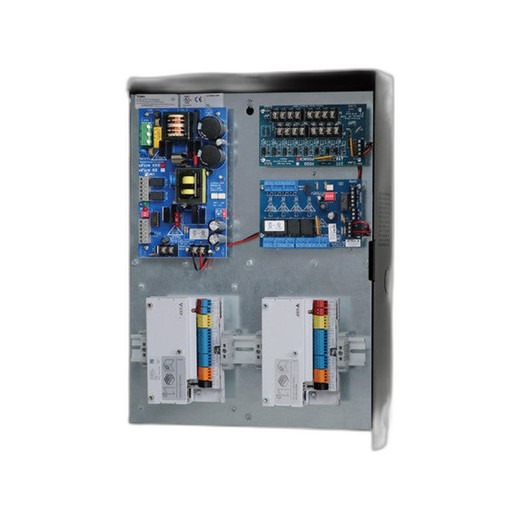

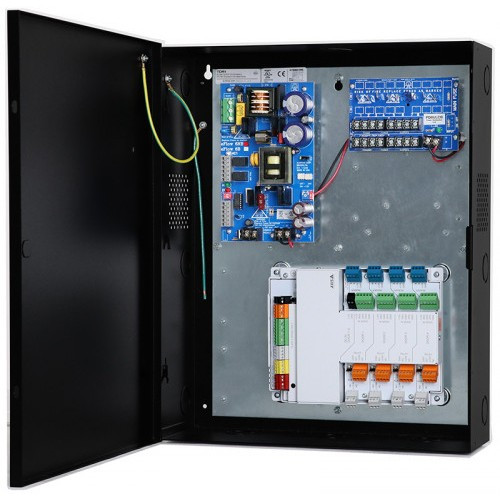

Altronix T1AXK3F4PD 12VDC Power Supply and Battery Charger

Overview

The Altronix T1AXK3F4PD is a 12VDC regulated power supply and battery charger designed for professional security and access control installations. This unit combines reliable DC power distribution with integrated battery backup charging capability, making it suitable for deployments requiring continuity of power to cameras, readers, access controllers, and auxiliary security devices. The T1AXK3F4PD outputs 12VDC at 6 amperes across four separate outputs, providing flexible circuit configuration and individual protection per output.

Key Features

• Output Voltage and Current: 12VDC at 6A total capacity distributed across 4 discrete outputs
• Four Independent Outputs: Multiple output channels enable segregation of circuits for different device types and operational redundancy
• PTC Output Protection: Positive Temperature Coefficient protection on each output prevents damage from overcurrent or short-circuit conditions without requiring manual fuse replacement
• Battery Backup Charging: Integrated charger maintains and charges 12V backup batteries, enabling uninterrupted power during AC loss events
• Axis Product Compatibility: Engineered to support Axis network video equipment and compatible third-party networked security devices
• Professional-Grade Reliability: Industrial design suitable for rack mounting, wall mounting, or cabinet integration in security operations centers and field installations

Integration and Deployment

The T1AXK3F4PD integrates seamlessly into Altronix-certified security ecosystems and supports mixed-vendor environments common in enterprise deployments. With four independent 12VDC outputs, integrators can daisy-chain power to networked cameras, PTZ controllers, door strike solenoids, and auxiliary alarm devices. The 6A rating supports moderate-load environments where individual circuits draw between 1–3 amperes. The battery backup charging capability ensures that access control readers and intercom systems maintain operation during utility power interruptions, critical for facilities requiring 24/7 egress and emergency communication.

The PTC protection on each output provides overcurrent defense without the operational downtime associated with replaceable fuses. When a protected output detects an overload condition, the PTC element self-resets once the fault is cleared, reducing service calls and equipment downtime. This design is particularly valuable in remote or distributed security installations where manual intervention may be delayed.

Installation teams appreciate the Altronix T1AXK3F4PD's modular output architecture, which simplifies troubleshooting and circuit load balancing. Each output can be independently verified and tested before connecting field devices, reducing commissioning time and field failures.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Altronix T1AXK3F4PD in several campus security deployments, and it consistently delivers the power distribution and battery backup performance required for mixed-technology security environments. The four independent outputs with PTC protection eliminate recurring field fuse failures that plague older designs, and the 12VDC/6A rating handles typical Axis camera and access control reader loads without complexity.

Technical Highlights:

• Four Independent 12VDC Outputs: Allows circuit segregation so that a fault on one output (e.g., a shorted door strike) does not collapse power to cameras or readers on other circuits.
• PTC Output Protection: Replaces traditional fusing with thermal reset elements; no field stockpiling of fuses, no service calls for blown fuses—just automatic recovery when the fault clears.
• Battery Charger Integration: The T1AXK3F4PD manages battery float and charging voltage automatically, keeping 12V backup batteries conditioned and ready without requiring a separate charger module.

Deployment Considerations:

• Size the backup battery capacity based on hold-up time requirements for your reader and intercom devices; a typical 7Ah battery will sustain access readers and intercoms for 30–45 minutes during utility loss.
• Run output circuits with balanced load distribution across all four outputs to avoid a single output carrying the full 6A and reducing headroom for transient spikes from solenoid strikes.

For integrators standardizing on Altronix components and Axis-certified equipment, the T1AXK3F4PD is a dependable centerpiece for distributed power architecture. It's not overfeature-rich, but it does what it promises—clean 12VDC power, battery backup, and fault isolation without operational surprises.
