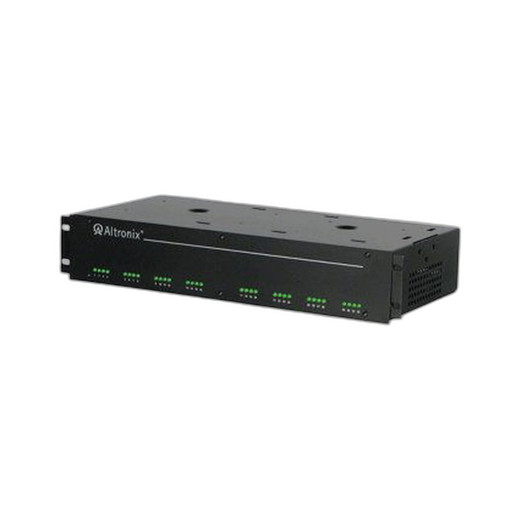

Altronix R2432300ULCB 32-Output Rack Power Supply

Altronix R2432300ULCB 32-Output Rack Power Supply

The Altronix R2432300ULCB is a 2U rack-mounted power supply designed to distribute 24/28VAC power across 32 independent outputs. This unit accepts 115VAC input and delivers a maximum current of 12.5A, making it suitable for medium-scale security camera installations and access control systems requiring distributed low-voltage power distribution. The R2432300ULCB consolidates multiple power feeds into a single rack-mount chassis, simplifying infrastructure design and reducing cable complexity in equipment rooms and central monitoring stations.

Key Features

• 32 independent power outputs for distributed device provisioning
• 2U rack-mount form factor for standard 19-inch equipment racks
• 24/28VAC output voltage compatibility with standard security equipment
• 12.5A maximum current capacity per supply unit
• 115VAC single-phase input for North American installations
• UL Listed and CE certified for safety and international compliance
• Lifetime Limited Warranty covering component defects

Applications

• CCTV camera power distribution in multi-camera surveillance deployments
• Access control system power provisioning for card readers and electric strikes
• Centralized power distribution in security operations centers and NOCs
• Rack-based power consolidation for IP-based security infrastructure
• Backup power distribution hubs for security system redundancy

Specifications

• MPN: R2432300ULCB
• Form Factor: 2U Rack Mount
• Input Voltage: 115VAC
• Output Voltage: 24/28VAC
• Maximum Current: 12.5A
• Number of Outputs: 32
• Approvals: UL Listed, CE
• Warranty: Lifetime Limited Warranty
