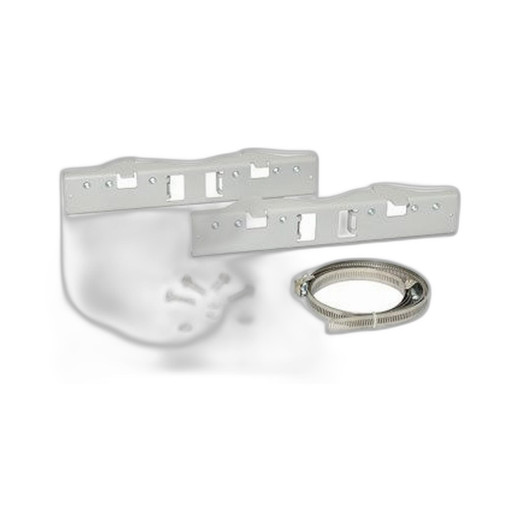

Altronix PMK1 Pole Mount Kit
The Altronix PMK1 is a pole mount kit engineered to deploy power supply and charging enclosures in outdoor field installations where elevated or remote positioning is necessary. This accessory transforms fixed indoor power supplies into field-deployable systems for distributed security infrastructure—camera networks, access control, gate operators, and perimeter systems that require power at the edge rather than in a central cabinet.
Key Features
- Enclosure Support (12"H × 8"W × 6"D): Accommodates standard Altronix power supply housings, letting you mount the same enclosures you already standardize on without requiring custom brackets or adapters. Reduces part proliferation on jobsites.
- Pole or Post Mounting: Direct attachment to round or square poles (common on perimeter fencing, light standards, and utility structures) eliminates the need for wall surfaces or dedicated equipment racks in remote zones.
- 16/24VAC Input Support: Works with both 16VAC and 24VAC input power supplies, matching the voltage standards used throughout most access control and surveillance infrastructure. Simplifies spec standardization across projects.
- 12VDC and 24VDC Output Capacity: Supports both logic voltages common to cameras, door locks, gate controls, and reader interfaces. Maximum 0.5A per voltage rail ensures compatibility with low-current devices typical in field deployments—auxiliary lighting, wireless modules, or sensor nodes.
- Battery Backup Integration: The kit works with Altronix power supplies equipped with battery modules, enabling AC fail and low battery supervision monitoring at remote locations. Loss of mains power or battery depletion triggers alarms sent to your NVR or access control panel, avoiding silent outages at unmanned sites.
- Harsh Environment Durability: Pole-mounted equipment faces weather exposure, UV, thermal cycling, and vibration. Durable construction withstands these conditions; pair with appropriate enclosure sealing and cable glands to meet IP66 or IP67 targets for fully protected outdoor installations.
Integration & Compatibility
The PMK1 integrates with any Altronix power supply enclosure matching the 12"H × 8"W × 6"D footprint. Supervision signals (AC fail, low battery) connect to standard contact inputs on network video recorders, access control panels, or UPS and power management systems to trigger alerts. The mounting structure is passive—no active electronics—so it introduces no single points of failure or power draw overhead.
Typical Deployments
Remote Camera Networks: Position a 24VAC power supply at a pole near a cluster of three to five IP cameras. The PMK1 mounts the enclosure above ground level, protecting it from foot traffic and splash while keeping cable runs short. Supervision wiring back to the NVR alerts you if AC is lost.
Gate and Perimeter Systems: Deploy power and battery backup at the gate operator itself, eliminating long AC runs from a distant building. The pole mount keeps the enclosure secure and weatherproof.
Distributed Access Control: In campuses or warehouses, mount reader power supplies at multiple entry points rather than centralizing all power in one cabinet. Redundancy improves uptime if a single supply fails.
Warranty and Support
Altronix backs the PMK1 with a Lifetime Limited Warranty, covering defects in materials and workmanship for the life of the product. This reflects the passive, durable nature of the mount—no moving parts, no thermal stress points.
Frequently Asked Questions
Q: Will the PMK1 fit my Altronix power supply?
A: Yes, if your enclosure measures 12"H × 8"W × 6"D. Check your power supply datasheet or contact the manufacturer to confirm dimensions. Some compact models may not fit; oversized industrial enclosures will not.
Q: Can I use the PMK1 indoors?
A: Technically yes, but the kit is engineered for pole mounting in outdoor environments. If you need indoor wall mounting, consider a standard rack mount or wall bracket instead. The pole mount hardware adds unnecessary footprint and cost for indoor cabinet deployments.
Q: Does the PMK1 support AC fail and low battery monitoring?
A: The kit itself is passive and does not provide monitoring; however, it is fully compatible with Altronix power supplies that include battery backup and supervision outputs. Wire the supervision contacts to your NVR or access control panel to receive alerts when AC fails or battery voltage drops below threshold.
Q: What pole diameter does the PMK1 accept?
A: Consult the PMK1 datasheet for exact pole diameter range. The kit is designed for standard utility and fencing poles, typically 1.5" to 4" OD, but confirm before ordering if you have non-standard pole sizes on your site.
Q: What is the warranty on the PMK1?
A: Altronix provides a Lifetime Limited Warranty on the PMK1, covering manufacturing defects. This covers material and workmanship but does not extend to damage from installation error, environmental factors beyond design specification, or misuse.
Q: Is installation difficult?
A: The PMK1 is a passive bracket assembly. Installation requires basic tools and familiarity with pole or post mounting practices. Secure the bracket to the pole, slide the power supply enclosure into place, and route AC and supervision wiring. No special tools or expertise required, but follow the kit instructions and ensure the pole can bear the weight of the mounted supply and any batteries inside.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix PMK1 is a straightforward but necessary piece of kit if you're distributing power infrastructure across large outdoor properties—campuses, industrial sites, multi-building facilities. It solves a real problem: how do you mount a power supply enclosure securely at height without building permanent structures? The 12" × 8" × 6" enclosure pocket accepts standard Altronix housings, so you don't end up with a tower of different mounting brackets for different projects.
Technical Highlights:
- Pole-Mount Design: Attaches directly to round or square utility poles, fence posts, or light standards—no welding, no structural modification. Keeps equipment off the ground, away from splash, foot traffic, and environmental debris.
- Battery Backup Compatibility: Works with Altronix power supplies fitted with battery modules. AC fail and low battery supervision outputs let you monitor power status remotely. 0.5A capacity per voltage rail (12VDC and 24VDC) is sufficient for auxiliary loads—auxiliary lighting, wireless alarm sensors, gate control logic—without straining the battery.
- Dual-Voltage Support (16/24VAC Input): Accepts both standard input voltages. Useful on sites where AC power sources are not uniform or where you're phasing in upgrades without replacing all power supplies at once.
Deployment Considerations:
- The PMK1 is passive—no power draw, no single point of failure. However, the pole itself must be sturdy enough to bear the combined weight of the enclosure, internal batteries, and mounting hardware (typically 40–80 lbs depending on battery capacity). Check pole specifications before commit.
- Supervision wiring back to your NVR or access control panel must be run in appropriate conduit if exposed to weather or physical damage risk. Don't skimp on cable protection—an open supervision wire that gets pinched or saturated will fail silently and defeat the whole point of monitoring.
- The enclosure footprint is 12" tall, so position the pole-mount assembly high enough that the bottom of the enclosure clears vehicle traffic and vandalism risk, but low enough for technicians to access terminal blocks and battery connections for maintenance.
The PMK1 is the right choice for any deployment where you're siting power supplies away from buildings—perimeter camera strings, gate operators at the entrance, distributed reader power in a warehouse, or microwave link power supplies on cell sites. It won't win any style awards, but it solves the "where do I put this box?" problem efficiently. Lifetime warranty reflects the simplicity: no moving parts, no thermal cycling stress, just durable metalwork.
