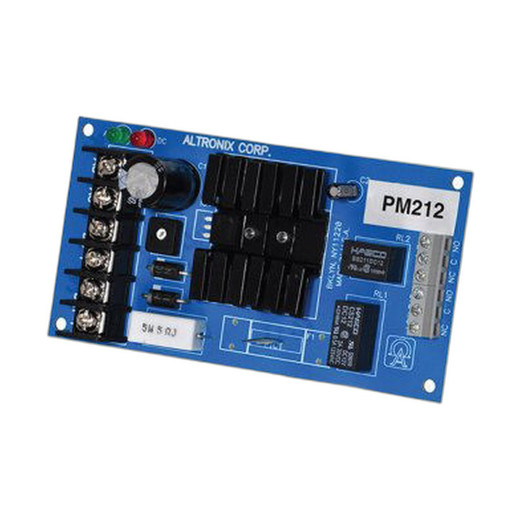

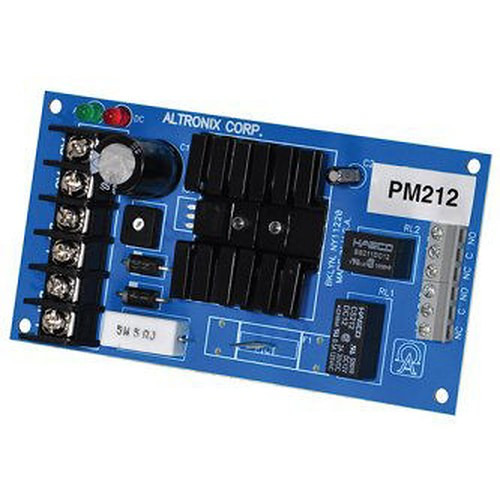

Altronix PM212 Linear Power Supply/Charger -12VDC
The Altronix PM212 is a compact board-level power supply and battery charger engineered for security and access control installations that require regulated -12VDC output with integrated backup capability. It accepts standard 16/24VAC input and delivers multiple selectable output configurations, eliminating the need for separate charger hardware in applications where primary power and battery backup must coexist on a single board.
Key Features
- Linear Regulation Topology: Delivers clean, noise-free -12VDC output — critical for analog control circuits and devices sensitive to ripple noise, particularly important when powering lock strike mechanisms or access readers where electromagnetic interference can trigger false opens.
- Dual Output Selectable Ratings: Choose between 0.5A @ 12VDC, 1A @ 12VDC, or 0.75A @ 24VDC depending on your load profile. This flexibility means you can configure the PM212 to fit multiple SKUs within a single product platform, reducing inventory complexity across small and mid-scale installations.
- Integrated Battery Charger: Manages sealed lead-acid battery charging in the same footprint — no external charger module required. Reduces panel real estate demands and simplifies wiring, particularly valuable in retrofit access control cabinets where space is already constrained.
- AC Fail Supervision: Automatically detects mains power loss and transitions to backup power. This function eliminates the need for external detection relays and provides immediate notification of power failure conditions, which is essential for facilities where extended downtime on door strike or gate operators creates security or life-safety liabilities.
- Low Battery Supervision: Monitors battery voltage condition and triggers an alert if the backup source drops below threshold. Prevents scenarios where a discharged battery fails silently, leaving the system unprotected after an actual power failure.
- Board-Level Form Factor: Mounts directly into panel backplanes or integrator-designed enclosures. OEM integration-friendly design allows you to embed the PM212 into custom or semi-custom security platforms without additional housing or interface adapter hardware.
Deployment Context
The PM212 is purpose-built for distributed security architectures where multiple access points or gate operators require independent, fail-safe power. It's commonly deployed in entrance control systems, parking barrier automation, emergency-release locking mechanisms, and small DVR/camera backup power circuits. Because it combines primary power delivery with supervised charging, it eliminates the multi-component approach that older designs required—one board handles both functions.
The -12VDC output polarity is standard in legacy access control and some proprietary security devices. If you're integrating into existing infrastructure or OEM platforms that specify negative-ground architectures, this is your native voltage. The 16/24VAC input flexibility accommodates both older 16VAC transformer systems and modern 24VAC UPS/backup power supplies, making the PM212 a natural fit for mixed-technology facilities.
Integration & Compatibility
The PM212 integrates with standard 16/24VAC transformer supplies and battery backup systems. Its AC Fail and Low Battery supervision outputs are relay-compatible, allowing direct integration into conventional access control panels, DVR monitoring systems, and third-party alarm control logic. Because it's a board-level module, final enclosure design, connector choice, and supervision circuit integration rest with your panel integrator or OEM—this is not a standalone unit with pre-populated DIN connectors.
Why Current Ratings Matter
Output current directly determines how many devices you can power simultaneously. The 1A @ 12VDC configuration handles two or three standard lock strikes (typically 400–500mA each) or a small DVR with a single camera backup circuit. If you're powering a gate operator plus auxiliary sensors, you may need to stack multiple PM212 modules or step up to a higher-capacity Altronix supply—verify your load before committing to the 0.5A option, which is genuinely marginal for anything beyond a single access reader or solenoid valve.
Frequently Asked Questions
Q: Does the PM212 support -24VDC output?
A: No. The PM212 delivers -12VDC only. If you need -24VDC, consult the broader Altronix power supply catalog for alternative models.
Q: What sealed lead-acid battery sizes does the PM212 charge?
A: The PM212's charging circuit is compatible with standard sealed lead-acid batteries commonly found in UPS and backup power applications. Battery selection and sizing depend on your expected runtime requirement and load profile. Consult the full PM212 datasheet for recommended battery ampere-hour ratings.
Q: Can I parallel multiple PM212 units to increase current capacity?
A: Yes. Multiple PM212 modules can be paralleled to share the load. However, this requires manual configuration and is not a factory-integrated feature. Verify proper current sharing with your integrator before deployment.
Q: What is the warranty period on the PM212?
A: The PM212 carries an Altronix Lifetime Limited Warranty covering defects in materials and workmanship under normal use conditions.
Q: Does the PM212 ship with battery terminals and connectors?
A: The PM212 is a board-level component. Final connector selection and termination are left to the integrator to match your panel design and battery type.
Q: Is the PM212 suitable for outdoor or wet-environment mounting?
A: The PM212 is a bare board module without environmental sealing. It must be installed inside a protective enclosure if used in outdoor, damp, or corrosive environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix PM212 is a solid choice if you're building an access control or small DVR backup system and you need integrated charging within a minimal footprint. The board-level form factor and supervised outputs—AC Fail and Low Battery—remove friction from custom panel builds where you'd otherwise be hunting for external relay modules. That said, the PM212 is not a standalone product; it requires integrator-level assembly into a purpose-built enclosure.
Technical Highlights:
- Linear Regulation: The noise-free -12VDC output is a real advantage over switching supplies if you're powering analog control circuits or older access readers where ripple sensitivity is a known issue. That cleanness costs you slightly in efficiency compared to modern switching designs, but for low-power backup scenarios, the thermal load is negligible.
- Selectable Output Ratings: The dual current options (0.5A, 1A @ 12VDC, or 0.75A @ 24VDC) let you configure a single SKU across multiple OEM variants. For an integrator managing a product line, this simplifies BOM complexity and spare-parts inventory.
- Integrated Charger: Eliminates external charger hardware. On a two-device bill of materials, that's a meaningful cost and real-estate savings, especially if you're designing compact enclosures for retrofit installations.
Deployment Considerations:
- The -12VDC polarity is legacy-specific. If your target platform or end customer uses modern -48VDC or standard +12VDC architectures, the PM212 is the wrong choice—scope the full Altronix catalog for voltage-matched alternatives.
- Board-level means no connectors or enclosure included. Budget integrator labor and enclosure hardware into your cost model. If you're expecting a plug-and-play unit with DIN rails and terminal blocks, this is not it.
- The 0.5A option is marginal for any meaningful load. Two lock strikes will already push you close to rated current. Don't bet on the lower-cost variant if your actual application requires 700mA or more—paralleling or upsizing will be cheaper than field failures.
The PM212 fits well into OEM and integrator-driven access control or small backup power projects where -12VDC is your native voltage, where you're designing custom enclosures, and where component count matters. For end-customers shopping for an off-the-shelf backup power unit, this isn't the product—point them toward enclosure-integrated Altronix power supply modules instead.
