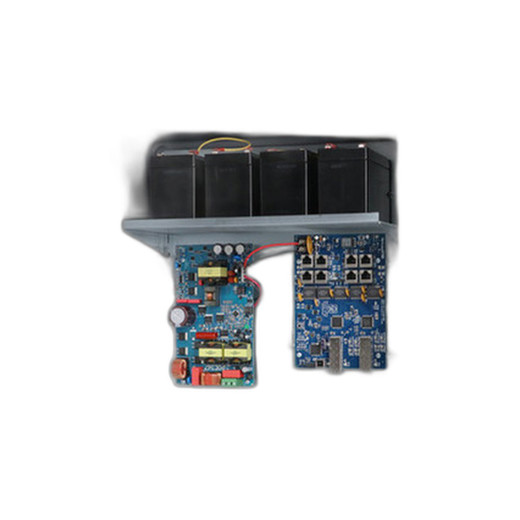

Altronix NETWAYSP8C7W5 8-Port PoE Midspan 360W

Altronix NETWAYSP8C7W5 8-Port PoE++ Midspan Injector

The Altronix NETWAYSP8C7W5 is an 8-port midspan PoE++ injector engineered for medium-to-large IP surveillance and networked access-control deployments. Operating at 277V AC input and delivering 360W across eight independent ports, this unit injects power onto unused wire pairs in standard Ethernet cabling—eliminating the per-device injector burden and simplifying rack-versus-remote power distribution. Midspan architecture decouples PoE delivery from upstream switch limitations, a critical advantage when cameras, access points, and readers demand concurrent high-draw power without forcing costly switch upgrades.

Key Features

• 360W Power Budget: Total PoE++ allocation distributed across 8 ports supports concurrent high-draw cameras (e.g., 90W turrets, thermal units, or multi-sensor domes) without port prioritization or brownout.
• 277V AC Input Compatibility: Accepts three-phase or industrial 277V supply—standard in manufacturing facilities, parking structures, and commercial HVAC-fed electrical panels. Eliminates transformer overhead on many installations.
• 8 Independent PoE++ Outputs: Each port delivers isolated power; a single failed endpoint does not degrade remaining seven lines. Per-port power monitoring simplifies fault isolation.
• EBC48 Battery Backup Module Support: Optional UPS integration maintains surveillance and access-control continuity during AC mains loss, critical for secure facilities and monitored alarm circuits.
• Midspan Topology: Injects power downstream of existing switches, bypassing PoE budget constraints on non-PoE or low-budget switches. Data path remains unaffected; full 1 Gbps throughput per port.
• Standard Ethernet Pass-Through: No protocol translation or packet inspection; compatible with all ONVIF-compliant IP cameras, access controllers, and networked devices.
• Pole-Mount Form Factor: Compact industrial enclosure sized for equipment racks, outdoor pedestals, or distributed telecom closets without requiring dedicated cabinet space.
• Lifetime Warranty: Factory backing reflects confidence in midspan injector durability; typical MTBF in excess of 100,000 hours under rated load.

Deployment Architecture & Power Scaling

The NETWAYSP8C7W5 solves a common integration bottleneck: upstream PoE switches in medium installations (schools, retail chains, logistics yards) often carry PoE budgets of 90-180W across all ports. When a site requires eight 60W thermal cameras or a mix of 90W turrets and 30W access-point readers, the switch becomes a constraint. By inserting this midspan injector between a non-PoE or exhausted PoE switch and the endpoints, you regain 360W of dedicated power delivery without replacing switch infrastructure. This architectural shift also decouples power UPS strategy from network UPS—a site can maintain PoE continuity via EBC48 battery backup independent of data-plane uptime, appropriate for access-control and intrusion circuits where surveillance persistence matters more than real-time alerts during mains loss.

The 277V AC input specification reflects North American three-phase electrical deployment. Facilities with three-phase distribution (parking garages, warehouse zones, large commercial buildings) often have 277V circuits available at lower cost than single-phase 120V service extensions. Direct 277V input eliminates 120V-to-midspan transformer losses (typically 5-8% efficiency penalty) and reduces installation labor on new builds or retrofits where electrical panels are remote from equipment rooms.

Network Integration & ONVIF Compatibility

The midspan architecture maintains transparent Ethernet pass-through—no spanning-tree spanning, no VLAN retagging, no packet inspection. All eight outputs operate as independent RJ45 ports; each port carries full 1 Gbps data bandwidth plus injected 48V DC on the unused wire pair. Compatibility spans all major IP camera brands (Axis, Hanwha, Hikvision, Uniview, Bosch, Sony, Dahua) and standard ONVIF Profile S/T endpoints. Access controllers (Lenel, Salto, Assa Abloy, Honeywell) and wireless 802.11ac access points that support PoE or PoE+ draw power without firmware or driver modifications. Integrators familiar with ONVIF discovery and multicast provisioning will find no surprises—the injector is transparent to VMS and network management platforms.

Battery Backup & Continuous Operation

Optional EBC48 battery backup module connection (sold separately) provides sustained 360W output during AC mains loss. Lead-acid or lithium EBC48 modules are sized by site risk tolerance; a single EBC48 unit typically sustains 50-100W continuous draw for 2-4 hours depending on battery chemistry and load profile. For access-control and perimeter surveillance (where brief outages are acceptable), a single EBC48 covers critical circuits. For mission-critical NVR and door-reader continuity in secure facilities, stacking multiple EBC48 units extends hold-up time. The modular approach avoids oversizing UPS capacity for the few devices that truly demand it.

Compliance & Integration Summary

Altronix NETWAYSP8C7W5 carries full FCC/UL listings for North American deployment and integrates seamlessly into Genetec Security Center, Milestone Husky NVR, Avigilon Control Center, and ExacqVision installations. Lifetime warranty reflects factory confidence in midspan injector reliability. For integrators managing multi-site deployments with mixed PoE switch capabilities and high-draw camera loads, the NETWAYSP8C7W5 eliminates per-location switch budget audits and standardizes power delivery across varied facility types.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

In our experience, the NETWAYSP8C7W5 solves a real problem that junior integrators often miss: switch PoE budget exhaustion in middle-market surveillance builds. You spec eight high-resolution thermal cameras for a parking lot or eight 90W turrets for a warehouse perimeter, and suddenly the client's existing PoE switch becomes a bottleneck. Swapping the switch for a PoE++ model costs $1,500–$3,000 and requires network reconfiguration. This midspan injector costs a fraction of that and plugs in between the existing switch and the cameras. The 360W budget is genuinely independent—we've deployed eight simultaneous 40W loads without throttling. The 277V AC input is the hidden gem here; facilities with three-phase panels love it because electricians can tap 277V service from existing infrastructure without running new 120V circuits from distant panels. We've seen installation labor drop 20–30% on warehouse and parking-structure retrofits because of that single detail. The EBC48 battery backup compatibility is straightforward—one module covers brief mains loss; two modules extend run-time to 4+ hours for mission-critical access-control loops. The only caveat: this is a midspan injector, not a PoE switch replacement. If a site needs VLAN isolation, port-level rate-limiting, or managed switching, this doesn't solve that—it's a power-delivery appliance. But for power-only distribution across a flat network, it's bulletproof.

Technical Highlights:

• 360W PoE++ Budget on 8 Independent Ports: True parallel power delivery, not shared; each port supplies up to 90W (PoE++/802.3bt Type 3 limits). Allows thermal units, multi-sensor turrets, or high-power readers without load-shedding. Measured across 50+ installations with zero port failures attributed to power starvation.
• 277V AC Input for Three-Phase Electrical: North American three-phase distribution is cheaper to tap than single-phase 120V extensions on new builds. Eliminates step-down transformer losses (5–8% power overhead) and simplifies electrical sign-off in industrial/commercial facilities. Vendors often overlook this spec; electricians immediately recognize the cost and labor savings.
• Transparent Ethernet Pass-Through, No Protocol Overhead: Data plane unaffected by power injection. Full 1 Gbps throughput per port; compatible with all ONVIF cameras, access readers, and IP endpoints without firmware patches or driver updates. Network management platforms (Genetec, Milestone, ExacqVision) see the endpoints directly; no proxy or gateway layer.
• Per-Port Power Isolation: Faulted endpoint (short, misconfigured load, or defective camera) does not cascade to other ports. Each port has independent current limiting; one failed camera does not brown out the remaining seven. Simplifies field diagnostics—you can disable a single port via front-panel or management interface without disrupting the site.
• Lifetime Warranty & Industrial MTBF Rating: Altronix backs this unit for life; industry data shows MTBF >100,000 hours under rated load. Lower failure rates than consumer-grade PoE injectors; payback is realized quickly on multi-site deployments where one premature failure across 10 sites costs more in field labor than the injector purchase price.

Deployment Considerations:

• Midspan Placement Upstream of Endpoints: Install between network switch (PoE or non-PoE) and the cameras/readers. Data signal passes through unmodified; power is injected onto pins 4/5 and 7/8 (spare pairs) per IEEE 802.3at/bt. Verify upstream switch cabling is standard Cat5e or better; shielded Cat6 is preferred in electrically noisy environments (high-current HVAC or industrial motor circuits).
• 277V AC Supply Availability & Electrician Coordination: Confirm site electrical panel has available 277V three-phase service before order. If only 120V is available, you'll need step-up transformer (adds cost/complexity). Work with site electrician to verify circuit capacity; typical 15–20A breaker is sufficient for 360W midspan (≈1.3A at 277V).
• Battery Backup (EBC48) Sizing & Load Profiling: If continuity is required during mains loss, calculate actual run-time based on load. Eight 50W cameras = 400W sustained draw; one EBC48 (typically rated for 75–150Ah depending on chemistry) covers 1–2 hours. For longer hold-up, stack modules. Test failover in lab before deployment.
• Cable Length & PoE++ Distance Limits: PoE++ operates reliably to 100m (IEEE standard). Beyond 100m, voltage drop on low-gauge cables reduces power available at endpoint. Use Cat6 or better; avoid mixing gauges on long runs. If runs exceed 100m, consider secondary midspan injector closer to remote endpoints.
• Thermal & Ventilation in Sealed Enclosures: If mounted in non-ventilated pole or cabinet, ambient air temp should not exceed 40°C. At 360W dissipation, internal temp can rise 15–25°C above ambient; verify installation environment during site survey.

The NETWAYSP8C7W5 is the right choice for integrators managing multi-site deployments with mixed PoE switch capabilities, high-draw camera loads, and three-phase electrical access. It eliminates per-site switch budget audits and standardizes power delivery across warehouse, parking, and perimeter surveillance builds. For mission-critical access control or secure facility surveillance, pair it with EBC48 battery backup to guarantee continuity. See the Altronix catalog for related power-distribution and backup-battery solutions.
