Altronix NETWAYSP2BT 802.3bt media converter/injector, 2 port

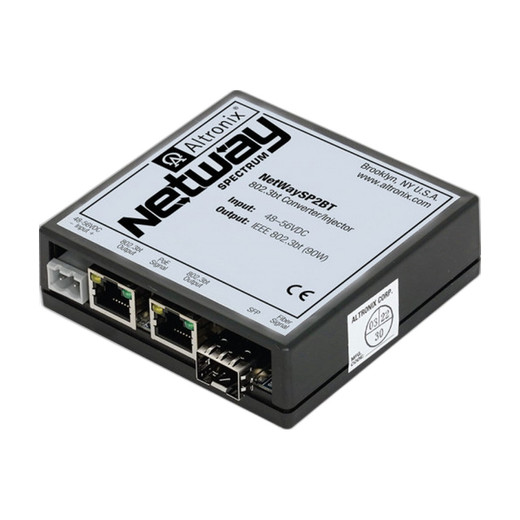

Altronix NETWAYSP2BT 802.3bt Media Converter/Injector, 2 Port

The Altronix NETWAYSP2BT is a dual-port 802.3bt PoE++ media converter and injector designed for high-power networked security and infrastructure applications. This unit delivers 180W total PoE++ budget across two Ethernet ports at 90W per port, enabling deployment of power-hungry devices including pan-tilt-zoom cameras, thermal imaging systems, and advanced analytics platforms. The NETWAYSP2BT accepts 48–56V DC input and integrates an SFP fiber port for extended-distance backbone connectivity.

Key Features

• 802.3bt PoE++ standard compliance supporting up to 90W per port
• 180W total PoE budget across two Ethernet outputs
• Integrated SFP fiber port for media conversion and long-distance transmission
• 48–56V DC input range for compatibility with standard DC power systems
• Modular plastic case design for DIN rail or wall mounting
• Simultaneous copper and fiber connectivity for hybrid network architectures
• Lifetime Limited Warranty coverage

Applications

• Multi-camera surveillance deployments requiring centralized PoE++ power distribution
• Thermal and high-resolution camera networks with extended fiber backbone connectivity
• Access control and gate-management systems with remote power injection
• Hybrid copper-fiber network expansions in large facilities
• Emergency responder and critical infrastructure power delivery over Ethernet

Specifications

• MPN: NETWAYSP2BT
• Power Standard: 802.3bt PoE++
• Input Voltage: 48–56V DC
• Total PoE Budget: 180W (90W per port maximum)
• Ethernet Ports: 2
• Fiber Port: 1 SFP
• Form Factor: Modular plastic case
• Warranty: Lifetime Limited
