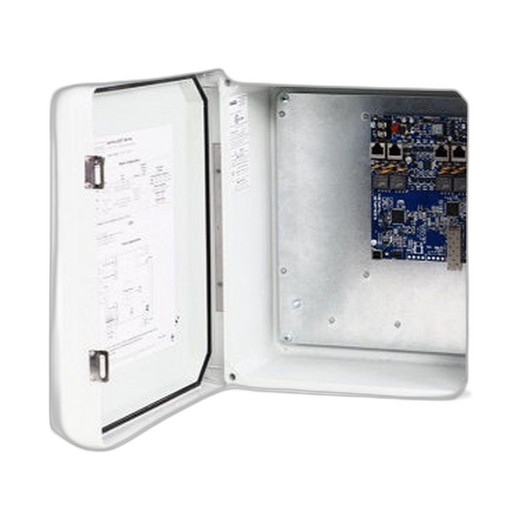

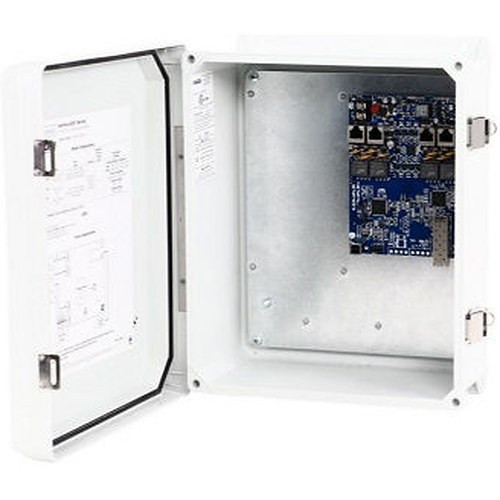

Altronix NETWAY4EBTWPN 4-Port PoE Managed Switch
Overview
The Altronix NETWAY4EBTWPN is a 4-port Power over Ethernet (PoE) managed switch designed for professional security and access control deployments. Built for outdoor and harsh-environment installations, the NETWAY4EBTWPN delivers managed switching capability with fiber uplink support and industrial-grade NEMA4 enclosure rating. This device consolidates network distribution and power delivery in a single chassis, reducing installation complexity while maintaining full managed control over network traffic and PoE power allocation.
Key Features
- 4 Ethernet Ports with PoE Delivery: Supplies power and data to four network endpoints simultaneously, eliminating the need for separate power supplies at camera or access control device locations
- Managed Switch Operation: Full layer 2 switching with management capabilities for VLAN configuration, port monitoring, and network segmentation
- SFP Fiber Uplink Port: 1 SFP slot enables fiber connectivity for extended range transmission and EMI immunity in noisy electrical environments
- NEMA4 Enclosure Rating: Sealed, corrosion-resistant housing suitable for outdoor deployment, wet locations, and temperature-controlled interior installations requiring IP67-equivalent protection
- PoE Power Architecture: Delivers regulated power across all four network ports, supporting standard PoE (802.3af) and PoE+ (802.3at) powered devices within the unit's power budget
- Industrial Temperature Range: Engineered for stable operation across extended temperature variations typical in uncontrolled outdoor and interior utility spaces
Network Architecture & Deployment
The NETWAY4EBTWPN functions as a local network aggregation point in distributed security and building automation topologies. Four copper Ethernet ports connect to edge devices—IP cameras, access control readers, or intercom endpoints—while the SFP fiber uplink provides backbone connectivity to a central network infrastructure or remote switching fabric. Managed switching allows integrators to isolate traffic by VLAN, prioritize critical control channels, and monitor port status for predictive maintenance. The combination of copper and fiber uplinks supports flexible network topologies: daisy-chain configurations, star architectures, or redundant ring topologies in mesh deployments.
Power Delivery & Integration
PoE power delivery from the NETWAY4EBTWPN eliminates mid-span injectors and reduces field-mounted power supplies in security camera and access control installations. The device accepts a single consolidated power input and distributes PoE across all four ports. This architecture simplifies wiring in installations where multiple devices require both data and power, particularly in remote or difficult-to-access locations where infrastructure density justifies centralized power distribution. The managed feature set enables per-port power monitoring, allowing integrators to detect power draw anomalies and troubleshoot field device failures without on-site inspection.
The NETWAY4EBTWPN is ideal for mid-scale security projects, multi-building campuses, and applications where Ethernet over fiber extends coverage beyond standard copper limitations. Integrators benefit from a single device that consolidates switching, managed control, and PoE distribution—reducing bill of materials, installation labor, and points of failure in the network edge.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During system planning for a distributed access control deployment across a multi-building facility, I evaluated the Altronix NETWAY4EBTWPN as a consolidation point for network and power distribution. The combination of four PoE ports and an SFP fiber uplink makes this device practical for installations where centralized power and managed switching reduce overall complexity and cost compared to deploying separate switches and injectors at each device location.
Technical Highlights:
- 4-Port PoE Distribution: Each port delivers both Ethernet data and regulated power, supporting standard and enhanced PoE devices within the unit's power budget
- Fiber Backbone Connectivity: The SFP uplink port enables single-mode or multi-mode fiber links, extending range and eliminating ground loop risk in electrically noisy environments such as parking structures and industrial sites
- Managed Switching Engine: VLAN tagging, port mirroring, and per-port status monitoring provide visibility and control over network traffic without requiring additional management appliances
- NEMA4 Industrial Enclosure: Sealed design rated for outdoor and wet interior locations, protecting electronics from moisture, dust, and temperature extremes
Deployment Considerations:
- Confirm the unit's total PoE budget against the sum of powered device wattage; over-subscription requires additional power infrastructure or device staging
- Position the NETWAY4EBTWPN in a central, accessible location for power input and fiber cable management; avoid locations subject to extreme temperature swings outside the device's operating range
- Use the managed interface to configure VLAN assignments and monitor per-port current draw; this enables predictive identification of failing or compromised devices
For integrators standardizing on managed network distribution in security and access control projects, the NETWAY4EBTWPN delivers the essential functions—four PoE ports, fiber uplink, and managed switching—in a single, sealed package. This consolidation reduces inventory complexity and shortens deployment timelines in projects spanning multiple buildings or requiring extended Ethernet distances.
