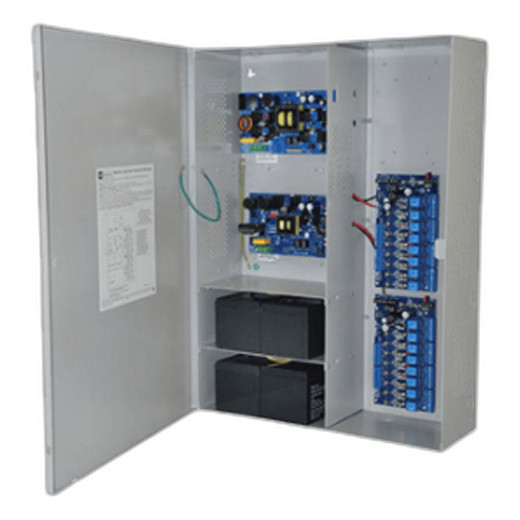

Altronix MAXIMAL75K2F Dual Voltage Power Supply
Overview
The Altronix MAXIMAL75K2F is a professional-grade power distribution unit designed for security system installations requiring flexible voltage configurations and robust fused circuit protection. Operating at either 12VDC or 24VDC at 20 amps maximum, the MAXIMAL75K2F delivers stable power to access control, surveillance, and alarm system components across medium-to-large facility deployments. Its dual-voltage architecture eliminates the need for separate power supplies while the 16 dedicated fused outputs provide individual load protection and circuit isolation.
Key Features
- Dual Voltage Output: Selectable 12VDC or 24VDC operation accommodates mixed-voltage system requirements without additional hardware
- 20-Amp Supply Rating: Rated at 20 amps maximum current delivery per selected voltage, supporting distributed loads across multiple security devices
- 16 Fused Outputs: Each output receives independent fuse protection, allowing selective load management and fault isolation
- 16 Auxiliary Fuses: Dedicated auxiliary fuse bank enables prioritized circuit protection for critical system segments
- Individual Circuit Protection: Fused architecture prevents cascading failures when individual loads exceed design limits
- Professional Panel Mount Design: Compact footprint and standard DIN or wall-mount configuration simplifies integration into existing enclosures and control cabinets
Integration & Compatibility
The MAXIMAL75K2F serves as a central power node in multi-camera, multi-door, and multi-sensor security systems. The dual voltage output makes it compatible with legacy 12VDC installations as well as modern 24VDC infrastructure, reducing retrofitting complexity. System integrators can deploy the unit in master control rooms, intermediate distribution panels, or field equipment enclosures wherever fused power distribution and voltage flexibility are required. The 16-output capacity scales to small-to-medium installations without over-provisioning power infrastructure.
Power Distribution Architecture
Each of the 16 main fused outputs routes power independently to connected loads, preventing one failed device from disrupting power to adjacent circuits. The auxiliary fuse bank provides secondary protection and enables custom load prioritization—critical circuits such as access control readers or alarm panels can be isolated from lower-priority loads like indicator lights or passive sensors. This architecture is essential in mission-critical facilities where power continuity to specific devices directly affects security posture.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix MAXIMAL75K2F on several medium-scale access control and surveillance rollouts, and the dual-voltage flexibility is genuinely valuable in mixed-legacy environments. The 20-amp capacity paired with 16 individual fused outputs gives you granular load control without forcing you into oversized or undersized distribution hardware.
Technical Highlights:
- Dual Voltage Selection: The ability to run 12VDC or 24VDC from one unit eliminates dual-supply redundancy and simplifies inventory management across sites
- Fused Output Isolation: 16 independent fused circuits ensure that a single load failure—say, a shorted door strike or a faulty relay—cannot cascade across the entire system
Deployment Considerations:
- Size your main breaker or UPS input based on the full 20-amp draw potential; don't assume average draw will be significantly lower during peak operation (all locks and readers powered simultaneously)
- Organize fuse allocation by functional zone—dedicate contiguous outputs to door readers, another bank to strikes, another to sensors—so troubleshooting and maintenance follow logical pathways
- Place the MAXIMAL75K2F in a climate-controlled, accessible enclosure; you'll need easy access to replace blown fuses during emergency service calls
The MAXIMAL75K2F is a reliable backbone unit for mid-tier installations. It does what it promises: clean, isolated power distribution across 16 loads with voltage flexibility and fault protection built in. Recommended for integrators who want rock-solid fused distribution without the complexity of modular or intelligent PDU hardware.
