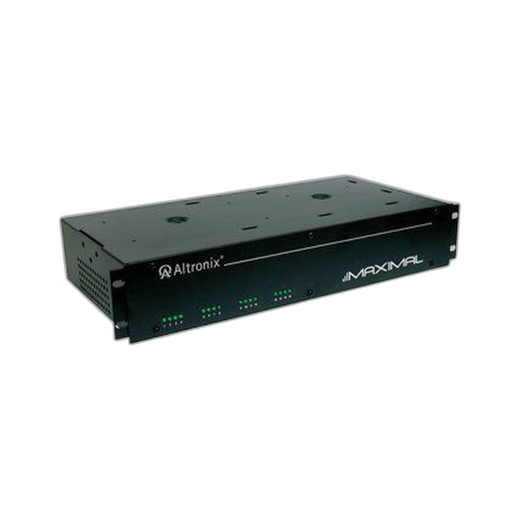

Altronix MAXIMAL33RV Rack Mount Access Power Controller

The Altronix MAXIMAL33RV is a 2U rackmount power controller designed for distributed access control and security infrastructure deployment. Accepts 220VAC input and delivers dual regulated 12/24VDC supplies with 6A capacity per output, supporting up to 16 independently fused relay outputs for modular device control and failsafe operation.

Key Features

• Dual 12/24VDC regulated power supplies, 6A maximum per supply
• 16 fused relay outputs for independent load switching and protection
• 220VAC input for international and industrial power configurations
• 2U rackmount form factor for standard cabinet integration
• Individual fusing on each relay output for circuit isolation
• Lifetime Limited Warranty coverage

Applications

• Multi-door access control relay switching in enterprise facilities
• Distributed power management for networked security devices
• Industrial automation and HVAC integration in security systems
• Failsafe lock control with independent output isolation

Specifications

• Form Factor: 2U rackmount
• Input Voltage: 220VAC
• Output Voltage: Dual 12/24VDC
• Maximum Current: 6A per supply
• Relay Outputs: 16 fused independent channels
• Warranty: Lifetime Limited Warranty
