Altronix MAXIMAL13E Dual Output 12/24VDC Power Supply
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

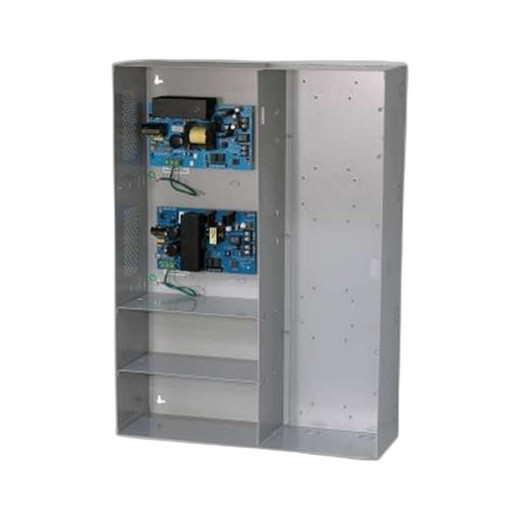

Altronix MAXIMAL13E Dual Output 12/24VDC Power Supply

The Altronix MAXIMAL13E is a dual-output switching power supply designed for security and access control applications requiring independent voltage regulation. Operating from 115VAC input, this unit delivers selectable 12VDC or 24VDC on two isolated outputs with different current ratings, enabling simultaneous powering of multiple devices with distinct voltage requirements.

Key Features

  • Dual independent outputs with selectable voltage (12VDC or 24VDC) on each channel
  • Output 1 rated for 3.5A continuous current
  • Output 2 rated for 6A continuous current
  • 115VAC input voltage operation
  • Compact BC800 enclosure for standard DIN rail or wall mounting
  • Isolated outputs prevent voltage conflicts between connected devices
  • Lifetime Limited Warranty coverage

Applications

  • Access control systems with mixed 12VDC and 24VDC device requirements
  • Video surveillance installations requiring dual voltage support
  • Intrusion detection networks with heterogeneous sensor populations
  • Emergency communication and notification systems

Specifications

  • Input Voltage: 115VAC
  • Output Voltage: 12VDC / 24VDC (selectable per output)
  • Maximum Current Output 1: 3.5A
  • Maximum Current Output 2: 6A
  • Number of Outputs: 2
  • Enclosure: BC800
  • Warranty: Lifetime Limited
Expert Analysis
Specifications
Input Voltage: 115VAC
Output Voltage: 12VDC / 24VDC (selectable)
Max Current: 3.5A (output 1) and 6A (output 2)
Number of Outputs: 2
Enclosure Dimensions: BC800
Warranty: Lifetime
Type: Power Supply
Power: 24VDC
Voltage DC: 12VDC
Voltage AC: 115VAC
