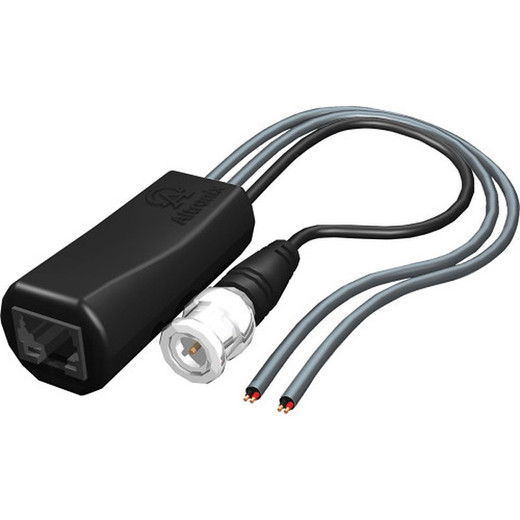

Altronix HUBWAYAV Passive Video/Data/Power Balun
The Altronix HUBWAYAV is a passive balun engineered to consolidate video, data, and power transmission onto a single UTP cable run in 24VAC and 28VAC camera installations. This approach eliminates the cable sprawl typical of analog surveillance builds—instead of running separate coax for video, twisted-pair for data, and multi-conductor for power, you thread one UTP run to each camera location and split the signals at the head end. For integrators managing retrofit jobs or dense camera layouts in warehouses and retail environments, that single-cable consolidation cuts labor cost and reduces clutter in cable trays and conduit.
Key Features
- Passive Design with No External Power: The HUBWAYAV requires no separate power supply or active electronics. This eliminates a failure point and simplifies field deployment—one less device to mount, configure, or troubleshoot.
- Video, Data, and Power on One UTP Cable: Combines analog video signal, Ethernet or serial data, and 24VAC/28VAC power in a single run. Meaningful labor savings on new construction; on retrofit, you avoid drilling multiple holes or pulling multiple conduit runs where space is constrained.
- 24VAC and 28VAC Compatibility: Works with standard analog camera power supplies commonly deployed in existing surveillance infrastructure. No need to swap or upgrade power distribution hardware on refresh projects.
- Straightforward Integration:
- Passive baluns have no configuration menus, no firmware, no learning curve. Connect transmit side to your camera and power supply, connect receive side to your DVR or matrix switcher input. Integration time measured in minutes, not hours.
- Reduced Cabling Footprint: Single UTP cable instead of three separate runs means lower material cost (one spool instead of three), faster cable management in dense installs, and reduced physical bulk in junction boxes or at camera mounts.
- Lifetime Limited Warranty: Altronix backs the HUBWAYAV with a lifetime warranty, meaning your investment is protected against manufacturing defect for the life of the system. No surprise replacement costs mid-deployment.
Integration and Compatibility
The HUBWAYAV is purpose-built for analog surveillance systems powered by 24VAC or 28VAC supplies. Install one balun pair per camera: at the camera end (transmit), pass video, data, and 24VAC through the balun onto the UTP run; at the control end (receive), split the signals back out to your DVR, matrix switcher, or data network. Works with standard analog monochrome and color cameras, plus any serial control bus (e.g., RS-422/485 for PTZ or matrix switching) that fits within data bandwidth. Not suitable for IP cameras or PoE systems—those use entirely different architectures. For network infrastructure planning, confirm your UTP run meets distance and quality specs (Cat5e or better, properly terminated); signal degradation over very long runs is possible with passive transmission.
Deployment Context
Deploy the HUBWAYAV in 24VAC analog camera installations where you want to consolidate cabling labor or retrofit sites with tight conduit access. Common scenarios include warehouse surveillance (where multiple cameras feed a central DVR), retail loss prevention (retrofitting existing analog systems), and industrial sites already running 24VAC power infrastructure. Not appropriate for IP-based systems, HD-SDI, or high-bandwidth digital video formats. If you're migrating to IP or need remote power management, consider network-based architectures instead.
Frequently Asked Questions
Q: Can the HUBWAYAV carry PTZ camera control signals?
A: Yes, if your PTZ control protocol (RS-422, RS-485) fits within the data bandwidth on the UTP cable. The balun's data path is frequency-agnostic for low-speed serial signals. Confirm control signal levels and impedance match your camera and control hardware.
Q: What's the maximum cable run distance for the HUBWAYAV?
A: Distance depends on UTP cable quality, video bandwidth, and acceptable signal loss. Passive baluns typically perform well up to 300–500 feet on quality Cat5e or better. Beyond that, signal degradation may occur. Test your specific cable run or consult the datasheet for detailed distance guidance.
Q: Is the HUBWAYAV suitable for outdoor camera installations?
A: The balun itself is indoor-rated. For outdoor use, the balun should be housed in a weatherproof enclosure at the camera mount or in a nearby protected junction box. Your outdoor camera must be rated for external deployment; the HUBWAYAV doesn't add weather resistance.
Q: Does the HUBWAYAV work with IP cameras or PoE?
A: No. The HUBWAYAV is designed exclusively for analog video systems with 24VAC/28VAC power. IP cameras use different signal types and power delivery (PoE, PoE+, etc.) and are not compatible.
Q: Do I need a matching pair of HUBWAYAV units?
A: Yes. One balun installs at the camera end (to encode video, data, and power onto UTP), and one at the control end (to decode and split the signals back out). They work as a matched pair over a single UTP run.
Q: What warranty does the HUBWAYAV carry?
A: Altronix provides a Lifetime Limited Warranty on the HUBWAYAV, covering manufacturing defects for the life of the product.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix HUBWAYAV is a low-cost, low-complexity solution for consolidating analog camera cabling in 24VAC installations. Its passive design—no power, no electronics—is both a strength and a boundary: you get rock-solid reliability and no points of failure, but you're also limited to standard analog video bandwidth and relatively modest cable distances. If you're managing a retrofit where conduit is tight or labor is expensive, the HUBWAYAV cuts real costs. The HUBWAYAV shines when you're extending existing 24VAC infrastructure, not migrating to IP.
Technical Highlights:
- Passive Balun, No External Power: Zero external power requirement means zero active failure points. You avoid the risk of a powered device failing mid-deployment and taking video offline. In a large install with dozens of camera locations, that reliability multiplier adds up.
- Single UTP Consolidation: Three signals (video, data, power) on one Cat5e or better UTP cable reduces material cost per camera location by roughly one-third compared to running coax + data + power separately. On a 30-camera warehouse retrofit, that's measurable savings in cable, conduit, labor, and junction box real estate.
- 24VAC/28VAC Compatibility: Works with any standard analog power supply in that voltage range. No need to replace power infrastructure on refresh; you're working within existing electrical plant.
Deployment Considerations:
- Distance is the hard limit: passive transmission degrades over long runs. Test your actual UTP cable and route before committing to a full deployment. 300–500 feet is typical; beyond that, expect signal loss.
- The HUBWAYAV is analog-only. If you're planning an IP migration or hybrid analog/IP system, this balun won't carry IP video. You'll need a separate migration path for that traffic.
- Passive baluns don't amplify or condition the signal, so cable quality and termination matter. Loose connectors or damaged UTP will degrade video. Budget extra time for cable testing and validation.
The HUBWAYAV is built for analog-to-analog consolidation in space-constrained or cost-sensitive retrofits. If you're building new and considering mixed-vendor systems or future IP expansion, evaluate PoE-based power infrastructure instead. For pure analog legacy systems where cabling density is the pain point, the HUBWAYAV solves the problem without adding complexity.
