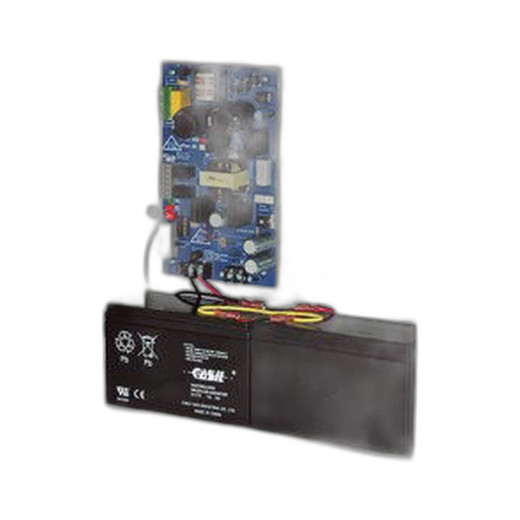

Altronix EFLOW3N Altronix EFLOW3N Power Supply/Charger

Altronix EFLOW3N Power Supply/Charger

The Altronix EFLOW3N is a UL Listed power supply and battery charger designed for security infrastructure requiring reliable 12/24VDC backup power. The unit accepts 120VAC 60Hz input and delivers up to 2A total output current, making it suitable for access control, alarm monitoring, and low-voltage security applications requiring continuous operation with battery backup capability.

Key Features

• Integrated battery backup and charger in single unit
• Selectable 12/24VDC output voltage
• UL Listed for fire alarm disconnect compliance
• AC fail supervision and low battery monitoring
• Battery presence detection
• 2A maximum total current output
• Single output configuration
• Lifetime Limited Warranty

Applications

• Fire alarm system backup power
• Access control system power and battery charging
• Security monitoring with UPS capability
• Low-voltage DC distribution with failover support

Specifications

• Input: 120VAC 60Hz
• Output: 12/24VDC selectable, 1 output
• Max Current: 2A total
• Battery Backup: Yes
• Fire Alarm Disconnect: Yes
• Supervision: AC Fail, Low Battery, Battery Presence
• Approvals: UL Listed
• Warranty: Lifetime Limited
