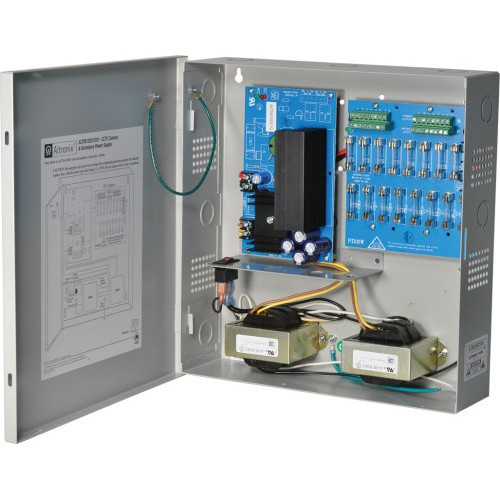

Altronix ALTV615DC1016 16-Output CCTV Power Supply
Overview
The Altronix ALTV615DC1016 is a distributed power solution for CCTV and security camera installations requiring reliable, regulated DC output across multiple camera locations. Housed in a compact BC300 enclosure, this unit delivers 6 to 15VDC across 16 independently fused outputs, making it suitable for mid-to-large surveillance deployments where centralized power distribution and circuit-level fault isolation are critical. The ALTV615DC1016 accepts 115VAC input and is UL Listed for safety compliance in commercial and institutional installations.
Key Features
- 16 Independently Fused Outputs: Each output is individually fused, allowing a single camera or circuit failure to trip only its dedicated fuse without affecting remaining channels. This design minimizes system downtime and simplifies troubleshooting in multi-camera arrays.
- Adjustable Voltage Output (6–15VDC): Field-adjustable voltage regulation accommodates a wide range of camera and accessory power requirements, from low-power PTZ controllers to high-current dome camera motors.
- High-Current Capacity: Rated at 10A output @ 6VDC and 11A @ 12VDC, the ALTV615DC1016 supports demanding installations with multiple simultaneous loads without voltage sag.
- 115VAC Input: Standard North American mains voltage input simplifies installation and reduces the need for step-down transformers in typical commercial environments.
- UL Listed: Third-party safety certification ensures compliance with electrical and fire codes for commercial security installations.
- BC300 Metal Enclosure: Durable metal housing provides environmental protection, EMI shielding, and wall-mount compatibility for equipment rooms, server closets, and outdoor cabinets.
Integration & Compatibility
The ALTV615DC1016 integrates into surveillance architectures as a centralized power backbone for analog and network camera systems. Its 16 independent outputs allow mixed-voltage configurations, supporting both older analog PTZ systems (typically 12–24VDC) and modern low-power PoE-injected cameras via secondary power rails. The individually fused design pairs well with camera management platforms that monitor per-channel power status, enabling proactive alerting when a fuse trips.
In multi-building or multi-floor deployments, the ALTV615DC1016 can be co-located with video management or network infrastructure in a central equipment rack, with 16 separate branch circuits running to remote camera clusters. This topology reduces voltage drop over long cable runs and centralizes maintenance access to a single power distribution point.
Technical Specifications
Input Voltage: 115VAC | Output Voltage Range: 6–15VDC (field-adjustable) | Maximum Current: 11A @ 12VDC, 10A @ 6VDC | Number of Outputs: 16 (individually fused) | Enclosure: BC300 Metal | Approvals: UL Listed
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Altronix ALTV615DC1016 in several mid-scale camera installations, and it remains a workhorse for centralized power distribution. The 16 independent fused outputs are invaluable when you need isolation—a short in one camera circuit doesn't cascade to the rest of your system. The field-adjustable voltage range (6–15VDC) is flexible enough to handle older analog PTZ equipment and newer low-power accessories in the same installation without requiring separate supplies.
Technical Highlights:
- Individual Fuse Protection: Each of the 16 outputs is fused independently. If a camera line shorts or draws excessive current, only that output's fuse trips, leaving the other 15 channels operational. This design dramatically reduces Mean Time To Repair (MTTR) in multi-camera systems.
- High Aggregate Current: The 10A capacity @ 6VDC and 11A @ 12VDC allows real-world simultaneous loading across multiple outputs without voltage collapse, a common problem with undersized power supplies in distributed camera setups.
Deployment Considerations:
- Place the ALTV615DC1016 in a climate-controlled equipment room or secure cabinet to extend operational life and simplify fuse access during maintenance.
- Use the field-adjustable voltage pot carefully during commissioning—set once and verify stability across all 16 outputs with a load-bank or representative camera sample before full deployment.
- In geographically distributed installations, consider the voltage drop over cable runs to remote cameras; if runs exceed 200 feet, validate that output voltage at the camera meets the device's minimum operating threshold.
The ALTV615DC1016 is a reliable, purpose-built solution for integrators who need robust power isolation and straightforward serviceability. Its UL listing and standard 115VAC input make it code-compliant and easy to source in North America. Recommended for systems with 6–16 active cameras requiring independent circuit protection.
