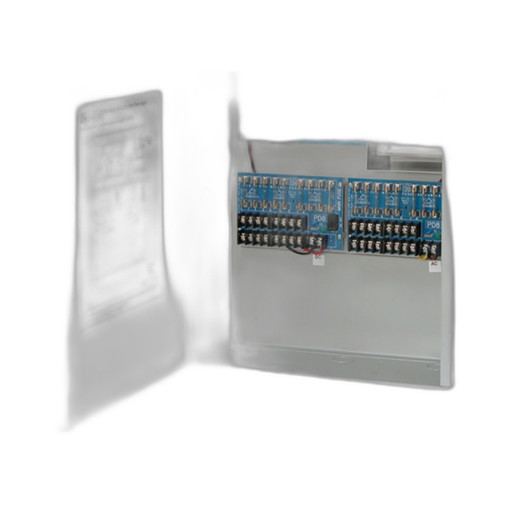

Altronix ALTV1224C220 16-Output Dual-Voltage Power Supply

The Altronix ALTV1224C220 delivers simultaneous 12VDC and 24VAC power from a single 220VAC input, supporting 16 independently fused outputs across dual voltage rails. This wall-mount supply provides 2A capacity at 12VDC and 0.5A at 24VAC per output, making it suitable for mixed-voltage security infrastructure deployments requiring centralized power distribution with independent circuit protection.

Key Features

• 16 fused outputs: 8 @ 12VDC, 8 @ 24VAC simultaneously
• 2A @ 12VDC and 0.5A @ 24VAC per output
• 220VAC, 50Hz input with 198–256VAC working range
• Optional backup battery support: 12AH/12VDC (1 or 2 units, sealed lead-acid or gel-cell)
• CE approved for European installations
• Compact wall-mount form factor: 15.5" H × 12" W × 4.5" D
• Operating temperature range: 0°C to 49°C (32°F to 120°F)
• Lifetime Limited Warranty

Applications

• European CCTV and security camera systems requiring dual voltage
• Access control and intercom installations with mixed-voltage devices
• Alarm panel and sensor networks in central equipment rooms

Specifications

• Input: 220VAC, 50Hz (198–256VAC working range)
• Output: 12VDC and 24VAC simultaneous
• Current: 2A @ 12VDC / 0.5A @ 24VAC per output
• Outputs: 16 total fused (8 @ 12VDC, 8 @ 24VAC)
• Backup Battery: 12AH/12VDC (optional, 1 or 2 units)
• Dimensions: 15.5" H × 12" W × 4.5" D (393.7mm × 304.8mm × 114.3mm)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Approvals: CE
