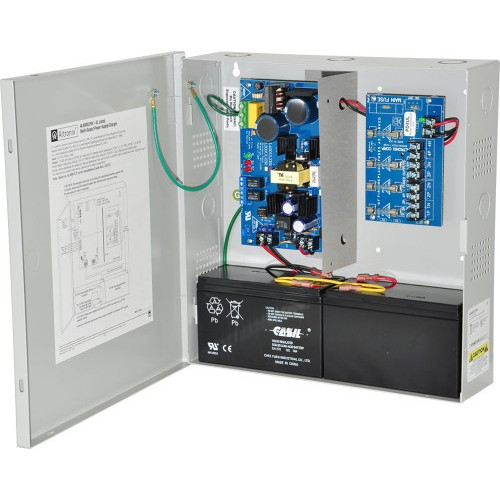

Altronix AL400PD4220 4-Output 220VAC Power Supply
The Altronix AL400PD4220 is a modular 4-output regulated power supply engineered for security installations in 220VAC utility environments. This unit integrates the PD4 output module to deliver four independent regulated DC outputs, making it the foundation for distributed power architecture in multi-device deployments across camera systems, access control, and door strikes. The AL400PD4220 is purpose-built for integrators managing regional installations where 220VAC is the standard utility voltage, eliminating the need for step-down transformers.
Key Features
- 4 Independent Regulated Outputs: The PD4 module configuration provides four separate, regulated DC feeds. This isolation means a fault or overload on one output won't cascade to others — critical in multi-device environments where downtime ripples across the system.
- 220VAC Input Configuration: Directly accepts 220VAC utility input without requiring a separate transformer. Simplifies installation in European, Australian, Asian, and other 220VAC regions and eliminates a component point of failure.
- Modular Architecture: The PD4 output module design allows field reconfiguration and future expansion. If deployment requirements shift, the module can be adapted or swapped without replacing the entire chassis.
- Regulated Output Delivery: Each of the four outputs is regulated, meaning voltage remains stable across the rated load range. Voltage sag under load is a real problem for cameras and access control readers — regulation keeps performance consistent.
- Distributed Power for Security Systems: Supports multi-camera deployments requiring separate power feeds to each unit, and access control systems where door strikes, mag locks, and readers each need dedicated current paths. A single power supply failure doesn't take down the entire building.
- Lifetime Limited Warranty: Backed by Altronix's lifetime limited warranty, reflecting manufacturer confidence in component longevity. Standard support and replacement coverage eliminate extended support costs.
Integration and Deployment Context
When designing a security infrastructure for a 220VAC region, power distribution is often overlooked until installation. The AL400PD4220 addresses this by centralizing regulated power in one chassis, then distributing four independent outputs to distributed field devices. This topology is standard in warehouse automation, access control systems spanning multiple doors, and mid-scale camera deployments where each camera or device benefits from its own regulated feed. Daisy-chaining smaller unregulated supplies introduces cumulative voltage sag; the AL400PD4220 eliminates that by regulating each output independently.
For integrators managing projects across multiple countries or regions, the 220VAC input eliminates the need to stock multiple power supply variants. Standardizing on the AL400PD4220 reduces spare parts inventory and installation lead time.
When to Choose a Different Model
If your installation requires 110VAC input (North American standard), you'll need a different Altronix model configured for that utility voltage. If you need more than four outputs, consider a higher-capacity Altronix chassis or a stackable modular configuration — the Altronix catalog includes options for larger distributed systems. For single-device or dual-output scenarios, a smaller Altronix power module may be more cost-effective.
Frequently Asked Questions
Q: Is the AL400PD4220 suitable for outdoor cabinet installations?
A: The AL400PD4220 is designed for indoor enclosure mounting. Ensure adequate ventilation and temperature control around the power supply. Outdoor cabinets must have climate control to maintain the operating temperature range specified in the datasheet.
Q: Can I parallel multiple AL400PD4220 units for redundancy?
A: Paralleling unregulated supplies is straightforward; paralleling regulated supplies requires careful current-sharing design. Consult the datasheet or Altronix technical support before designing a redundant configuration.
Q: What's the maximum load per output on the AL400PD4220?
A: Output current ratings are specified in the datasheet and depend on voltage configuration. Verify each output's rated amperage before connecting devices; undersizing leads to voltage sag and dropout.
Q: Does the AL400PD4220 include surge protection or battery backup?
A: The AL400PD4220 is a regulated power supply without integrated UPS or surge suppression. Add external surge protectors on the input and battery backup if required by your system design.
Q: Is the AL400PD4220 compatible with Altronix expansion modules or other Altronix accessories?
A: Yes, the modular architecture allows integration with compatible Altronix output and auxiliary modules. Verify module compatibility with the specific chassis revision before ordering.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix AL400PD4220 is a solid choice for distributed power architecture in 220VAC regions. The four independent regulated outputs are a real advantage over unregulated supplies — voltage sag is your enemy when you're running camera feeds and access control readers on separate rails, and regulation eliminates that problem across all four outputs simultaneously.
Technical Highlights:
- Independent Output Regulation: Each of the four outputs maintains voltage stability independently, preventing cascade failures and voltage sag that would degrade camera or access control performance.
- 220VAC Direct Input: No external transformer required — installation in 220VAC regions is straightforward and eliminates a component point of failure and installation complexity.
- Modular PD4 Architecture: The output module design allows reconfiguration or expansion without replacing the entire chassis, reducing long-term cost of system modifications.
Deployment Considerations:
- Verify output current ratings against your device load requirements before deployment — undersizing outputs leads to voltage dropout under peak draw.
- Plan thermal management in the cabinet housing the AL400PD4220 — ensure adequate ventilation. Enclosed, unventilated cabinets will shorten the supply's lifespan.
- If you require redundancy or UPS-style battery backup, the AL400PD4220 must be paired with external protection — it provides no built-in surge suppression or backup power.
Deploy the AL400PD4220 in mid-scale warehouse automation projects, multi-door access control systems, or regional camera deployments spanning 4–8 devices where each device deserves its own regulated power rail and 220VAC utility input is the standard.
