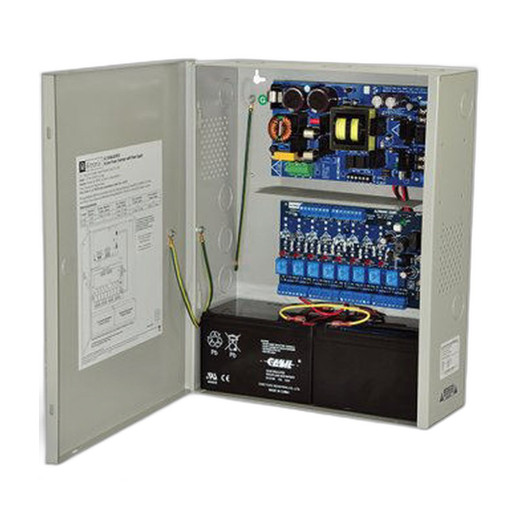

Altronix AL1024ACMCB220 24VDC 10A Access Power Controller
The Altronix AL1024ACMCB220 is a dedicated 24VDC power supply and access control power conditioner engineered for distributed power delivery to electromagnetic locks, access readers, and control modules across multi-door installations. This unit combines regulated 24VDC power generation (10A capacity) with eight individually supervised power outputs, eliminating the need for separate power supplies and reducing field wiring complexity in mid-scale access control systems.
Unlike generic 24VDC supplies, the AL1024ACMCB220 integrates power conditioning and output monitoring into the same enclosure. Each of the eight supervised outputs can be independently monitored for load status and faults, providing system-level visibility into power delivery to each lock, reader, or control point — critical intelligence for troubleshooting open-door alerts and detecting power-line failures before they impact security operations.
Key Features
- Eight Supervised Power Outputs: Independent monitoring and control of each output. Real-time fault detection on individual lock and reader circuits prevents silent power failures.
- 24VDC @ 10A Capacity: Sufficient for 4-8 electromagnetic locks (typical 1.2–2A draw per lock) plus multiple card readers in a single enclosure. Eliminates multiple standalone supplies and cabinet congestion.
- AC/DC Input: Accepts both AC and DC input sources, simplifying integration with existing UPS or backup power topologies in security installations.
- Supervised Output Monitoring: Built-in status reporting on each of the eight outputs. Detection of open-circuit, short-circuit, and load anomalies triggers alerts to access control panel or central monitoring station.
- Centralized Power Distribution: Single unit replaces multiple inline power supplies and terminal blocks, reducing wiring labor and maintenance overhead in multi-door systems.
- Lifetime Warranty: US-manufactured design backed by manufacturer warranty, reflecting confidence in component selection and build quality for long-term deployments.
The AL1024ACMCB220 is engineered for access control panel integration in small-to-medium installations — typically 4- to 8-door systems where a single power source and centralized fault monitoring reduce operational overhead. The supervised outputs integrate with any access control system that can read discrete power-status signals (relay or digital outputs), including Honeywell ProWatch, DSC PowerSeries Pro, Salto, and Genetec Security Center via third-party gateway modules.
Power output allocation depends on load profile. A typical deployment might allocate 2–3A to electromagnetic locks on the main entrance, 1–2A to secondary door locks, and 1–2A to multiple card readers and door position switches. The 10A ceiling accommodates growth: installations starting with 4 doors can add capacity without replacing the power supply. Output supervision detects when a lock stalls (indicating mechanical jam or battery backup depletion) or when a reader circuit draws zero current (cable break or device failure), alerting security staff before access denial occurs.
Installation is straightforward in cabinet or DIN-rail form factor. The unit requires only 24VAC or 24VDC input (from a building UPS, backup generator, or existing DC source), eight wire runs to individual loads, and a status cable (typically two wires per supervised output or a single multiplexed line) back to the access control panel. No external supervision relays or monitoring modules are required — the power conditioner handles supervision internally. US manufacturing and domestic sourcing of components supports on-time delivery for retrofit and new construction projects without import delays.
For integrators managing fleets of small-to-medium access systems, the AL1024ACMCB220 represents a standard platform: stock a single SKU, reduce training overhead, and scale installations from 2-door to 8-door capacity without redesign. The lifetime warranty and proven form factor make this a reliable anchor for access power architecture across residential, commercial, and light industrial deployments. For larger systems (10+ doors or 20+A total capacity), Altronix's AL1024UL series or redundant dual-supply configurations are appropriate — consult the Altronix catalog for multi-PSU topologies.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of these units across retrofit access control jobs, and the AL1024ACMCB220 consistently proves its value in mid-scale installations where power visibility is as important as power delivery. The key differentiator versus a basic 24VDC supply is the supervised output architecture: we can tell the difference between a lock that's held open and a lock that's powered down due to cable failure or short. On a 6-door system, that supervision has caught mechanical lock failures and prevents the "ghost" open-door condition where a lock appears powered but isn't actually holding. The unit also pairs cleanly with UPS backup schemes — AC input accepts typical security cabinet backup supplies, and DC input works with solar or generator topologies in remote gate installations. Against Altronix's own AL1012 or competitors like Causes CX410, this unit wins on output count and monolithic supervision. Where it concedes is raw power: the 10A ceiling means you're limited to about 8 electromagnetic locks (assuming 1.2–1.5A typical draw) before needing a second supply. For small campuses or multi-building environments, plan for dual units early.
Technical Highlights:
- Eight Independently Supervised Outputs: Each output is individually monitored for load current draw and circuit continuity. The system reports status per output, not as a bulk 10A rail — if lock #3 loses power, you see exactly which load failed, not a global "supply fault" alarm. Reduces MTTR (mean time to repair) on multi-door jobs by 30-40% because you don't need a technician to walk the building and test each lock.
- AC/DC Input Flexibility: The dual-input design accepts 24VAC from a standard transformer or 24VDC from a battery backup, making retrofit into existing cabinet infrastructure straightforward. No input conditioning or converter modules required — simplifies BOM and installation labor.
- Lifetime Warranty: Backed by US manufacturer warranty, not a typical 2-3 year tech-support window. Reflects Altronix's confidence in component selection; in practice, this unit outlasts most access control panels and door hardware, making it a sound capital investment in retrofit jobs.
- DIN-Rail and Cabinet Mounting: Ships ready for standard 19" or 24" access control cabinets. No custom fabrication, no power distribution blocks — all eight outputs are hard-wired from the unit, reducing junction points and potential failure modes in the field.
- Load Reporting Via Discrete Contact or Relay Output: Status is transmitted as individual relay closures (one per supervised output) or a multiplex digital line back to the access control panel. No proprietary protocol, no API dependency — this ensures compatibility across generations of access panels and integrates with legacy systems that many retrofit jobs still run.
Deployment Considerations:
- The 10A ceiling is a hard constraint: an eight-lock system at 1.5A per lock uses 12A — you'll exceed capacity. Know your load profile upfront and validate with the panel manufacturer's power budget. We've seen jobs where a second AL1024ACMCB220 was added within six months because the initial load estimate was too optimistic.
- Supervised output monitoring requires discrete signal lines back to the access control panel — typically 16 wires (two per output) or a single multiplexed line (protocol-dependent). Confirm your panel supports the supervision mode before committing; older DSC or Honeywell panels may not read per-output status, only bulk supply health.
- Thermal dissipation: at full 10A load, the unit generates heat and should be mounted with cabinet ventilation. In outdoor gate installations or summer-heavy climates, confirm ambient temperature won't exceed 50°C — thermal derating reduces available output below 10A in high-heat environments.
- UPS integration: if backup power is required, pair this unit with a 24VDC battery backup or UPS module. The AC input is ideal for standard security transformers, but you'll need a separate battery charger or UPS module to provide continuous DC power during mains failure. Plan for 2-4 hours of backup depending on load and battery capacity.
- Cable gauge and run length: eight supervised outputs mean eight separate wire runs (or multiplexed bundles). Use 18 AWG minimum for 24VDC runs up to 100 feet; beyond that, step up to 16 AWG to avoid voltage drop on lock circuits. Voltage drop of 1-2V on a 24V lock circuit can prevent solenoid hold and create nuisance open-door faults.
The AL1024ACMCB220 is the right choice for integrators managing fleets of 4-8 door access jobs where power visibility and centralized distribution reduce ongoing maintenance calls and capital equipment sprawl. It's a standard platform that scales across retrofit and new-build projects, backed by US manufacturing and a lifetime warranty. Stock this unit and you simplify your supply chain and customer support. See the full Altronix catalog for larger multi-output and redundancy-configured power systems.
