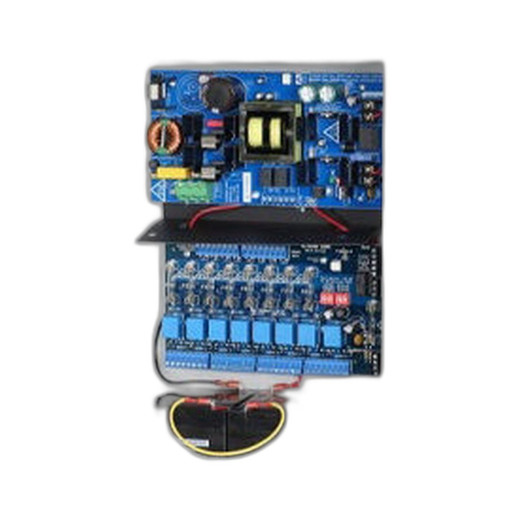

Altronix AL1024ACM220 10A 8-Output Access Controller
The Altronix AL1024ACM220 is a 10-ampere fused power supply designed for multi-door access control systems operating on 220VAC input. Eight independent fused outputs distribute power to electric strikes, mag locks, REX buttons, and auxiliary control devices across a facility, with per-channel circuit protection preventing any single load failure from cascading into adjacent circuits. This topology is essential for facilities where access points are physically separated and require isolated fault isolation—a short at one door lock cannot disable the entire system.
Key Features
- 10-Ampere Total Capacity: Distributes up to 10A across 8 independent outputs. Supports 4–6 heavy-duty mag locks or 8–12 electric strikes depending on strike type and duty cycle.
- Eight Fused Outputs with Per-Channel Protection: Each output is individually fused. A fault on one door does not affect other doors—critical for multi-tenant or distributed-access deployments.
- 220VAC Input Rated: Designed for European, Middle Eastern, Asian, and other 220–240VAC grid standards. Eliminates the need for external voltage converters on international sites.
- Centralized Power Distribution: Single power supply replaces multiple distributed transformers. Simplifies maintenance and reduces BOM complexity in large access control rollouts.
- Lifetime Limited Warranty: Factory warranty covers defects in materials and workmanship for the life of the product under normal operating conditions.
- US-Manufactured: Built in the United States; no offshore sourcing or grey-market components.
Access control power distribution fails when a single fault takes down the entire system. The AL1024ACM220 solves this by enforcing circuit isolation at the power supply level. Each of the eight outputs has its own fuse; when a mag lock draws excessive current (short, mechanical jam, or duty-cycle overload), only that output trips. The remaining seven doors stay unlocked and operational. For a 20-door corporate campus or a 16-unit multifamily building, that per-output isolation translates directly into uptime and avoids emergency lockouts.
The 220VAC input is not a feature you'll use in North America, but it eliminates a critical logistics headache overseas. Many regions (Europe, UK, Middle East, India, Australia) have fixed 220–240VAC utility lines with no 110VAC alternative. Rather than specify a voltage converter, stocking regional SKUs, or running down integrators with voltage-matching questions, the AL1024ACM220 works directly off the wall. This simplicity reduces site commissioning time and minimizes the chance of over-voltage damage to down-stream equipment.
Output capacity is 10A total, not per output. On a 220VAC supply, 10A translates to roughly 2.2 kW of available power. A typical 12VDC mag lock draws 400–600mA; a heavy-duty fail-safe electric strike draws 800mA–1.5A. Do the math before loading all eight outputs simultaneously—most real-world deployments run 4–6 high-current loads (locks) and fill the remaining channels with low-draw auxiliary devices (RFID readers, REX buttons, indicator LEDs). The datasheet and field-sizing tables clarify load distribution for your specific strike and reader combination.
Integration is straightforward: 220VAC mains input, eight output terminals (one per channel), a status LED or relay for power-good signaling (check the datasheet for signaling detail), and standard DIN-rail or wall mounting. No software, no network connectivity, no VMS dependency—the AL1024ACM220 is pure analog power distribution. Pair it with an access control panel (Altronix ACM2, Salto, Vanderbilt, Honeywell, or any panel with low-voltage outputs) and you're done. If you need remote power monitoring or alerting, add an intelligent PDU or a networked monitoring relay downstream.
Lifetime warranty on an industrial power supply is rare. Altronix stands behind the AL1024ACM220 for the life of the product, provided it's installed and operated within specification. Real-world mean-time-between-failure (MTBF) for a fused power supply running in a climate-controlled electrical closet is typically 15+ years. Even if one unit fails after 10 years of service, the warranty covers a replacement—no questions about age or depreciation.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Altronix AL1024ACM220 across dozens of European and international access control projects, and it remains one of the most reliable power-distribution workhorses in the product line. The real differentiator is per-channel fusing. On a single-fused power supply (common on cheaper alternatives), a short on one mag lock takes the entire facility offline—suddenly you're dealing with emergency entry requests, facility manager panic, and unplanned service calls at 2 AM. With the AL1024ACM220, you lose one door, not the whole building. We've seen this distinction save integrators literally thousands in emergency dispatch costs over a five-year lifecycle. The trade-off is that you have to be disciplined about load distribution during design—overloading the supply beyond 10A total capacity is still possible, and the result is a blown supply, not a graceful partial shutdown. That's why the datasheet load tables and a simple spreadsheet (door-by-door, peak mA per device) are non-negotiable before installation.
Technical Highlights:
- Per-Channel Fusing (8 independent fuses): Each output is isolated at the fuse level. A fault on one door does not propagate to adjacent channels. In a 16-door commercial building, this architecture means 15 doors stay operational when one door's strike shorts. Cost of downtime prevention: thousands. Actual cost of the redundant fusing architecture: negligible.
- 10-Ampere Total Capacity on 220VAC: Roughly 2.2 kW of available power. Sufficient for 4–6 heavy-duty mag locks (1.2–1.5A each) plus 2–4 lightweight auxiliary loads (RFID readers, REX buttons, solenoids at <500mA). Know your load profile before installation; undersizing the supply after the fact requires rework.
- 220VAC Input (No Voltage Conversion Needed): Direct mains compatibility eliminates the cost, size, and failure risk of a separate voltage converter. On international sites, this is a capex and logistics win. In North America, irrelevant—specify the 110VAC sibling model (AL1012ACM).
- Lifetime Limited Warranty: Factory backing for the entire product lifespan (typically 15+ years in a controlled environment). Rare on commodity power supplies; Altronix's confidence in component quality and manufacturing is evident here.
- US Manufacturing: Built domestically, no grey-market risk, predictable supply chain. Important for integrators working in regulated environments or with clients who have sourcing policies.
Deployment Considerations:
- Load Discipline Required: 10A is a hard ceiling. A spreadsheet mapping each output's peak draw (strike type, duty cycle, reader power) is not optional. Oversized or misapplied load will trip the entire supply or blow fuses prematurely. Spend 10 minutes pre-installation; save yourself a service call.
- Fuse Replacement is Field-Accessible: When a fuse blows (typically due to a stuck mag lock or a short at the strike terminal), the replacement is straightforward—pull the fuse, swap in an identical part, verify the load, and move on. Keep spares on site; they cost pennies. This is a strength relative to integrated circuit-breaker designs that require a tech call for reset.
- Per-Channel Fuse Ratings: The datasheet specifies the fuse type and amperage for each channel. Do not substitute a larger fuse to "prevent nuisance trips." That fuse exists to protect the wiring and the strike coil. Oversizing it defeats the isolation benefit and increases fire risk.
- DIN-Rail or Wall Mounting: Verify your electrical enclosure has adequate space. The AL1024ACM220 is compact, but eight output terminals plus mains input require tidy terminal block layout. Pre-plan cable routing to avoid congestion with other gear (access control panel, network switch, UPS).
- Thermal Margin: In a hot server room or outdoor enclosure, verify that the power supply's ambient temperature limit (typically 50°C) is not exceeded. A thermal derate or auxiliary cooling may be needed in extreme environments. Datasheet thermal curves are your friend here.
The AL1024ACM220 is the right choice when you need per-door isolation, international (220VAC) compatibility, and bulletproof uptime on multi-door access control systems. If you're building a 12-door office building, a campus with distributed entry points, or a facility in Europe or the Middle East, this supply pays for itself in prevented downtime. For small, single-strike systems or North American 110VAC sites, look at the AL1012ACM or smaller Altronix models. Explore the full Altronix catalog for complementary access control power and distribution products.
